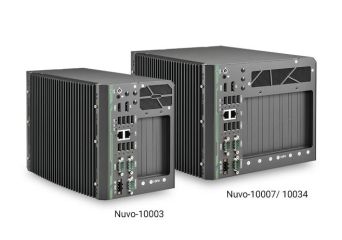

Intel 14th/ 13th/ 12th-Gen Core i9/ i7/ i5/ i3 Expansion Box-PC with up to 7 PCIe/ PCI Slots

Manufacturer: Neousys Technology
Manufacturer: Neousys Technology
  • Supports Intel® 14th/ 13th/ 12th-Gen Core™ i9/ i7/ i5/ i3, Pentium® and Celeron® LGA 1700 CPU
  • Expansion slots: Two x16 PCIe, three x8 PCIe and two x4 PCIe slots (Nuvo-10007)
  • Expansion slots: Two x16 PCIe, two x8 PCIe and three PCI slots (Nuvo-10034)
  • Expansion slots: One x16 PCIe and two x8 PCIe slots (Nuvo-10003)
  • 8x USB 3.2 Gen2 ports with screw-lock
  • 1x 2.5G and 1GbE ports with screw-lock
  • DP++ / HDMI 1.4b dual display outputs
  • 2x 2.5" SATA HDD/ SSD accommodation support RAID control
  • Supports single NVIDIA® GPU card with up to 115W TDP
Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5


Technical Specification

  Nuvo-10007 Nuvo-10034 Nuvo-10003
Processor i3/i5/i7/i9 12th/13th/14th gen.
RAM Up to 64 GB DDR5
VGA (DSub) -
DisplayPort 1
Audio Mic-in, Speaker-out
Gigabit Ethernet 2
2,5" HDD 2 (support RAID 0/ 1)
M.2 1x M.2 2280 SATA interface
miniPCIe 2x (full-size) mini PCI Express socket with internal micro SIM socket
PCI Express 2x PCIe x16 slot @Gen3, 8-lanes
3x PCIe x8 slot @Gen3, 4-lanes
2x PCIe x4 slot @Gen3, 2-lanes
2x PCIe x16 slot @Gen3, 8-lanes
2x PCIe x8 slot @Gen3, 4-lanes
1x PCIe x16 slot @Gen3,16-lanes
2x PCIe x8 slot @Gen3, 4-lanes
PCI - 3x 33MHz/ 32-bit 5V PCI slots -
USB 3.2 8
RS-232 3
RS-232/422/485 2
TPM Supports dTPM 2.0
Working temp. -25°C ~ +60°C
