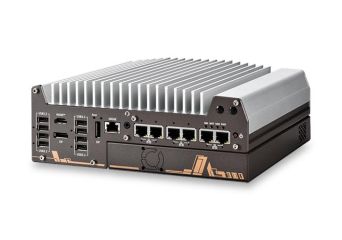

NUVO-11000
Intel Core Ultra 200 Series Fanless Embedded Computer with 2.5GbE/ GbE, USB 3.2, 8-CH DIO, optional 10GbE and Expansion Cassette & MezIO Interface
- Supports Intel Core Ultra 200 Series 24C/ 24T 35W/ 65W LGA1851 CPU
- Rugged, -25°C to 70°C fanless operation
- Up to 5x 2.5GbE and 1x GigE ports with optional PoE+, supporting 9.5 KB jumbo frame
- Up to 8x USB 3.2 Gen2 ports
- 4-CH isolated DI and 4-CH isolated DO
- 1x optional 10GBASE-T Ethernet
- Expansion Cassette for PCIe add-on card accommodation
- MezIO interface for easy function expansion
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyNUVO-11000
Description
Nuvo-11000 series is Neousys' flagship rugged embedded computer built on the Intel Core Ultra 200 series platform. Powered by TSMC's advanced 3nm photolithography, the latest Core Ultra 200 processors offer up to 24 cores/ 24 threads with higher CPU clock rates, and an integrated neural processing unit (NPU) for AI acceleration. This results in a 1.2x boost in CPU performance and AI computing capabilities of up to 36 TOPs. Combined with DDR5-6400 memory and PCIe Gen5 support, it delivers a significant improvement in computing power, enhancing performance across diverse industrial applications.
Nuvo-11000 series provides comprehensive I/O capabilities for industrial applications. It includes five 2.5Gb and a 1Gb Ethernet ports with optional PoE+ capability, one optional 10GbE port for high-speed data transfer or 10Gb industrial camera, and eight USB 3.2 Gen2 ports for USB3 cameras. Additionally, an upgraded M.2 Gen5x4 slot supports the latest NVMe SSDs, achieving read/ write speeds over 11,000 MB/s and the system also features 4x isolated DI and 4x isolated DO for automation and machine vision applications.
For extended functionality, the series supports add-on cards via its expansion Cassette, proprietary MezIO interface, and internal mini-PCIe slots, ensuring adaptability to diverse application requirements.
The advanced Intel Core Ultra 200 processors also bring better energy efficiency to the Nuvo-11000 platform. Compared to the previous generation, they can deliver nearly 120% the performance while consuming only 80% of the power*. Combining a proven thermal design with versatile I/O functions, Nuvo-11000 offers a rugged, high-performance embedded computing solution tailored for a wide range of industrial applications.
Technical Specification
NUVO-11000 | |
Processor | Intel Core Ultra 5/7/9 |
RAM | Up to 96 GB DDR5 |
AI Engine | Integrated neural processing unit |
VGA (DSub) | - |
HDMI | 1 |
Display port | 2 |
Audio | Line in, Line out |
Gigabit Ethernet | 1x 2.5 GbE and 1x GbE (Nuvo-11002E/LP) 5x 2.5 GbE and 1x GbE (Nuvo-11006E/DE/LP) 1x 10GBASE-T (optional for Nuvo-11006E/ DE/ LP) |
PoE+ | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget |
2,5" HDD | 2x internal 2.5” HDD/SSD , supporting RAID 0/1 (Nuvo-11000E/11000DE) 1x hot-swappable 2.5" HDD (7mm HDD/ SSD) and 1x internal 2.5", supporting RAID 0/1 (Nuvo-11000LP) |
Slot mSATA | - |
Slot M.2 | 1x M.2 2280 M key NVMe socket (PCIe Gen5x4) for NVMe SSD (Nuvo-11006E/DE/LP) |
PCIe | 1x PCIe x16, 16-lanes in Cassette (Nuvo-11002E/ 11006E) 2x PCIe x16, 8-lanes in Cassette (11006DE) |
mini PCIe | 2 (full-size) |
USB | 8x USB 3.2 (Nuvo-11006LP/E/DE) 2x USB 3.2, 2x USB 3.2, 4x USB 2.0 (Nuvo-11002LP/E) |
RS-232/422/485 | 2x (COM1/2) |
RS-232 | 2x 3-wire (COM3/4) |
Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
TPM | Supports dTPM 2.0 |
DC Input | 8V ~ 48V DC |
Working temp. | -25°C ~ +70°C * |
* For sub-zero and over 60°C operating temperature, a wide temperature HDD/ SSD/ NVMe is required.
