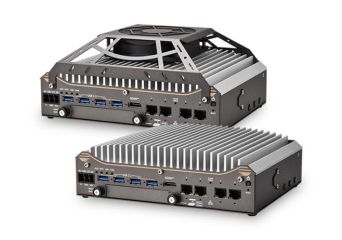

Nuvo-11531 / Nuvo-11588
Intel Core Ultra 200 Compact Fanless Computer with 4x PoE+ 2.5GbE, 4x USB 3.2, 1x Easy-Swappable 2.5” SSD Tray, and 1x External SlimSAS Connector
- 212 x 165 x 63 mm low-profile design
- Intel Core Ultra 200 series 35W/ 65W LGA1851 CPU
- Rugged, -25°C to 60°C fanless operation
- Up to 48GB DDR5 6400 memory
- 4x 2.5GbE with optional PoE+ and 4x USB3.2 Gen1 with screw-lock
- 1x M.2 2280 Gen4x4 NVMe and 1x swappable 2.5" SSD tray for storage
- 1x PCIe Gen4x8 via SlimSAS 8i (SFF-8654) connector (Nuvo-11588 only)
- 8V to 48V wide-range DC input with optional ignition power control
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyNuvo-11531 / Nuvo-11588
Description
The Nuvo-11531 is one of the most compact fanless embedded AI computers powered by the Intel Core Ultra 200 series. Its low-profile 212 x 165 x 63 mm footprint makes it ideal for constrained spaces, including robotic arms, AMRs, machine vision systems, and roadside cabinets.
Despite its compact size, the Nuvo-11531 does not compromise on performance. Leveraging TSMC’s advanced 3nm process, Intel Core Ultra 200 processors can offer nearly 120% the performance while consuming only 80% of the power*. Furthermore, with the new NPU and integrated GPU, Intel® Core™ Ultra 200 processors deliver up to 36 TOPS, enhancing AI inspection capabilities for existing rule-based computer vision algorithms.
Designed for diverse edge applications—such as machine vision, AMRs, and smart automation—the Nuvo-11531 offers versatile sensor connections. It features four PoE+ 2.5GbE ports and four USB 3.2 Gen1 ports for industrial/ security cameras or LiDAR, along with multiple isolated DIO and dual COM ports for communication with external devices. Internally, it includes one M.2 E-key slot for Wi-Fi modules and two mPCIe slots for flexible I/O expansion, supporting 5G/4G modules, COM ports, CAN bus, or additional GbE ports. For data storage, it provides an internal Gen4x4 M.2 NVMe slot for the OS and an easy-swappable 2.5” SSD tray for data logging. The wide DC input and optional ignition power control are ideal for battery-powered applications, such as robotics and in-vehicle usage. Additionally, the Nuvo-11588 variant features a SlimSAS connector with PCIe Gen4x8 bandwidth for external NVMe, U.2 storage, industrial PCIe cameras, or GPUs.
As compact embedded computers, the Nuvo-11531 and Nuvo-11588 deliver exceptional computing performance and extensive I/O connectivity. They are well-suited for various industrial and edge applications, including smart factories, autonomous logistics, smart cities, and robotics—particularly where installation space is limited.
Technical Specification
NUVO-11531 | NUVO-11588 | |
Processor | Intel Core Ultra 200 series | |
Chipset | Intel H810 | Intel Q870 |
RAM | Up to 48 GB DDR5 | |
VGA (DSub) | - | |
HDMI | 1 | |
Display port | 1 | |
Gigabit Ethernet | 4x 2.5GBASE-T Port 4 supports Wake-On-Lan |
|
PoE+ | Optional IEEE 802.3at PoE+ PSE for 4x 2.5GbE ports (100W total power budget) |
|
2,5" HDD | 1x easy-swappable 2.5" HDD/ SSD tray for 7mm HDD/ SSD | |
Slot M.2 | 1x M.2 2230 E key socket for WiFi module 1x M.2 2280 M key socket (PCIe Gen4x4) for NVMe SSD |
|
mini PCIe | 2 (full-size with internal SIM socket) | |
External PCIe Connector |
- | 1x PCIe Gen4x8 via SlimSAS 8i (SFF-8654) connector |
USB | 4x USB 3.2 (5 Gbps) 2x USB 2.0 |
|
RS-232/422/485 | 1x (COM 1) | |
RS-232 | 3x 3-wire (COM 2/3/4) or 1x RS-422/485 (COM 2) | |
Isolated DIO | 4-CH isolated DI and 4-CH isolated DO | 8-CH isolated DI and 8-CH isolated DO |
TPM | fTPM 2.0 (standard) / dTPM 2.0 (optional) | |
DC Input | 8V ~ 48V DC | |
Working temp. | -25°C ~ +60°C |
