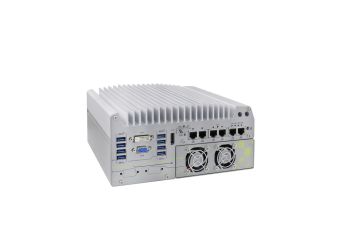

NUVO-7160GC
Ruggedized GPU Computing Edge AI platform supporting 120W NVIDIA® GPU & Intel® 9th/8th-Gen Core™ processor
- Supports NVIDIA® GPU graphics card up to 120W TDP
- Patented thermal design to allow -25°C to 60°C wide temperature range operation
- Intel® 9th/ 8th-Gen Core™ 35W/ 65W LGA1151 CPU
- 6x GigE ports, supporting 9.5 KB jumbo frame
- M.2 2280 M key socket (Gen3 x4) supporting NVMe SSD or Intel® Optane™ memory
- 4x USB 3.1 Gen2 ports and 4x USB 3.1 Gen1 ports
- Accommodates two 2.5" SATA HDD/ SSD with RAID 0/ 1 support
- Compatible with MezIO™ interface for function expansion
- Patented ventilation design* for graphics card
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
NUVO-7160GC
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNuvo-7160GCRuggedized GPU-Computing Platform Supporting 120W nVidia® GPU and Intel® 8th-Gen Core™ ProcessorIn stockWarranty: Nuvo-7160GCRuggedized GPU-Computing Platform Supporting 120W nVidia® GPU and Intel® 8th-Gen Core™ ProcessorAvailability:In stock-
Technical Specification
| Processor | Supporting Intel® 9th/ 8th-Gen CPU (LGA1151 socket, 65W/ 35W TDP) - Intel® Core™ i7-8700/ i7-8700T/ i7-9700E/ i7-9700TE - Intel® Core™ i5-8500/ i5-8500T/ i5-9500E/ i5-9500TE - Intel® Core™ i3-8100/ i3-8100T/ i3-9100E/ i3-9100TE - Intel® Pentium® G5400/ G5400T - Intel® Celeron® G4900/ G4900T |
|---|---|
| Chipset | Intel® Q370 Platform Controller Hub |
| Graphics | Integrated Intel® UHD Graphics 630 |
| Memory | Up to 64 GB DDR4 2666/ 2400 SDRAM (two SODIMM slots) |
| AMT | Supports AMT 12.0 |
| TPM | Supports TPM 2.0 |
| Ethernet Port | 6x Gigabit Ethernet ports by 1x I219 and 5x I210 |
| POE+ | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 100 W total power budget |
| USB | 4x USB 3.1 Gen2 (10 Gbps) ports 4x USB 3.1 Gen1 (5 Gbps) ports |
| Video Port | 1x VGA , supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| Serial Port | 2x software-programmable RS-232/422/485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| PCI/PCI Express | 1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette for installing an NVIDIA® graphics card up to 120W TDP (Max. graphics card dimension is 188 mm(L) x 121 mm(W), dual slot allocation) |
| Mini PCI-E | 1x full-size mini PCI Express socket with internal SIM socket (mux with mSATA) |
| M.2 | 1x M.2 2242 B key socket with dual front-accessible SIM sockets, supporting dual SIM mode with selected M.2 LTE module |
| Expandable I/O | 1x MezIO™ expansion port for Neousys MezIO™ modules |
| SATA HDD | 2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen3/ x4) for NVMe SSD or Intel® Optane™ memory installation |
| mSATA | 1x full-size mSATA port (mux with mini-PCIe) |
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input |
| Remote Ctrl. & LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Dimension | 240 mm (W) x 225 mm (D) x 111 mm (H) |
| Weight | 4.5 kg |
| Mounting | Wall-mounting |
| Operating temperature | with 35W CPU and NVIDIA® 120W GPU -25°C ~ 60°C ** with 65W CPU and NVIDIA® 120W GPU -25°C ~ 60°C */ ** (configured as 35W TDP mode) -25°C ~ 50°C */ ** (configured as 65W TDP mode) |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10% ~ 90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55024 |
* For i7-8700 running at 65W mode, the highest operating temperature shall be limited to 50°C and thermal throttling may occur when sustained full-loading applied. Users can configure CPU power in BIOS to obtain higher operating temperature.
**For sub-zero operating temperature, a wide temperature range HDD or Solid State Disk (SSD) is required.
