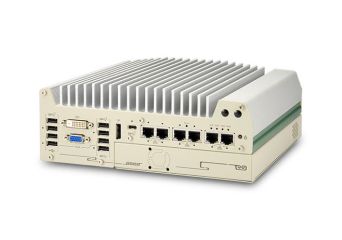

Nuvo-9000
Intel 12th and 13th-Gen Core Rugged Embedded Computer with 2 or 6 x GbE, USB 3.2 Type-C, dual-slot PCIe Cassette & MezIO Interface
- Supports Intel 12th and 13th-Gen Core 16C/ 24T 35W/ 65W CPU
- Patented Cassette for PCI/PCIe add-on card accommodation
- Rugged, -25°C to 70°C fanless operation
- Up to 5x 2.5GbE and 1x GigE ports with optional PoE+, supporting 9.5 KB jumbo frame
- 1x USB 3.2 Gen2x2 type-C and 8x USB 3.2/ 2.0 type-A ports
- Supports M.2 Gen4x4 NVMe and 2x SATA ports
- MezIO™ interface for easy function expansion
- VGA/ DVI/ DP triple independent display, supporting 4K2K resolution
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNuvo-9002EIntel® Alder Lake 12th-Gen Core™ fanless embedded controller with 2x GbE, 1-slot PCIe Cassette and MezIO interface.In stockWarranty: Nuvo-9002EIntel® Alder Lake 12th-Gen Core™ fanless embedded controller with 2x GbE, 1-slot PCIe Cassette and MezIO interface.Availability:In stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNuvo-9006ECore gen 12, 6xGigE, 6xUSB, CassetteIn stockWarranty: Nuvo-9006ECore gen 12, 6xGigE, 6xUSB, CassetteAvailability:In stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNuvo-9006E-PoECore 12gen,2LAN,4PoE, 8USB,PCIe,MezIOOut of stock Warranty: Nuvo-9006E-PoECore 12gen,2LAN,4PoE, 8USB,PCIe,MezIOAvailability: Out of stock-
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddDINRAIL-ODIN-Rail mounting assembly for Nuvo-1000/3000/5000/7000 seriesIn stockWarranty: €35.00€43.05Login to check your price DINRAIL-ODIN-Rail mounting assembly for Nuvo-1000/3000/5000/7000 seriesAvailability:In stockNet price:€35.00
Description
Nuvo-9000 series is Neousys's new rugged embedded computer based on Intel® 12th or 13th-Gen platform. Benefiting from cutting-edge Intel 7 photolithography, the latest Core™ desktop processor comes with up to 16 cores and 24 threads and presents an incredible boost of computational performance. Combining the increase of DDR5 memory bandwidth and PCIe Gen4 NVMe high-speed disk read/write, users can expect an overall system performance improvement of up to 1.8x when compared to previous 10th or 11th-Gen platforms.
Nuvo-9000 series inherits Neousys' patented expansion Cassette design to provide great versatility by allowing additional installation of PCIe or PCI add-on cards. There are three expansion Cassette options available for Nuvo-9000 series, the Nuvo-9000E features a single x16 Gen3 PCIe slot; Nuvo-9000DE has dual x16 PCIe slots, and Nuvo-9000P has a single PCI slot. For users who need more flexible storage, Nuvo-9000LP has a 2.5" HDD tray instead of an expansion Cassette to support a hotswappable 2.5" HDD/SSD.
I/O functions are also comprehensively enhanced. In addition to six gigabit Ethernet ports with PoE+ PSE option, Nuvo-9000 series features a USB 3.2 Gen2x2 type-C port offering 20 Gbps bandwidth for data exchange with external devices, plus another six USB 3.2 Gen2x1 type-A ports for USB3 camera connectivity. It also has an upgraded M.2 Gen4x4 slot to support the latest NVMe SSD to boost disk read/write speed up to 7000 MB/s. For unfulfilled I/O requirements, users can utilize the expansion Cassette to add on function-specific PCIe/ PCI card, the proprietary MezIO interface, and internal mini-PCIe/M.2 interfaces.
With its field-proven thermal design, significant CPU and I/O upgrades, and multiple expansion methods, the Neousys Nuvo-9000 series fits your need for ruggedness, performance, and versatility for a variety of applications.
Technical Specification
Nuvo-9000 (EN) | |
System core | |
Processor | Supporting Intel 12th and 13th-Gen Core CPU (LGA1700 socket, 35W/ 65W TDP) - Intel Core i9-12900E/ i9-12900TE - Intel Core i7-12700E/ i7-12700TE - Intel Core i5-12500E/ i5-12500TE - Intel Core i3-12100E/ i3-12100TE - Intel Pentium G7400E/ G7400TE - Intel Celeron G6900E/ G6900TE |
Chipset | Intel Q670E |
Graphics | Integrated Intel UHD Graphics 770 (32EU) |
Memory | Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) |
AMT | Supports Intel vPro/ AMT 16.0 |
TPM | Supports dTPM 2.0 |
I/O Interface | |
Ethernet port | 1x 2.5G Ethernet by I225 and 1x Gigabit Ethernet by I219 (Nuvo-9002E/ P/ DE) with screw-lock 5x 2.5G Ethernet by I225 and 1x Gigabit Ethernet by I219 (Nuvo-9006E/ P/ DE) with screw-lock |
PoE+ | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6 (2.5GbE) 100 W total power budget |
USB 3.2 | 1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screw-lock 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors 2x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors |
USB 2.0 | 2x USB 2.0 ports |
Video Port | 1x VGA, supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
Serial Port | 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) |
Audio | 1x 3.5 mm jack for mic-in and speaker-out |
Storage Interface | |
Sata HDD | 2x internal SATA port for 2.5” HDD/ SSD installation, supporting RAID 0/1 |
M.2 NVMe | 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD |
Expansion Bus | |
PCI/PCI Express | 1x PCIe x16 slot@Gen3, 8-lanes PCIe signals in Cassette (Nuvo-9002E/ 9006E) 2x PCIe x16 slots@Gen3, 8-lanes PCIe signals in Cassette (Nuvo-9002DE/ 9006DE) 1x PCI slot in Cassette (Nuvo-9002P/ 9006P) |
Mini PCI Express | 1x full-size mini PCI Express socket |
M.2 | 1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module |
Expandable I/O | 1x MezIO expansion port for Neousys MezIO modules |
Power Supply | |
DC Input | 1 x 3-pin pluggable terminal block for 8 to 48V DC input |
Remote Ctrl. & LED Output | 1 x 3-pin pluggable terminal block for remote control and PWR LED output (Ctrl_In/ GND/ LED_Out) |
Mechanical | |
Dimension | 240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-9000E/ P series) 240 mm (W) x 225 mm (D) x 110.5 mm (H) (Nuvo-9000DE series) |
Weight | 4.4 kg (Nuvo-9000E/ P series) TBD (Nuvo-9000DE and Nuvo-9000LP series) |
Mounting | Wall-mount (standard) or DIN-rail mount (optional) |
Environmental | |
Operating Temperature | with 35W CPU -25°C ~ 70°C * with 65W CPU -25°C ~ 70°C */** (configured as 35W TDP) -25°C ~ 50°C */** (configured as 65W TDP) |
Storage Temperature | -40°C ~ 85°C |
Humidity | 10%~90% , non-condensing |
Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
