NUVO-9160GC
Ruggedized AI Inference Platform supporting 130W NVIDIA® RTX GPU and Intel® 12th-Gen Core™ Processor
- Supports Intel® 12th-Gen Alder Lake Core™ up to 16C/ 24T 35W/ 65W CPU
- Support NVIDIA® RTX series GPU card up to 130W TDP
- -25°C to 60°C wide temperature rugged operation
- 5x 2.5GbE and 1xGbE with optional PoE+ (ports 3~6)
- 1x USB 3.2 Gen2x2 type-C and 6x USB 3.2 type-A ports
- M.2 2280 M key socket (Gen4x4) supporting NVMe SSD
- Accommodates two 2.5" SATA HDD/ SSD with RAID 0/ 1 support
- MezIO™ interface for add-on expansion
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
NUVO-9160GC
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNuvo-9160GCCore gen 12, 1xGbE, 5x2.5GbE, CassetteIn stockWarranty: Nuvo-9160GCCore gen 12, 1xGbE, 5x2.5GbE, CassetteAvailability:In stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNuvo-9160GC-PoE(EA)Core i 12/13g, 2xGbLAN, 4xPoE, PCIe X16In stockWarranty: Nuvo-9160GC-PoE(EA)Core i 12/13g, 2xGbLAN, 4xPoE, PCIe X16Availability:In stock-
Description

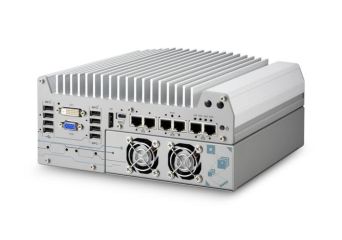

Nuvo-9160GC is a rugged edge AI computer that delivers superior CPU and GPU performance by leveraging Intel's 12th Gen platform and NVIDIA's 130W RTX GPU card.
Benefiting from the cutting-edge Intel® 7 photolithography, Intel's 12th Gen processors can offer up to 16 cores/ 24 threads with 1.8x the performance improvement compared to previous Intel 11th/ 10th Gen platforms. The latest NVIDIA® 130W RTX GPU contributes nearly 9 TFLOPS of FP32 performance to fuel real-time AI inference applications involving multiple cameras such as production line vision inspection, intelligent video analytics for surveillance or ITS, or autonomous mobile robot (AMR).
Nuvo-9160GC has a proven thermal design to guarantee reliable system operation from -25°C to 60°C. It features a passive-cooling design for the motherboard and segregated patented ventilation design* for the 130W GPU card within Neousys' patented expansion Cassette*. The support of six GigE cameras (or IP cameras) and six USB3 cameras makes Nuvo-9160GC ideal for various vision-based AI application deployments. It also provides flexible data storage options, including one M.2 2280 Gen4x4 NVMe providing up to 7000 MB/s extreme read/write speeds and two 2.5" SATA HDD/SSD to expand storage capacity.
With performance enhancements and comprehensive I/Os, Nuvo-9160GC is the perfect edge AI inference platform for industrial environments from factory automation, smart agriculture, and autonomous machines.
Technical Specification
| Processor | Supporting Intel® 12th-Gen Alder Lake Core™ CPU (LGA1700 socket, 35W/ 65W TDP) - Intel® Core™ i9-12900E/ i9-12900TE - Intel® Core™ i7-12700E/ i7-12700TE - Intel® Core™ i5-12500E/ i5-12500TE - Intel® Core™ i3-12100E/ i3-12100TE - Intel® Pentium® G7400E/ G7400TE - Intel® Celeron® G6900E/ G6900TE |
|---|---|
| Chipset | Intel® Q670E Platform Controller Hub |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU) |
| Memory | Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) |
| AMT | Supports Intel vPro/ AMT 16.0 |
| TPM | Supports dTPM 2.0 |
| Ethernet Port | 5x 2.5G Ethernet by I225-IT and 1x Gigabit Ethernet by I219-LM with screw-lock |
| USB | 1x USB 3.2 Gen2x2 (20 Gbps) port in type-C connector with screwlock 4x USB 3.2 Gen2x1 (10 Gbps) ports in type-A connectors 2x USB 3.2 Gen1x1 (5 Gbps) ports in type-A connectors 2x USB 2.0 ports |
| Video Port (Integrated Graphics) |
1x VGA connector, supporting 1920 x 1200 resolution 1x DVI-D connector, supporting 1920 x 1200 resolution 1x DisplayPort connector, supporting 4096 x 2304 resolution |
| Serial Port | 2x software-programmable RS-232/ 422/ 485 ports (COM1/COM2) 2x RS-232 ports (COM3/COM4) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| SATA HDD | 2x internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| M.2 | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD |
| PCI Express | 1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette for installing an NVIDIA® graphics card up to 130W TDP (Max. graphics card dimension is 188 mm(L) x 131 mm(W), dual slot allocation) |
| Mini PCI Express | 1x full-size mini PCI Express socket |
| M.2 | 1x M.2 3042/3052 B key socket with SIM slot for M.2 4G/ 5G module |
| Expandable I/O | 1x MezIO™ expansion port for Neousys MezIO™ modules |
| DC Input | 1x 3-pin pluggable terminal block for 8 to 48V DC input |
| Remote Ctrl. & LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Dimension | 240 mm (W) x 225 mm (D) x 110.5 mm (H) |
| Weight | 3.89 kg |
| Mounting | Wall-mount (standard) or damping bracket (optional) |
| Operating temperature | With 35W CPU and 130W GPU -25°C to 60°C** With 65W CPU and 130W GPU -25°C to 60°C**/*** (configured as 35W TDP) -25°C to 50°C**/*** (configured as 65W TDP) |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10% ~ 90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 (with optional damping bracket) (pending) |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II (with optional damping bracket) (pending) |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 (pending) |
