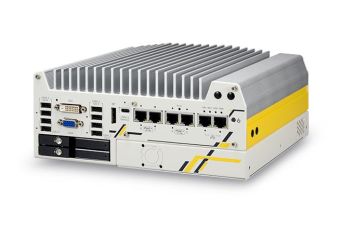

Nuvo-9200VTC
Intel 13th/12th-Gen Core in-vehicle computer with 4x M12/ 4x RJ45 / 8x RJ45 PoE+ ports, single-slot PCIe Cassette
Manufacturer: Neousys Technology
Manufacturer: Neousys Technology
- Supports Intel® 13th/12th-Gen Core™ 24C/ 32T 35W/ 65W LGA1700 CPU
- 4x or 8x 802.3at PoE+ ports via M12 or RJ45 connectors
- 1x USB 3.2 Gen2x2 type-C and 8x USB 3.2/ 2.0 type-A ports
- On-board isolated CAN bus for in-vehicle communication
- 4-CH isolated DI and 4-CH isolated DO
- M.2 Gen4 x4 NVMe SSD slot
- 2x hot-swappable SATA HDD trays, supporting RAID 0/ 1
- 8V to 48V wide-range DC input with built-in ignition power control
- Patented Cassette for PCIe add-on card accommodation
- E-Mark certified and EN 50155 EMC compliant
Nuvo-9200VTC
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNuvo-9208VTCIntel® 13th/ 12th-Gen Core™ In-Vehicle Computer with 8x RJ45 PoE+ ports, USB 3.2 Type-C, DIO, CAN bus and RAID. Patented Cassette for PCIe add-on card accommodation.Out of stock Warranty: Nuvo-9208VTCIntel® 13th/ 12th-Gen Core™ In-Vehicle Computer with 8x RJ45 PoE+ ports, USB 3.2 Type-C, DIO, CAN bus and RAID. Patented Cassette for PCIe add-on card accommodation.Availability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNuvo-9204VTCIntel® 13th/ 12th-Gen Core™ In-Vehicle Computer with 4x RJ45 PoE+ ports, USB 3.2 Type-C, DIO, CAN bus and RAID. Patented Cassette for PCIe add-on card accommodation.Out of stock Warranty: Nuvo-9204VTCIntel® 13th/ 12th-Gen Core™ In-Vehicle Computer with 4x RJ45 PoE+ ports, USB 3.2 Type-C, DIO, CAN bus and RAID. Patented Cassette for PCIe add-on card accommodation.Availability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddNuvo-9200VTCIntel® 13th/ 12th-Gen Core™ In-Vehicle Computer with 4x M12 PoE+ ports, USB 3.2 Type-C, DIO, CAN bus and RAID. Patented Cassette for PCIe add-on card accommodation.Out of stock Warranty: Nuvo-9200VTCIntel® 13th/ 12th-Gen Core™ In-Vehicle Computer with 4x M12 PoE+ ports, USB 3.2 Type-C, DIO, CAN bus and RAID. Patented Cassette for PCIe add-on card accommodation.Availability: Out of stock-
Description
Technical Specification
NUVO-9200VTC | |
Processor | Core i3/i5/i7/i9 |
RAM | Up to 64 GB DDR5 |
VGA (DSub) | 1 |
DVI-D | 1 |
HDMI | - |
Display port | 1 |
Audio | Mic in, Speaker out |
Gigabit Ethernet | 2 |
PoE+ | 4 |
2,5" HDD | 2x hot-swappable, supports RAID 0/1 |
Slot mSATA | - |
Slot M.2 | 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD 1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module 1x M.2 2242/3052 B key socket with SIM slot for M.2 4G module |
PCIe | 1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in Cassette |
mini PCIe | 1x full-size mini-PCIe socket 2x full-size mini-PCIe sockets (USB signals only) with internal SIM sockets |
USB 3.2 | 6 |
USB 2.0 | 2 |
CAN Bus | 1x isolated CAN 2.0 port |
DIO | 4-CH isolated DI and 4-CH isolated DO |
RS-232/422/485 | 2x software-programmable ports (COM1/COM2) |
RS-232 | 2x ports (COM3/COM4) |
TPM | Supports dTPM 2.0 |
Working temp. | With 35W CPU -40°C ~ 70°C (with 1 memory module installed) -40°C ~ 60°C (with 2 memory modules installed) With 65W CPU -40°C ~ 50°C (configured as 65W TDP with 2-slots memory) |
