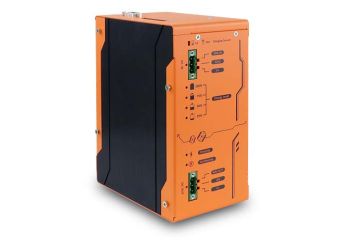

PB-4600J-SA

4600 w.s Standalone Intelligent Supercapacitor-based Uninterruptible Power Backup Module

  • Universal standalone power backup module compatible with all box-PCs
  • Supercapacitor-based, -25 to 65°C wide temperature operation
  • 4600 watt-second energy capacity
  • Maximum 100W output power for the connected back-end system
  • Over 10 years lifespan, and 500,000 charging/ discharging cycles
  • Patented CAP energy management technology*
    • Extending back-up time in the event of an unforeseen power outage
    • Monitoring energy and power consumption to extend operation time for safe system shutdown

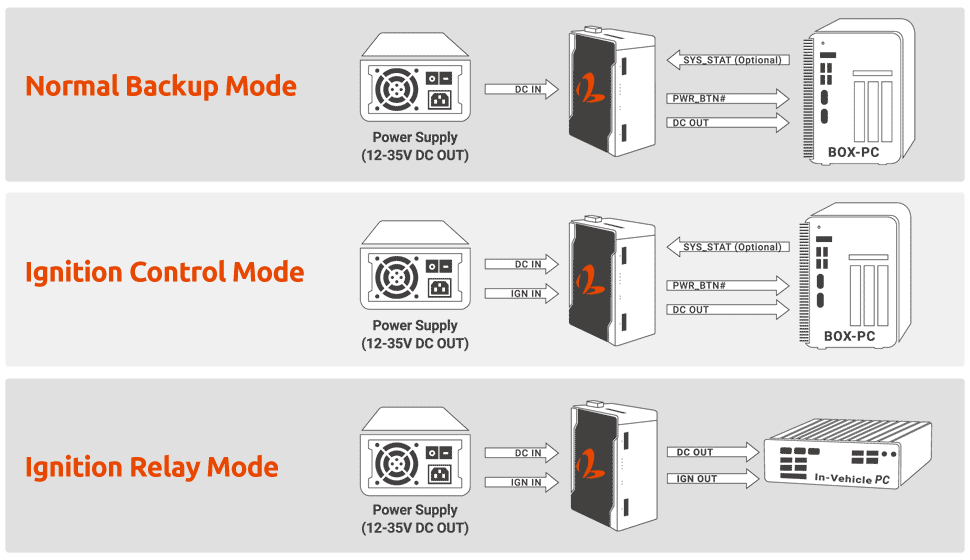

  • Versatile operating mode
    • Normal backup mode
    • Ignition control mode for standard box-PC and in-vehicle controller
  • EN50155 certificate
  • *R.O.C. Patent No. I598820
In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Product intended for professional use only
PB-4600J-SA

PB-4600J-SA

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    PB-4600J-SA
    Intelligent ultracapacitor-based power backup stand alone module with 4600 watt-second energy capacity
    In stock
    Warranty:
    €492.00
    €605.16
    Login to check your price
    PB-4600J-SA
    Intelligent ultracapacitor-based power backup stand alone module with 4600 watt-second energy capacity
    Availability:
    In stock
    Net price:
    €492.00

Description

PB-4600J-SA is a standalone power backup module that can protect your box-PC against power outages. Utilizing state-of-the-art supercapacitor technology, it can operate in harsh environments from -25 to 65°C, and have extremely high durability lasting over 10 years.

PB-4600J-SA is composed of four 370F/ 3.0V supercapacitors, which offers much longer lifespan than its 2.7V counterpart, and stores 4600 watt-second energy to offer extra extended operation time to backup your system. Thanks to Neousys' patented CAP energy management technology, It can reliably supply 100W power to the back-end system and automatically manage boot and shutdown without installing additional drivers/ software. In addition to UPS-like power backup mode, it also offers two advanced ignition control modes for in-vehicle usage. PB-4600J-SA can work with either standard box-PC or in-vehicle controller to provide stable power supply and execute user-configurable power-on/ power-off delay according to IGN signal input.

Featuring various modes, automatic shutdown control and up to 100W output power, PB-4600J-SA can work with most off-the-shelf box-PCs. And with properties such as maintenance-free energy storage and uninterruptible power supply, PB-4600J-SA can prevent the connected back-end system from data loss during power outage in harsh industrial environments!
