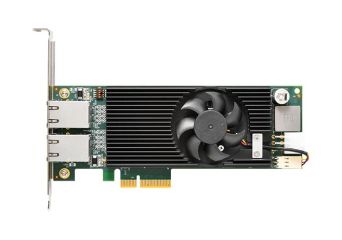

PCIe-PoE572bt / PCIe-N572
Wide-temp 2-port 10GBASE-T Network Adapter with IEEE 802.3bt PoE++ supporting RDMA (RoCEv2) frame grabber card
- Two 10GBASE-T with RDMA over Converged Ethernet (RoCEv2) by Broadcom 57416 controller
- Compliant with IEEE 802.3bt PoE++ to deliver 90W each port (total 180W)
- Rugged, -25°C to 70°C operation
- Single-slot low-profile/ standard-height PCIe card form factor
- Gen3 x4 PCIe interface
- Per-port PoE++ power on/off control via API
- Supports 10GbE with CAT 6a cable (Max. 100 meters)
- Supports up to 9.6KB Jumbo frames
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
PCIe-PoE572bt / PCIe-N572
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPCIe-N5722-port 5GBASE-T Ethernet frame grabber cardOut of stock Warranty: PCIe-N5722-port 5GBASE-T Ethernet frame grabber cardAvailability: Out of stock- -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPCIe-PoE572bt4-port 5GBASE-T Ethernet 802.3at PoE+ frame grabber cardOut of stock Warranty: PCIe-PoE572bt4-port 5GBASE-T Ethernet 802.3at PoE+ frame grabber cardAvailability: Out of stock-
Description
The PCIe-PoE572bt is a rugged, wide-temperature dual-port 10G network adapter equipped with Remote Direct Memory Access (RDMA) and IEEE 802.3bt PoE++ support. Powered by the Broadcom® BCM57416 Ethernet controller, it supports jumbo frames up to 9.6 KB, making it ideal for applications such as RDMA-enabled cameras and outdoor Wi-Fi access points (APs).
As demand for 10 GigE industrial cameras grows in machine vision, traditional systems often suffer from high CPU usage due to packet handling and error checking. The PCIe-PoE572bt addresses this challenge with RDMA technology, reducing CPU usage by up to 90% compared to TCP/UDP protocols. RDMA enables direct, zero-copy data transfer to the host PC's memory, bypassing the CPU and operating system to free up computing resources for critical tasks like image processing algorithms.
The adapter also supports IEEE 802.3bt PoE++, providing up to 90W per port to power high-consumption PoE devices. Its -25 to 70°C wide operating temperature range ensures reliable performance in harsh environments, making it an excellent choice for powering PTZ cameras and outdoor Wi-Fi APs, which frequently require more than 30W and are exposed to outdoor conditions.
For enhanced flexibility, the PCIe-PoE572bt comes in a low-profile form factor, with a non-PoE version (PCIe-N572) available for applications not requiring PoE. As the first wide-temperature 10GbE RDMA frame grabber card with PoE++ support, the PCIe-PoE572bt delivers unparalleled performance and efficiency for machine vision, outdoor surveillance, and Wi-Fi infrastructure.
Technical Specification
| PCIe-PoE572bt | PCIe-N572 | |
| Bus Interface | x4, Gen3 PCI Express* | |
| # of 10GbE Port | 2x 10 GbE ports by Broadcom 57416 controller, supporting 9.6 KB jumbo frame | |
| Network Protocol Support | IEEE 802.3 Ethernet interface for 10GBASE-T (IEEE 802.3an) and 1000BASE-T (IEEE 802.3ab) | |
| Support Link Speed | Support 10G/ 1G / 100M/ 10M link speed | |
| PoE Capability | Compliant with IEEE 802.3bt PoE++ Type 3/Type 4 PSE, with a maximum output of 90W on a single port. Compatible with 802.3bt (PoE++), 802.3at (PoE+), and 802.3af (PoE) PD. Different configurable for PoE power budgets: Configuration A: 66W from PCIe connector Configuration B: 180W from 6-pin power connector |
N/A |
| RDMA over Converge Ethernet |
Support RoCEv2 *Throughput over 9.62 Gbps (verified through IB test) |
|
| Cable Requirement | CAT 6a or better Ethernet cable (Max 100 meters) | |
| EMC | CE/FCC Class B, according to EN 55032 & EN 55035 | |
| Operating Temperature* | -25°C to 70°C rugged operation with airflow | -25°C to 70°C fanless operation with airflow |
| Dimension | Low-Profile bracket: 167.65 mm (W) x 68.9 mm (H) Standard-Height bracket: 167.65 mm (W) x 111.2 mm (H) |
|
