AMD® EPYC™ 7003 “MILAN” Series Rugged HPC Server Supporting NVIDIA® RTX A6000/ A4500, 2x 10G and 4x 1G Ethernet and 8~48V DC Input

Manufacturer: Neousys Technology
Manufacturer: Neousys Technology
  • Powered by AMD® EPYC™ 7003 series processors, supporting up to 64-core/ 128-thread
  • Supports one NVIDIA® RTX A6000/ A4500 with proprietary heat dissipation
  • Rugged -25°C to 60°C operation for edge applications
  • 2x 10G Ethernet by Intel® X550-AT2 and 4x GbE by Intel® I350-AM4
  • Supports 4x DDR4 RDIMM/ LRDIMM up to 512GB of memory
  • Compact 2U 19" rack-mount enclosure with only 350mm depth
  • Four easy-swappable 2.5” SATA trays for 7mm HDD/ SSD
  • 8~48V wide-range DC input with built-in ignition power control




Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5

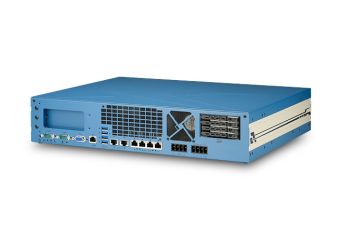

Imagine an HPC server unleashed from an air-conditioned data center room, roaming freely in the field! RGS-8805GC is just that, a rugged HPC server powered by the AMD EPYC™ 7003 series "MILAN" processor with up to 64-core/ 128-thread unparalleled computing power and 512GB memory capacity. Utilizing a unique partitioned enclosure design, it provides a highly effective airflow for CPU and other components to guarantee a reliable -25°C to 60°C operation for field deployment.

To fuel versatile advanced edge AI applications, RGS-8805GC can host one high-end NVIDIA® RTX A6000 or A4500 GPU which provides up to 38.7 TFLOPS FP32 or 309.7 TFLOPS tensor performance. It comes with a unique enclosure design that creates a sealed tunnel to efficiently dissipate the heat generated from the RTX GPU. RGS-8805GC offers an exceptional balance of CPU and GPU for modern edge AI applications, such as autonomous driving, DL-based vision inspection, and intelligent video analytics.

In terms of I/O connectivity, RGS-8805GC has two 10G Ethernet ports for high-speed data transmission that are backward compatible with 5GBASE-T and 2.5GBASE-T to work with NBASE-T industrial cameras; it has another four Gigabit PoE+ and four USB 3.1 Gen1 ports for connecting additional devices; and four easy-swappable 2.5" HDD trays for data storage. If that’s not enough, RGS-8805 provides two x16 PCIe slots for installing additional I/O cards such as frame grabber or GMSL image capture cards. Not to mention that RGS-8805GC is one of few HPC servers that accept wide-range DC input, helping it to adapt to versatile deployment environments.

RGS-8805GC addresses the challenge of deploying a CPU/ GPU server to the field, where installation space, operating temperature, and power supply are some of the most commonly faced issues. A rugged HPC system that can be installed outside of an air-conditioned environment and capable of operating in harsh environments opens the door to new AI-assisted edge computing for more advanced telecom infrastructure, factory automation, ADAS, and V2X applications.


Technical Specification

Processor AMD® EPYC™ 7003 "Milan" series server CPU, up to 64-core/ 128-thread
Graphics Integrated graphics in ASPEED AST2500 BMC, supporting 1920x1200 resolution
Memory 4x RDIMM/ LRDIMM slots, supporting up to 512GB DDR4-3200
TPM Supports TPM 2.0
10G Ethernet 2x 10GBASE-T ports by Intel® X550-AT2, supporting NBASE-T (5G/ 2.5G)
Gigabit Ethernet 4x GbE ports by Intel I350-AM4
PoE+ IEEE 802.3at PoE+ PSE capability on 4x GbE ports
Video Port 1x VGA port via ASPEED AST2500 BMC
USB 4x USB 3.2 Gen1 (5 Gbps) ports
Serial Port 2x software-programmable RS-232/ 422/ 485 ports
SATA 4x easy-swappable HDD trays for 2.5" HDD/ SSD installation
M.2 1x M.2 2280 M key socket (PCIe Gen4 x4) for NVMe SSD
PCI Express 1x PCIe x16 slot@Gen4, 16-lanes for RTX A6000/ A4500 installation
2x PCIe x16 slots@Gen4, 8-lanes
M.2 1x M.2 3042/ 3052 B key with dual micro-SIM sockets for 4G/ 5G module
mini-PCIe 2x full-size mini PCI Express sockets with USIM support
DC Input 2x 4-pin 7.62mm pitch pluggable terminal block for 8 to 48V DC input and ignition control input
Dimension 444.4 mm (W) x 350 mm (D) x 88.1 mm (H)
Weight 8.6 Kg(incl. CPU & RDIMM)
Mounting Wall-mount with damping brackets (standard)
Rack-mount (optional)
Operating Temperature -25°C ~ 60°C with 100% CPU/ GPU loading */**
Storage Temperature -40°C ~ 85°C
Humidity 10%~90% , non-condensing
Vibration Operating, MIL-STD-810G, Method 514.6, Category 4
Shock Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II
EMC CE/ FCC Class A, according to EN 55032 & EN 55035
