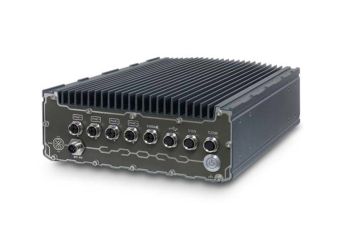

SEMIL-1700

Half-rack IP67 Waterproof Computer Supporting Intel® Xeon® E or 9th/ 8th-Gen Core™ Processor with All M12 Connectors

Manufacturer: Neousys Technology
Manufacturer: Neousys Technology
  • Intel® Xeon® E or 9th/ 8th-Gen Core™ i7/ i5/ i3 CPU
  • Extremely rugged, IP67-rated waterproof and dustproof
  • -40°C to 70°C wide-temperature fanless operation
  • 2U 19" half-rack form-factor for rack or wall-mount
  • Up to 8x 802.3at Gigabit PoE+ ports via M12 X-coded connectors
  • VGA, USB 2.0 and COM ports via M12 A-coded connectors
  • Patented SuperCAP-based uninterruptible power backup* (SEMIL-1710J)
  • 8V to 48V wide-range DC input with built-in ignition power control
  • MIL-STD-810G and EN 50155 certified
Product out of stock

Free shipping from €300

See 4 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    SEMIL-1704
    Xeon/Core gen 9/8, 4xPoE+, HR, IP67
    Out of stock Warranty:
    SEMIL-1704
    Xeon/Core gen 9/8, 4xPoE+, HR, IP67
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    SEMIL-1708
    Xeon/Core gen 9/8, 8xPoE+, HR, IP67
    Out of stock Warranty:
    SEMIL-1708
    Xeon/Core gen 9/8, 8xPoE+, HR, IP67
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    SEMIL-1714J
    Xeon/Core gen 9/8,4xPoE+,HR,UPS,IP67
    Out of stock Warranty:
    SEMIL-1714J
    Xeon/Core gen 9/8,4xPoE+,HR,UPS,IP67
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    SEMIL-1718J
    Xeon/Core gen 9/8,8xPoE+,HR,UPS,IP67
    Out of stock Warranty:
    SEMIL-1718J
    Xeon/Core gen 9/8,8xPoE+,HR,UPS,IP67
    Availability: Out of stock
    -

Description

SEMIL-1700 series is an extremely rugged 2U half-rack computer with an IP67-rated waterproof and dustproof design. Powered by Intel® Xeon® E or 9th/ 8th-Gen Core™ CPU and coupled with workstation-grade Intel® C246 chipset, it can support up to 64 GB ECC/ non-ECC DDR4 memory. The 2U half-rack form-factor SEMIL-1700 series incorporates Neousys' best-in-class thermal design and offers mounting flexibility where you can wall or rack-mount up to two SEMILs side by side.

SEMIL-1700 adopts a corrosion-proof chassis made of stainless steel and aluminum to counteract against moisture and salinity. Offering a variety of I/O connectivities that utilize M12 connectors to guarantee extremely rugged connections in shock and vibration environments, it has up to eight 802.3at PoE+ ports to supply 25W of power to connected devices. Internal expansion wise, it has an M.2 M-key socket to support NVMe SSD and mini-PCIe sockets for extending feature sets. Additionally, SEMIL-1700 features two 2.5" SATA SDD/ HDD accommodation, 8-48V wide-range DC input with ignition power control and complies with MIL-STD-810G and EN 50155.

To top it off, SEMIL-1710J is equipped with Neousys' innovative SuperCAP-based UPS* containing 2500 watt-second stored energy to sustain or safely shut down the system during unforeseen power outages. Protected against water, dust, high/ low temperature, shock/ vibration and power interruption, Neousys' SEMIL-1700 series is set to redefine edge application computing, where ruggedness matter.

Technical Specification

  SEMIL-1704 SEMIL-1714J SEMIL-1708 SEMIL-1718J
Processor Supporting Intel® Xeon® E and 9th/ 8th-Gen CPU (LGA1151 socket)
- Xeon E 2278GE (8C/16T) / 2278GEL (8C/16T) / 2176G (6C/12T)
- i7-9700E, i7-9700TE, i7-8700, i7-8700T
- i5-9500E, i5-9500TE, i5-8500, i5-8500T
- i3-9100E, i3-9100TE, i3-8100, i3-8100T
Chipset Intel® C246 platform controller hub
Graphics Integrated Intel® UHD Graphics 630
Memory Up to 64 GB DDR4-2666/ 2400 SDRAM (two SODIMM sockets)
AMT Supports AMT 12.0
TPM Supports TPM 2.0
PoE+ 1x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I219 (M12 X-coded)
3x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded) 7x IEEE 802.3at (25.5W) Gigabit PoE+ ports by Intel® I210 (M12 X-coded)
10 GbE Port(Build Option) Optional: 1x 10 GbE port by Intel® X550AT controller (M12 X-coded)**
Native Video Port 1x VGA (M12 A-coded), supporting 1920 x 1200 resolution
Series Port 2x 3-wires RS-232 ports COM1 & COM2 (M12 A-coded)
USB 2x USB 2.0 (M12 A-coded)
1x USB 2.0 (internal)
4x USB 2.0 (M12 A-coded)
1x USB 2.0 (internal)
Audio - 1x mic-in and speaker-out (M12 A-coded)
SATA HDD 2x Internal SATA port for 2.5" HDD/ SSD installation, supporting RAID 0/ 1
mSATA 2x full-size mSATA port (mux with mini-PCIe)
M.2 1x M.2 2280 M key socket (PCIe Gen3 x4) for NVMe SSD or Intel® Optane™ memory installation
Mini PCI-E 2x full-size mini PCI Express socket (mux with mSATA) 2x full-size mini PCI Express socket (mux with mSATA)
2x full-size mini PCI Express socket
DC Input 8V to 48V DC input (M12 S-coded)
Ignition Control Built-in ignition power control (IGN/ GND signal via M12 serial port connector)
Capacity - 2500 watt-second - 2500 watt-second
Dimension 220mm (W) x 310mm (D) x 90.5mm (H)
Weight 5.8 kg 6 kg 5.9 kg 6.2 kg
Mounting Rack-mounting and wall-mounting
Operating Temperature with 35W CPU
-40°C ~ 70°C ****
with >= 65W CPU
-40°C ~ 70°C ***/ **** (configured as 35W TDP mode)
-40°C ~ 50°C ***/ **** (configured as 65W TDP mode)
Storage Temperature -40°C ~85°C
Humidity 10%~90% , non-condensing
Vibration MIL-STD-810G, Method 514.7, Category 4
Shock MIL-STD-810G, Method 516.7, Procedure I
EMC EN-50155, CE/FCC Class A, according to EN 55032 & EN 55024
