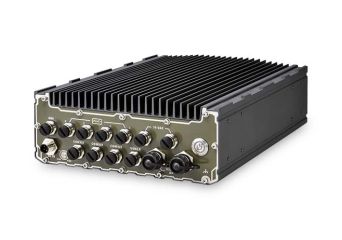

19"/2 rack mount IP69K waterproof computer supporting Intel 14th / 13th/ 12th-Gen Core processor with 2x M12 10GbE and 4x M12 PoE+ ports

Manufacturer: Neousys Technology
Manufacturer: Neousys Technology
  • IP69K waterproof computer
  • -40°C to 70°C wide-temperature fanless operation
  • 2x 10GbE, 1x GbE, and 4x 2.5GbE PoE+ via M12 X-coded connectors
  • 2x SocketCAN and 2x USB3.2 Gen1 Type-C w/ DP alternative mode
  • 8 to 48V wide-range DC input with reverse polarity protection and built-in ignition power control
  • MIL-STD-810H compliant
Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5


Technical Specification

Processor i3/i5/i7 12th/13th gen.
RAM Up to 64 GB DDR5
VGA (DSub) -
DisplayPort 2x Type-C USB connector supporting DP output (shared USB3.2)
Audio -
Gigabit Ethernet 2x 10GbE (with WoL) (M12 X-coded)
4x 2.5GbE (PoE+) (M12 X-coded)
1x GbE (with WoL) (M12 X-coded)
2,5" HDD 2x (supporting RAID 0/ 1)
M.2 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD
1x M.2 2242/3052 B key socket with dual SIM slot for M.2 5G/ 4G module
1x M.2 2230 E key socket for Wi-Fi
USB 3.2 2x Type-C (shared DisplayPort)
USB 2.0 2x USB (M12 A-coded)
RS-232 2x isolated 3-wire (COM1/ COM2)
1x isolated 3-wire (COM3)
RS-422/485 1x port (COM4)
miniPCIe 3x full-size with SIM slot
CAN Bus 2x isolated CAN 2.0 port
TPM Supports dTPM 2.0
Working temp. -40°C to 70°C
