Thermal camera operated with voice commands
If placed an order by 3 p.m., the package will be shipped the same day In stock
|
This product is available for Registered RealWear Partners only. To purchase, kindly reach out to our sales team. |
Manufacturer: RealWear
- Full-color HD micro-OLED display
- Fixed Double-camera: 50MP, 8MP wide-angle
- Live stream video between various locations
- IP54, 1-meter drop resistant
- Weighing just 179 g.
- Temperature Operating from -20°C to 45°C
- Recording video session for later reference
- Share screen
- Group Collaboration
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddArc3_127033RealWear Arc 3, EVA Case, USB-C cableIn stockWarranty: €2,350.00€2,890.50Login to check your price Arc3_127033RealWear Arc 3, EVA Case, USB-C cableAvailability:In stockNet price:€2,350.00
Description
THE NEXT GENERATION INDUSTRIAL STRENGHT ASSISTED REALITY SOLUTION

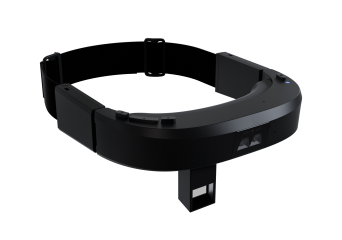

RealWear Arc 3
The RealWear Arc 3 features a see-through display that delivers sharp, detailed visuals while keeping users fully aware of their real-world environment.
Weighing 179 grams and equipped with a new dual-camera system, it is built for productivity with safety at its core.
See-through display
With Micro-OLED Full HD see-through its monocular display offering double-retina resolution, RealWear Arc 3 delivers crystal-clear detail and colors. It’s designed to help workers stay productive, aware of their surroundings, and in control of every task.
Dual Cameras
RealWear Arc 3 is equipped with two forward-facing cameras for excellent image capture: a wide-angle lens for broader scenes, a zoom lens for close-up detail, and a built-in flashlight to handle low-light conditions.
Comfortable
The wide eyebox makes it easy to find a natural viewing position in seconds. The device works with prescription glasses and Peltor-style headsets, while its modular design lets you quickly remove straps and padding to adjust comfort and fit.
Always ready with Arc Base
In combination with the Arc Base, the RealWear Arc 3 is always fully charged and ready to go in all situations.
The Arc Base can be placed on a shelf or mounted to a wall, allowing the Arc 3 to be ready when needed.
Basic parameters
| CPU |
Snapdragon™ 662 |
Water and Dust Resistance | IP54 |
| Display |
Micro-OLED, Full HD (1920x1080), DCI-P3, 22° FOV |
Connectivity |
Wi-Fi 802.11a/b/g/n/ac, Bluetooth 5.1 |
| Battery |
2000mAh, non-hot swappable |
Certificates | IP54, 1-meter drop |
| SSD |
64GB internal storage |
Operating Temparature |
-20°C to +45°C |
| Drops | 1m drop resistant | Warranty | 12 months |
Technical Specification
- RealWear Arc 3 Technical Data
| General | |
| Operating System | Ari OS 2.0 (Android 13 based) |
| Chipset | Snapdragon 662 |
| Memory | 64GB/ 4GB RAM |
| Weight & Dimensions: | 179 grams/ 155 x 68 x 64 mm |
| Materials | LEXAN™ EXL9330 |
| Model name | A31G |
| Ports | USB Type-C |
| Temperature, Humidity | -20°C to 45°C/ Humidity: 10% to 80% (non-condensing) |
| Languages & Dialects Supported |
Chinese (Cantonese, Mandarin-Simplified and Traditional), Czech, Danish, Dutch, English (American, Australian, British, Indian), French, German, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Ukrainian, Spanish, Turkey, Thai |
| Sign-in Options | Companion App, Voice Keyboard with secure mode, Everykey |
| Display | |
| Display Technology | Micro-OLED, Full-Color/ DCI-P3, 95% |
| Resolution | Full HD, 1920x1080 SPR, 1080p monocular |
| FOV | 22° |
| See Through | Yes |
| Connectivity & Sensors | |
| Bluetooth | Bluetooth 5.1 (BLE + standard) |
| Wi-Fi | 802.11 a/b/g/n/ac - 2.4 GHz and 5GHz |
| Sensors | 3‑axis gyroscope and a 3‑axis accelerometer/ Barometer/ 3-Axis Magnetometer/Ambient light sensor/wear detection sensor/capacitive touchpad / Awareness Sensor 160° FOV, 2MP, B&W |
| Battery | |
| Capacity | 2000mAh/Lithium-polymer/Rechargeable/3.8V |
| Security | |
| Security | Qualcomm® Trusted Execution Environment, Crypto Engine, Secure Boot |
| Audio | |
| Microphone Count | 4 digital microphones with active noise cancellation. Accurate voice recognition in noise up to 100 dBA. |
| Technology | Noise reduction and echo cancellation |
| Speaker | Internal 85dbA loudspeaker on both sides. |
| Camera | |
| Wide-Angle Camera | OmniVision OV8856 — 120° FOV, 8 MP |
| Main Camera | Sony IMX882 — 82° FOV, 50 MP |
| Video Capabilities | 4K at 30fps, 1080p at 120fps |
| Supported Codecs | h264, hevc, mpeg4-sw, vp8, vp9, vc1, div4/5/6-sw, h263-sw, mpeg2 |
| Accessories | |
| Included | Headband, USB Type-C cable, Padding, Quick Start Guide, Protective EVA Case |
| Cloud Services | |
| Ari Cloud | Accelerates centralized deployment and managment of devices |
| Operating Environment | |
| Supported Eye Use | Right |
| Compatible With | Prescription/safety glasses, in-ear & over-ear hearing protection, in-ear & over-ear Bluetooth headphones |
