FLEX-DRIVE
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddF-D MSE-408Flex stepper drive (24/48V - 4A), EtherCAT, plastic boxOut of stock Warranty: €345.00€424.35Login to check your price F-D MSE-408Flex stepper drive (24/48V - 4A), EtherCAT, plastic boxAvailability: Out of stockNet price:€345.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddF-D MSB-204Flex stepper drive (24/48V - 2.5A), EtherCAT, plastic boxOut of stock Warranty: €296.00€364.08Login to check your price F-D MSB-204Flex stepper drive (24/48V - 2.5A), EtherCAT, plastic boxAvailability: Out of stockNet price:€296.00
Description

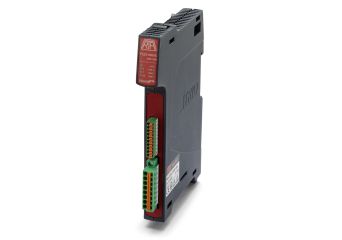

FLEX-DRIVE is an ultra-slim EtherCAT stepping motor drive, that perfectly fits the TRIO MOTION Flexslice architecture, creating a powerful multi-axis modular system.
Highlights:
- Coupling with stepping motors up to Nema 24 (60 mm) with encoder feedback.
- Mode of operation: PP, CSP, CSV, Homing
- One configurable fast capture input, suitable for Touch Probe, proximity or free use.
- Easy setup: no need of programming software; all settings are made through EtherCAT network.
- Separated power supply for logic circuit and motor power.
EtherCAT interface:
- Wide range of motor phase current setting.
- Motor current overboost.
- Intelligent management of the current profile.
- Communication by means of EtherCAT (CoE) interface.
- Modes of operation: PROFILE POSITION, CSP, CSV and Homing.
- Different variety of HOMING operation modes.
- Encoder feedback.
Technical Specification
| Voltage | 24-48 VDC |
| Current (A) | 4 |
| Type | EtherCAT |
| Dimensions (mm) | 147 x 17 x 107 |
| Connector | plug-in |
| Functions |
Electronic damping facility for further acoustic noise and mechanic vibrations reduction. |
| Protections |
Protection against under-voltage and over-voltage. |
| Warranty |
24 months |
