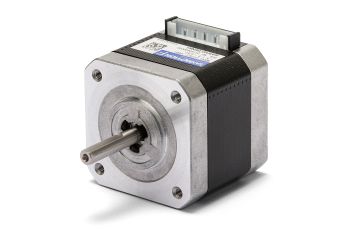

RH 1S1M

Industrial stepper motor

Manufacturer: RTA
Manufacturer: RTA
  • holding torque 43 Ncm,
  • bipolar current 1 A,
  • flange size 42 mm,
  • IP40
Price from €31.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    RH 1S1M
    RH-series stepper motor, 43Ncm, flange 42mm, 1A, IP40
    In stock
    Warranty:
    €31.00
    €38.13
    Login to check your price
    RH 1S1M
    RH-series stepper motor, 43Ncm, flange 42mm, 1A, IP40
    Availability:
    In stock
    Net price:
    €31.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    RH 1S1M-0HE0
    RH-series stepper motor, 43Ncm, flange 42mm, 1A, IP40, incremental encoder 4000CPR
    Out of stock Warranty:
    €184.00
    €226.32
    Login to check your price
    RH 1S1M-0HE0
    RH-series stepper motor, 43Ncm, flange 42mm, 1A, IP40, incremental encoder 4000CPR
    Availability: Out of stock
    Net price:
    €184.00

Accessories

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    CVEPAZD02M
    2m Encoder Cable for RH-series stepper motor
    In stock
    Warranty:
    €27.00
    €33.21
    Login to check your price
    CVEPAZD02M
    2m Encoder Cable for RH-series stepper motor
    Availability:
    In stock
    Net price:
    €27.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    CVEPAZD03M
    3m Encoder Cable for RH-series stepper motor
    Out of stock Warranty:
    €28.00
    €34.44
    Login to check your price
    CVEPAZD03M
    3m Encoder Cable for RH-series stepper motor
    Availability: Out of stock
    Net price:
    €28.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    CVEPAZD05M
    5m Encoder Cable for RH-series stepper motor
    Out of stock Warranty:
    €36.00
    €44.28
    Login to check your price
    CVEPAZD05M
    5m Encoder Cable for RH-series stepper motor
    Availability: Out of stock
    Net price:
    €36.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    CVEPAZD0M3
    30cm Encoder Cable for RH-series stepper motor
    In stock
    Warranty:
    €22.00
    €27.06
    Login to check your price
    CVEPAZD0M3
    30cm Encoder Cable for RH-series stepper motor
    Availability:
    In stock
    Net price:
    €22.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    CVEPAZD10M
    10m Encoder Cable for RH-series stepper motor
    Out of stock Warranty:
    €57.00
    €70.11
    Login to check your price
    CVEPAZD10M
    10m Encoder Cable for RH-series stepper motor
    Availability: Out of stock
    Net price:
    €57.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    CVMRH1S02M
    2m Power Cable for RH-series stepper motor
    In stock
    Warranty:
    €16.00
    €19.68
    Login to check your price
    CVMRH1S02M
    2m Power Cable for RH-series stepper motor
    Availability:
    In stock
    Net price:
    €16.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    CVMRH1S0M3
    30cm Power Cable for RH-series stepper motor
    In stock
    Warranty:
    €14.00
    €17.22
    Login to check your price
    CVMRH1S0M3
    30cm Power Cable for RH-series stepper motor
    Availability:
    In stock
    Net price:
    €14.00

Description

RH 1S1M motor is characterized by flange size 42 mm. ( NEMA 17 ) with holding torque up to 43 Ncm. Equipped with JST connector, it offers high torque with low vibrations and heating. Suggested R.T.A. driver: BSD series, CSD/CSDJ series/ A-CSD series, NDC/ A-NDC series.

Technical Specification

  • Stepper motor
Basic step angle (°) 1,8 ± 0,09
Bipolar current (A) 1
Resistance (Om) 4,6
Inductance (mH) 9,6
Bipolar holding torque (Ncm) 43
Rotor inertia (kgm2 x 10-7) 46
Teoretical acceleration (rad/s2)
93500
Back E.M.F. (V/Krpm)
43
Mass (kg)
0,3
  • Encoder
Resolution 4000 cpr
Index Yes
Current consumption (mA) 85
High level output (V) 3,4 - 2,4 (Imax=20mA)
Low level output (V) 0,2 - 0,4 (Imax=20mA)
Output signal Differential
Max. frequency (kHz) 720
Power supply voltage 5 VDC ± 10%
  • Torque/speed curve
