Price from €36.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRH 1S2MRH-series stepper motor, 56Ncm, flange 42mm, 1A, IP40In stockWarranty: €36.00€44.28Login to check your price RH 1S2MRH-series stepper motor, 56Ncm, flange 42mm, 1A, IP40Availability:In stockNet price:€36.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRH 1S2M-0HE0RH-series stepper motor, 56Ncm, flange 42mm, 1A, IP40, incremental encoder 4000CPROut of stock Warranty: €190.00€233.70Login to check your price RH 1S2M-0HE0RH-series stepper motor, 56Ncm, flange 42mm, 1A, IP40, incremental encoder 4000CPRAvailability: Out of stockNet price:€190.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVEPAZD02M2m Encoder Cable for RH-series stepper motorIn stockWarranty: €27.00€33.21Login to check your price CVEPAZD02M2m Encoder Cable for RH-series stepper motorAvailability:In stockNet price:€27.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVEPAZD03M3m Encoder Cable for RH-series stepper motorOut of stock Warranty: €28.00€34.44Login to check your price CVEPAZD03M3m Encoder Cable for RH-series stepper motorAvailability: Out of stockNet price:€28.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVEPAZD05M5m Encoder Cable for RH-series stepper motorOut of stock Warranty: €36.00€44.28Login to check your price CVEPAZD05M5m Encoder Cable for RH-series stepper motorAvailability: Out of stockNet price:€36.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVEPAZD0M330cm Encoder Cable for RH-series stepper motorIn stockWarranty: €22.00€27.06Login to check your price CVEPAZD0M330cm Encoder Cable for RH-series stepper motorAvailability:In stockNet price:€22.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVEPAZD10M10m Encoder Cable for RH-series stepper motorOut of stock Warranty: €57.00€70.11Login to check your price CVEPAZD10M10m Encoder Cable for RH-series stepper motorAvailability: Out of stockNet price:€57.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVMRH1S02M2m Power Cable for RH-series stepper motorIn stockWarranty: €16.00€19.68Login to check your price CVMRH1S02M2m Power Cable for RH-series stepper motorAvailability:In stockNet price:€16.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVMRH1S0M330cm Power Cable for RH-series stepper motorIn stockWarranty: €14.00€17.22Login to check your price CVMRH1S0M330cm Power Cable for RH-series stepper motorAvailability:In stockNet price:€14.00
Description

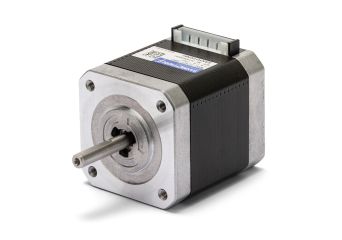

RH 1S2M motor is characterized by flange size 42 mm. ( NEMA 17 ) with holding torque up to 56 Ncm. Equipped with JST connector, it offers high torque with low vibrations and heating. Suggested R.T.A. driver: BSD series, CSD/CSDJ series/ A-CSD series, NDC/ A-NDC series.
Technical Specification
- Stepper motor
| Basic step angle (°) | 1,8 ± 0,09 |
| Bipolar current (A) | 1 |
| Resistance (Om) | 5,3 |
| Inductance (mH) | 12,5 |
| Bipolar holding torque (Ncm) | 56 |
| Rotor inertia (kgm2 x 10-7) | 63 |
| Teoretical acceleration (rad/s2) | 88900 |
| Back E.M.F. (V/Krpm) | 56 |
| Mass (kg) | 0,38 |
- Encoder
| Resolution | 4000 cpr |
| Index | Tak |
| Current consumption (mA) | 85 |
| High level output (V) | 3,4 - 2,4 (Imax=20mA) |
| Low level output (V) | 0,2 - 0,4 (Imax=20mA) |
| Output signal | Różnicowy |
| Max. frequency (kHz) | 720 |
| Power supply voltage | 5 VDC ± 10% |
- Torque/speed curve
