Price from €319.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRM 3R2MRM-series stepper motor, 700Ncm, flange 86mm, 4A, IP54Out of stock Warranty: €319.00€392.37Login to check your price RM 3R2MRM-series stepper motor, 700Ncm, flange 86mm, 4A, IP54Availability: Out of stockNet price:€319.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddRM 3T2M-0HE0RM-series stepper motor, 700Ncm, flange 86mm, 4A, IP54, incremental encoder 4000CPRIn stockWarranty: €477.00€586.71Login to check your price RM 3T2M-0HE0RM-series stepper motor, 700Ncm, flange 86mm, 4A, IP54, incremental encoder 4000CPRAvailability:In stockNet price:€477.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVERM90PM01M90 degree, 1m Encoder Cable for RM-series stepper motorIn stockWarranty: €43.00€52.89Login to check your price CVERM90PM01M90 degree, 1m Encoder Cable for RM-series stepper motorAvailability:In stockNet price:€43.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVERM90PM03M90 degree, 3m Encoder Cable for RM-series stepper motorIn stockWarranty: €50.00€61.50Login to check your price CVERM90PM03M90 degree, 3m Encoder Cable for RM-series stepper motorAvailability:In stockNet price:€50.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVERM90PM05M90 degree, 5m Encoder Cable for RM-series stepper motorOut of stock Warranty: €53.00€65.19Login to check your price CVERM90PM05M90 degree, 5m Encoder Cable for RM-series stepper motorAvailability: Out of stockNet price:€53.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVERMPM01M1m Encoder Cable for RM-series stepper motorIn stockWarranty: €43.00€52.89Login to check your price CVERMPM01M1m Encoder Cable for RM-series stepper motorAvailability:In stockNet price:€43.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVERMPM03M3m Encoder Cable for RM-series stepper motorIn stockWarranty: €50.00€61.50Login to check your price CVERMPM03M3m Encoder Cable for RM-series stepper motorAvailability:In stockNet price:€50.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVERMPM05M5m Encoder Cable for RM-series stepper motorOut of stock Warranty: €58.00€71.34Login to check your price CVERMPM05M5m Encoder Cable for RM-series stepper motorAvailability: Out of stockNet price:€58.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVERMPM10M10m Encoder Cable for RM-series stepper motorOut of stock Warranty: €72.00€88.56Login to check your price CVERMPM10M10m Encoder Cable for RM-series stepper motorAvailability: Out of stockNet price:€72.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVMRM90PM01M90 degree, 1m Power Cable for RM-series stepper motorIn stockWarranty: €37.00€45.51Login to check your price CVMRM90PM01M90 degree, 1m Power Cable for RM-series stepper motorAvailability:In stockNet price:€37.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVMRM90PM03M90 degree, 3m Power Cable for RM-series stepper motorIn stockWarranty: €49.00€60.27Login to check your price CVMRM90PM03M90 degree, 3m Power Cable for RM-series stepper motorAvailability:In stockNet price:€49.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVMRM90PM05M90 degree, 5m Power Cable for RM-series stepper motorOut of stock Warranty: €55.00€67.65Login to check your price CVMRM90PM05M90 degree, 5m Power Cable for RM-series stepper motorAvailability: Out of stockNet price:€55.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVMRM90PM10M90 degree, 10m Power Cable for RM-series stepper motorOut of stock Warranty: €79.00€97.17Login to check your price CVMRM90PM10M90 degree, 10m Power Cable for RM-series stepper motorAvailability: Out of stockNet price:€79.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVMRMPM01M1m Power Cable for RM-series stepper motorIn stockWarranty: €30.00€36.90Login to check your price CVMRMPM01M1m Power Cable for RM-series stepper motorAvailability:In stockNet price:€30.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVMRMPM03M3m Power Cable for RM-series stepper motorIn stockWarranty: €42.00€51.66Login to check your price CVMRMPM03M3m Power Cable for RM-series stepper motorAvailability:In stockNet price:€42.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVMRMPM05M5m Power Cable for RM-series stepper motorOut of stock Warranty: €55.00€67.65Login to check your price CVMRMPM05M5m Power Cable for RM-series stepper motorAvailability: Out of stockNet price:€55.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddCVMRMPM10M10m Power Cable for RM-series stepper motorOut of stock Warranty: €76.00€93.48Login to check your price CVMRMPM10M10m Power Cable for RM-series stepper motorAvailability: Out of stockNet price:€76.00
Description

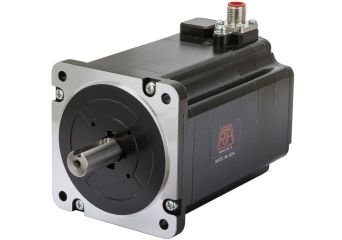

RM 3R2M motor is characterized by flange size 86 mm. with holding torque up to 700 Ncm.
Suggested R.T.A. driver: 230 VAC X-PLUS and X-MIND series.
Protection degree: IP54.
M12 connector on the motor for easy wiring.
High performance in terms of torque and power with compact size.
Coupling to drives with power supply directly from the main.
Class F insulation.
CE, UL and CSA marking.
Technical Specification
- Stepper motor
| Basic step angle (°) | 1,8 ± 0,09 |
| Bipolar current (A) | 4 |
| Resistance (Om) | 0,83 |
| Inductance (mH) | 6,4 |
| Bipolar holding torque (Ncm) | 700 |
| Rotor inertia (kgm2 x 10-7) | 3000 |
| Teoretical acceleration (rad/s2) | 23330 |
| Back E.M.F. (V/Krpm) | 175 |
| Mass (kg) | 3,1 |
- Encoder
| Resolution | 4000 cpr |
| Index | Yes |
| Current consumption (mA) | 85 |
| High level output (V) | 3,4 - 2,4 (Imax=20mA) |
| Low level output (V) | 0,2 - 0,4 (Imax=20mA) |
| Output signal | Differential |
| Max. frequency (kHz) | 720 |
| Power supply voltage | 5 VDC ± 10% |
- Torque/speed curve
