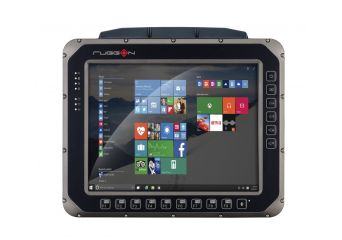

RuggON VX-601

Name: RuggON VX-601
Brand: RuggON
SKU: 86198

VMT Terminal 12.1" / IP66

Manufacturer: RuggON

The high brightness display supports auto-dimming and defroster

Extremely sturdy design to conquer tough task

Health readiness via SAE J1939

Rich I/O design for maximum utilization

Wide power input to fulfill diversified applications

Smart power management with ignition sense and backup battery

Navis Ready

Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5

Product intended for professional use only

RuggON VX-601

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
VX-601-Base 12.1"/SN/4GB/64GB/Win1oIOT	Out of stock	Warranty:		€0.00 -	-

VX-601-Base

12.1"/SN/4GB/64GB/Win1oIOT

Availability: Out of stock

Net price:

System	Intel® Core™ i5 6300U 2.4GHz, optional Intel® Celeron® 3955U 2GHz 4GB DDR3L SODIMM, expandable to 32GB M.2 2280 SSD, SD slot Built-in 3-axis G-sensor, dual speaker
Durability	IEC 60529 IP66 Vibration (operating) : MIL-STD-810G, Method 514.7 c2/c3/c4, IEC 60721-3-5 class 5M3 Shock (operating) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth Salt fog : MIL-STD-810G, Change 1, Method 509.6 Operating temperature : -30°C to +55°C (-22°F to 131°F)
Display	12.1" 1024 x 768 XGA 700 nits / 1200 nits brightness, support auto-dimming 5-wire resistive touch, support defroster function PCT by request
I/O Interface	RS-232 with power supported x 1 RS-232/422/485 x 1 USB 2.0 x1, USB 2.0/ 3.0 x 1 CAN bus (SAE J1939 supported) x 1; OBDII support by request DI x 2, DO x 2 Audio headset jack x 1 Optional video input x 4 DC-in x 1
Communications	Gigabit Ethernet (RJ45 ) Wi-Fi 802.11 a/b/g/n/ac Bluetooth V4.0 Class 2 Optional GNSS (GPS /QZSS or GLONASS) Optional 4G LTE / GPRS / HSPA+
Function Button	Programmable button x 9 Brightness adjustment button x 2 Volume adjustment button x 2 Display on / off x 1 Optional defrost / defog button x 1
Power Management	9~60 VDC input Ignition sense with delay on/off setting Wake on RTC UPS backup battery
