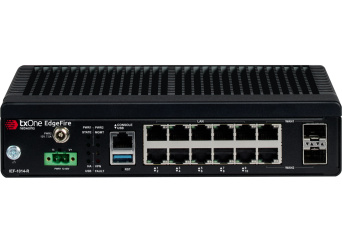

TXOne Networks | EdgeFire 1014

Efficient inline threat detection to support continuous production line operation

  • Easy on-site deployment and network segmentation
  • Works stand-alone or synergizes well with EdgeOne
  • Certified industrial-grade hardware with the compact size, power consumption, wide thermal operation range and durability tailored for OT environments and industrial cabinet design
  • Ruggedized to work well in harsh temperatures
  • Protect vulnerable unpatched devices and legacy systems
  • Signature-based virtual patching protects your assets against OT exploits
  • More features for segmentation and NAT
  • Operate with a high level of asset visibility using passive asset identification and IT/OT traffic communication within OT networks
  • Minimize downtime for patching or maintenance
  • Smooth monitoring and event log creation
  • Increase Shadow OT visibility
  • Purify OT network communication
Product out of stock

Free shipping from €300

See 8 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only
TXOne Networks | EdgeFire 1014

TXOne Networks | EdgeFire 1014

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    TXNG4RE1H0001
    [New] EdgeFire 1014-Rugged Hardware Device with 2-Year Warranty
    Out of stock Warranty:
    TXNG4RE1H0001
    [New] EdgeFire 1014-Rugged Hardware Device with 2-Year Warranty
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    TXNG4RE1H0002
    [Renew] EdgeFire 1014-Rugged 1-Year Hardware Warranty Extension
    Out of stock Warranty:
    TXNG4RE1H0002
    [Renew] EdgeFire 1014-Rugged 1-Year Hardware Warranty Extension
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    TXNG4RE1S0001
    [New] EdgeFire Std 1014-Rugged Software License
    Out of stock Warranty:
    TXNG4RE1S0001
    [New] EdgeFire Std 1014-Rugged Software License
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    TXNG4RE1S0002
    [Renew] EdgeFire Std 1014-Rugged Software License
    Out of stock Warranty:
    TXNG4RE1S0002
    [Renew] EdgeFire Std 1014-Rugged Software License
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    TXNG4CE1H0001
    [New] EdgeFire - 1014-Commercial hardware main part
    Out of stock Warranty:
    TXNG4CE1H0001
    [New] EdgeFire - 1014-Commercial hardware main part
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    TXNG4CE1H0002
    [Renew] EdgeFire - 1014 hardware warranty extension
    Out of stock Warranty:
    TXNG4CE1H0002
    [Renew] EdgeFire - 1014 hardware warranty extension
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    TXNG4CE1S0001
    [New] EdgeFire 1014-Commercial Software License
    Out of stock Warranty:
    TXNG4CE1S0001
    [New] EdgeFire 1014-Commercial Software License
    Availability: Out of stock
    -
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    TXNG4CE1S0002
    [Renew] EdgeFire 1014-Commercial Software License
    Out of stock Warranty:
    TXNG4CE1S0002
    [Renew] EdgeFire 1014-Commercial Software License
    Availability: Out of stock
    -

Description

Take control of mission-critical machines

The EdgeFire™ system is sensitive to multiple network protocols. Using them, it can create operational command trust lists that take into account operational technologies, as well as trust lists based on other parameters.



Better insight into the OT gray area

EdgeFire is equipped with tools for maximum integration and coordination of IT and OT networks. In addition, it provides better insight into the OT gray zone environment.



Centralization in a single console

Pattern updates, firmware management and resource sharing can be centralized on a large scale. For sites with multiple EdgeFire nodes, the OT Defense Console (ODC) can help administer and manage these nodes and the running EdgeIPS nodes.



Easy on-site deployment and network segmentation

When creating the EdgeFire system, we paid special attention to network segmentation. Thus, with its help, you can create easy-to-secure network zones based on the operational needs of each node without changing the existing topology.



Protection of vulnerable devices and old systems where patches are not installed

Virtual patches, which are the flagship technology of the Edge series, are network processes that protect resources that are no longer supported or cannot have patches installed for some other reason. They create a "shield" around these resources that prevents hackers from exploiting their vulnerabilities.



Maximum performance even in extreme temperatures

EdgeFire can operate in harsh environments in a temperature range of -40 to 75 degrees Celsius or -40 to 167 degrees Fahrenheit. Its mean time without failure (MTBF) is more than 700,000 hours.

Technical Specification

Feature EdgeFire 1014 Commercial EdgeFire 1014 Rugged
Model IEF-1014-TX IEF-1014-R-TX
Threat Prevention Throughput / Firewall Throughput* 850 Mbps+ (IMIX) / 1.8Gbps+ (UDP 1518 bytes)
Latency* <500 microseconds on average under mixed traffic condition
Concurrent Connection (TCP) 100,000
Intrusion Prevention / CPSDR-Networking Yes / Yes
Supported ICS Protocols Modbus / EtherNet IP / CIP / FINS / S7Comm / S7Comm+ / SECS / GEM / IEC61850-
MMS / IEC-104, with more being added regularly
Policy Enforcement Rules 512 device rules / 512 EdgeOne rules (in gateway and bridge modes)
L2 Policy Enforcement Rules 256 device rules (in bridge mode)
ICS Protocol Filter Profiles 64 profiles
Maximum Concurrent VPN Tunnels 100 site-to-site / client-to-site VPN tunnels
Supported VPN Protocols IPSec (IKEv1, IKEv2), L2TP over IPSec
IPSec VPN Throughput 200 Mbps
Form Factor DIN-rail mounting, server rack mount and wall mounting (with optional kit)
Weight (Standalone Device) 1.45 kg (3.196 lb) 2.6 kg (5.732 lb)
Dimensions (W x D x H) 210 mm x 185 mm x 42 mm
(8.26 in x 7.28 in x 1.65 in)
215 mm x 198 mm x 48 mm
(8.46 in x 7.79 in x 1.88 in)
Network Interface Type 10 x auto-sensing 10Mbps/100Mbps/1Gbps BASE-TX (RJ-45) ports /
2 x 1Gbps SFP ports and 2 x auto-sensing 10Mbps/100Mbps/1Gbps BASE-TX (RJ-45)
ports (Combo)
USB Interface 1x USB 2.0 interface (Type-A)
Management Interface (Web Console) / OOB MGMT LAN interface / Configurable
Management Console Interface RJ-45 console
Power Supply Dual power input, 1x terminal block / 1 X 12V DC in Jack standard 12V DC power
adapter
Power Input 9/12/24/48 VDC, dual redundant inputs (2 x 3 pin terminal block, shall locate in front
panel); reverse polarity protection supported. (*12V VDC recommended)
Input Current (A) 1.8/1.35/0.68/0.35A
Operating Temperature 0 to 40 ˚C (32 to 104 °F) -40 to 75 ˚C (-40 to 167 °F)
(wide temperature)
Ambient Relative Humidity 5 to 95% (non-condensing)
Storage Temperature -40 to 85 ˚C (-40 to 185 °F)
Vibration 2Gems @ IEC 60068-2-64, random wave, 5-500HZ, 1hr per axis (without any USB de
vices attached)
Mean Time Between Failure (MTBF) 700,000 hours (under 25°C)
Safety Certification CE, UL, UL60950-1
Electromagnetic Compatibility EMI: CISPR 32, FCC Part 15B Class A / EMC: EN 55032/35, VCCI Class A
Green Product RoHS, RoHS2, CRoHS, WEEE
Centralized Management Console Supports EdgeOne
