UMD-B5 0.05 kW
Manufacturer: UNITRONICS
Manufacturer: UNITRONICS
- CANOpen or EtherCAT communication
- advance axis synchronization functions
- built-in STO
- common DC bus
Price from €324.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
UMD-B5 0.05 kW
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMD-0000B-B5SERVO DRIVE 50W 200V,1phase CAN B5Out of stock Warranty: €324.00€398.52Login to check your price UMD-0000B-B5SERVO DRIVE 50W 200V,1phase CAN B5Availability: Out of stockNet price:€324.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMD-0000B-E5-SSERVO DRIVE 50W 200V,1phase ECAT,STO, E5Out of stock Warranty: €408.00€501.84Login to check your price UMD-0000B-E5-SSERVO DRIVE 50W 200V,1phase ECAT,STO, E5Availability: Out of stockNet price:€408.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPLC CANOPEN TO SERVO KITIn stockWarranty: €18.00€22.14Login to check your price PLC CANOPEN TO SERVO KITAvailability:In stockNet price:€18.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUNISTREAM CANOPEN TO SERVO KITIn stockWarranty: €30.00€36.90Login to check your price UNISTREAM CANOPEN TO SERVO KITAvailability:In stockNet price:€30.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddLine filter 10A 230VacIn stockWarranty: €21.00€25.83Login to check your price Line filter 10A 230VacAvailability:In stockNet price:€21.00
Description

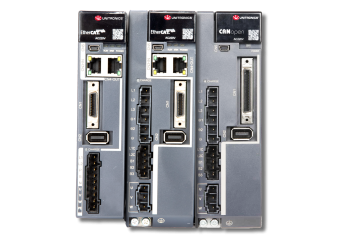

Unitronics servo drives B5 and E5-S expand functionality of previous Unitronics servo series while remaining equally easy to configure and program. The available power range of 50W to 7.5kW meets the needs of most machines. Full specification later in the description.
What makes Unitronics servo drives unique??
- Program PLC and servo drives in one UniLogic environment. This will speed up work and integration for larger industrial applications or machines.
- Automatic configuration and communication of PLC with servo drive. Just select the servo drive model and the rest of the configuration will be done by the software.
- Copy real life mechanical connections to avoid errors at the design stage and increase application safety.
- UniLogic includes a built-in, quick diagnostic tool to check servo drive performance and operating parameters in real time.
- Autotune and single-parameter adjustments optimize movement with minimal effort.
- CAM and axis synchronization (only in EtherCAT) make Unitronics servo drives suitable for the most complex applications.
New features in B5 and ES-5 servos
- Built-in STO (Safe Torque Off) - only in EtherCAT
STO is standard safety function to secure user from any failures and dangerous situation. The STO function will also ensure safe servicing of machines.
- Common DC bus
In multi-axis solutions, the use of a DC bus will save energy. Motors in machines are usually not equally loaded, so we can transfer the energy generated during braking to less loaded motors, resulting in a more even operation of the system.
- Reduction of mounting space
B5 and E5-S servo drives can be mounted side by side without leaving a gap between the side walls. Thanks to this, we can reduce the area occupied by the solution up to 25%!
- Touch probe function
Using dedicated inputs, we can use sensors or limit switches to home the servo motor, limit the position movement and perform programmed actions after moving to the sensor.
- Comprehensive protection
Extending the number of safeguards improves our safety and eliminates potential causes of servo failure.
Technical Specification
- Input power supply
| Main Circuit | 1x200~240VAC |
- Operating Conditions
| Ambient Temperature |
-5 ~ +55°C (when used on single device) -5 ~ +40°C (when multiple device are installed snugly) |
| Storage Temperature | -20 ~ +85°C |
| Ambient/Storage Humidity | 5%~95% RH (no condensation) |
| Protection class | IP20 |
| Elevation | 1000 m |
| Vibration Resistance | 4,9 m/s^2 (0,5g) |
| Impact Resistance | 19,6 m/s^2 (2g) |
| Configuration | Base mounted |
- Performance
| Coefficient of speed fluctuation |
±0,01% of rated speed max. (for a load fluctuation of 0% to 100%) 0% of rated speed max. (for a load fluctuation of ±10%) ±0.1% of rated speed max. (for a temperature fluctuation of 25±25°C) |
| Soft start time setting | 0 s to 10 s (can be set separately for acceleration and deceleration) |
- I/O Signals
| Digital Inputs CANopen |
10 (2 of them are occopied by Touch probe feature) Allowable voltage range: 24 VDC±20% |
| Digital Inputs EtherCAT |
5 (2 of them are occopied by Touch probe feature) Allowable voltage range: 24 VDC±20% |
| Digital Outputs CANopen | 4 |
| Digital Outputs EtherCAT | 3 (1 of them fixed for Servo Alarm) |
- Other
| Display | 5 bit digital tube |
| Panel operator | 4 Buttons |
| Regenerative braking |
50W ~ 400W products without built-in brake resistance Other power products have built-in brake resistance |
| Protection functions | Overcurrent, Overvoltage, Undervoltage, Overload, Regeneration Error, Overspeed, etc. |
| Utility functions | Alarm recording, JOG running, load inertia recognition, etc |
Download
