Manufacturer: UNITRONICS
High performance, cost effective VFDs, ideal for both machines & process control.
Price from €164.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €500
Promocja cenowa na model HDR-15-5

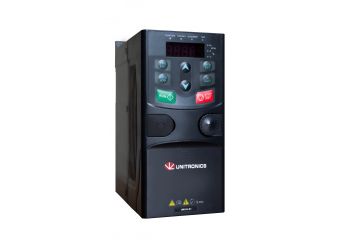

Vector Control Inverter - 0.4KW 1x230V EU
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMI-0004BE-B10.4KW 230V Single Phase EURecommended
In stockWarranty: 24 months €164.00€201.72Login to check your price
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMI-S0001UMI-B1 LCD KeypadIn stockWarranty: 24 months €32.00€39.36Login to check your price -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMI-S0004UMI-B1/B5 LED KeypadIn stockWarranty: 24 months €136.00€167.28Login to check your price -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMI-S0020UMI-B1 0.4-0.75kW 1P IN FLT C2In stockWarranty: 24 months €52.00€63.96Login to check your price -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMI-S0030UMI-B1 0.4-2.2kW 1P IN FLT C3In stockWarranty: 24 months €14.00€17.22Login to check your price -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMI-S0032UMI-B1 0.4-0.75kW 1P OUT FLT C2In stockWarranty: 24 months €94.00€115.62Login to check your price -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMI-S0050UMI 0.4kW Brk Res. 120W, 230VIn stockWarranty: 24 months €28.00€34.44Login to check your price -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMI-S0081UMI B1 Keypad BracketIn stockWarranty: 24 months €6.00€7.38Login to check your price -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMI-S0085UMI Keypad Cable 2mIn stockWarranty: 24 months €10.00€12.30Login to check your price -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMI-S0086UMI Keypad Cable 3mIn stockWarranty: 24 months €14.00€17.22Login to check your price -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMI-S0087UMI Keypad Cable 5mIn stockWarranty: 24 months €20.00€24.60Login to check your price -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMI-S0088UMI Keypad Cable 10mIn stockWarranty: 24 months €46.00€56.58Login to check your price -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMI-S0150Dam-boardIn stockWarranty: 24 months €6.00€7.38Login to check your price
Description
Unitronics VFDs can be used as a stand-alone product, or within an end-to-end solution: VFD, controller, and HMI.
This simplifies workflow by enabling you to:
- Obtain your VFDs, PLC + HMI controllers and related components, as well as technical support, from a single supplier.
- Operate your VFD directly from the controller’s HMI panel
- Use the same programming software as the PLC control and HMI application, to:
- Set-up and configure multiple VFDs in a snap
- Monitor and debug your VFD – either via UniLogic or Scope Trace
- Remotely Access your VFD via UniLogic software environment
- Effortless Communication- Simple communication based control . Ensuring your system provides robust operation & minimizing EMI effect.
- Cost Effective –
- Energy efficacy
- Reduce IO modules and cabling costs
- Short integration & development time
Features:
- EMI Filters, Built-In
- Broad range of Operating Temperatures
- Braking units – Built-in
- Heavy-Duty overload capacity, up to 200%
- Coated PCBs: minimize dust penetration damage
- RS485 Modbus RTU fieldbus, Built-in
- Sensorless control: Vector, Torque, volts per Hz
- STO (SIL3)
- Mounting options: Wall, Flange, Rail
- Optional communication and I/O extension
- UL approved, TÜV-SÜD Safety and CE Certified
Technical Specification
| Power | Input Voltage | 220-240VAC, Single Phase 380-440VAC, Three Phase |
| Input Frequency | 50/60 Hz | |
| Supported Motors | Asynchronous Induction Motors, Three Phase Input | |
| 0-400Hz | ||
| Rated Output Power kW /HP | 0.4/0.5 | |
| Rated Output current | 2.5A | |
| Rated Input current | 6.5A | |
| Overload Capacity | 150%, 60 seconds | |
| 180%, 10 seconds | ||
| 200%, 1 second | ||
| Control | Control Method | SVPWM (Space Vectror PWM) SVC (Sensorless Vector Control) |
| Control Setting | MODBUS, Analog, Digital, PID, Pulse | |
| Communication | MODBUS RTU RS-485 | |
| Keypad | Film Keypad <4kW (5HP) Removable ≥4kW (5HP) |
|
| Input | Analog Inputs | 1 input 0-10V or 0-20mA 1 input 0-10V |
| Digital Inputs | Total 5: 4 inputs 1kHz 1 input 50kHz |
|
| Output | Analog Outputs | Up to 2: 1 output 0-10V, 0-20mA ≤2.2kW/3HP, 2nd output available from >2.2kW/3HP) |
| Digital Outputs | 1 output sink/source | |
| Relay Outputs | Up to 2: 1 Programmable Multi-functional Output. 2nd output available from >2.2kW/3HP |
|
| Features | Dynamic Braking Unit | Built-in(≤37kW/50HP) |
| Optional (>37kW/50HP) | ||
| EMC | Built-in C3 (≥4kW/5HP), Comply with IEC/EN 61800-3 | |
| Optional C3 (<4kW/5HP), Comply with IEC/EN 61800-3 | ||
| Optional C2, Comply with IEC/EN 61800-3 | ||
| General | Operating Temperature | (-10)°C/14°F – 50°C/122°F (de-rated by 1% for every 1°C/2°F above 40°C/104°F) |
| Altitude | 2000m/6600 ft (de-rated by 1% for every additional 100m/330ft above 1000m/3300ft) | |
| Enclosure Rating | IP20 | |
| Mounting Options | Wall and Rail (≤2.2kW/3HP) | |
| Wall and Flange (>2.2kW/3HP) | ||
| Cooling | Air-cooling | |
| Safe Torque Off | √ | |
| Compliance | CE, TÜV-SUD Safety Mark |
