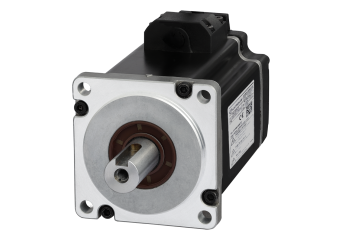

UMM-B4 0,05 kW
Manufacturer: UNITRONICS
Manufacturer: UNITRONICS
- rated torque 0,16 Nm (max. 0,48 Nm)
- rated speed 3000 RPM (max. 6000 RPM)
- Absolute 23bit encoder
- IP65
- optional brake
Price from €328.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
UMM-B4 0,05 kW
Models
Filter: ()
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMM-0000BA-B4SERVO MT 50W 200V,1 A17 B4Out of stock Warranty: €328.00€403.44Login to check your price UMM-0000BA-B4SERVO MT 50W 200V,1 A17 B4Availability: Out of stockNet price:€328.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddUMM-0000BAB-B4SERVO BRK MT 50W 200V,1 A17 B4Out of stock Warranty: €531.00€653.13Login to check your price UMM-0000BAB-B4SERVO BRK MT 50W 200V,1 A17 B4Availability: Out of stockNet price:€531.00
Description
The wide power range of Unitronics servo motors allows them to be adapted to any size of machine. However, if the application requirements are higher, we offer planetary gears (LINK) that will significantly improve the performance of servo motors. Full motor specification later in the description.
Czym wyróżniają się serwonapędy Unitronics?
- Program PLC and servo drives in one UniLogic environment. This will speed up work and integration for larger industrial applications or machines.
- Automatic configuration and communication of PLC with servo drive. Just select the servo drive model and the rest of the configuration will be done by the software.
- Copy real life mechanical connections to avoid errors at the design stage and increase application safety.
- UniLogic includes a built-in, quick diagnostic tool to check servo drive performance and operating parameters in real time.
- Autotune and single-parameter adjustments optimize movement with minimal effort.
- CAM and axis synchronization (only in EtherCAT) make Unitronics servo drives suitable for the most complex applications.
Power and encoder cables
We also need appropriate cables for the selected servo motor. The choice depends on:
- motor series (B2/B3/B4),
- usage of brake in servo (PN – power cable without brake, PB – power cable with brake),
- encoder type (FA – absolute encoder cable, FN – incremental encoder cable),
- cable type (standard /R – robotic),
- length (03 – 3 meters, 05 – 5 meters, 10 – 10 meters).
Technical Specification
| Rated Output Power (kW) | 0,05 |
| Rated Torque (Nm) | 0,16 |
| Peak Torque (Nm) | 0,48 |
| Rated Current (A) | 0,6 |
| Max. Current (A) | 1,7 |
| Rated Speed (RPM) | 3000 |
| Max. Speed (RPM) | 6000 |
| Rotor Moment of Inertia (with brake) (kg*cm^2) | 0,019 |
| Weight (kg) | 0,374 |
| Brake Rated Voltage | DC24V±10% |
| Brake Rated Power (W) | 4,0 |
| Brake Holding Torque (Nm) | 0,318 |
| Insulation class | F |
| Ambient temperature (°C) | 0~+40 |
| Ambient Humidity (RH) | 20% to 80% non-condensing |
| Enclosure | IP65 / NEMA4X |
- Torque/speed curve
