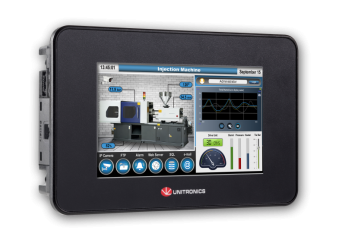

US5-B5-B1

Manufacturer: UNITRONICS

Built-in Industrial PLC
Integrated HMI 5"
Built-in I/O (Expandable)
Built-in Industrial Communication Protocols
Industrial controller working from 12VDC power supply.

Price from €631.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Accessories
Description
Technical Specification
Recommended Products

US5-B5-B1

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
US5-B5-B1 Unistream PLC+HMI B5 5" B1 No built-in I/Os	In stock	Warranty:		€644.00 €792.12 Login to check your price	Login to check your price	pcs.

US5-B5-B1

Unistream PLC+HMI B5 5" B1 No built-in I/Os

Availability:

In stock

Net price:

€644.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
US5-C5-B1 Unistream C PLC+HMI B10 5" B1 No built-in I/Os	Out of stock	Warranty:		€631.00 €776.13 Login to check your price	Login to check your price	pcs.

US5-C5-B1

Unistream C PLC+HMI B10 5" B1 No built-in I/Os

Availability: Out of stock

Net price:

€631.00

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
UAC-CX-01CAN UniStream CX Com 1xCANbus	In stock	Warranty:		€65.00 €79.95 Login to check your price	Login to check your price	pcs.

UAC-CX-01CAN

UniStream CX Com 1xCANbus

Availability:

In stock

Net price:

€65.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
UAC-CX-01RS2 UniStream CX Com 1xRS232	In stock	Warranty:		€39.00 €47.97 Login to check your price	Login to check your price	pcs.

UAC-CX-01RS2

UniStream CX Com 1xRS232

Availability:

In stock

Net price:

€39.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
UAC-CX-01RS4 UniStream CX Com 1xRS485	In stock	Warranty:		€39.00 €47.97 Login to check your price	Login to check your price	pcs.

UAC-CX-01RS4

UniStream CX Com 1xRS485

Availability:

In stock

Net price:

€39.00

Description

Industrial PLC with integrated HMI will work wherever:

you have limited space in the control cabinet.

you need an HMI panel, and you don't want two separate devices,.

you want to reduce the number of cables pulled. A large number of components (lights, buttons) are on the front panel of the machine, and at the same time you need to visualise the data for the operator.
you are looking for a compact solution with built-in inputs/outputs.

Which controller series should you choose?

UniStream PLC I/O configuration

Extension with additional I/O

If the built-in number of inputs and outputs is not sufficient, we can easily expand the controller with modules:

local

To add local I/O, use the UAG-CX I/O expansion adapters. These adapters provide a connection point for standard UniStream Uni-I/O modules.

Use these adapters to connect up to 80 I/O modules to a single PLC.

remote

up to 8 remote I/Os over Modbus TCP/IP (each adapter up to 63 remote I/O modules) and up to 8 IO-Link masters.

Communications

embedded.
- Ethernet/IP Scanner/Adapter,
- Modbus TCP/IP Client/Server,
- Self frame over TCP/IP or UDP,
- VNC Client/Server,
- SNMP v3,
- MQTT Client,
- OPC UA Server,
- BacnetIP Server,
- REST API Client,
- OCPP,
- FTP Client/Server,
- Unicloud support,
- email,
- SMS,
- SQL (version B10),
  Webserver (version B10),
extended by module.
- EtherCAT Master,
- Modbus RTU Master/Slave,
- Proprietary frame over RS232,
- Self frame over RS485,
- CANOpen Master,
  own frame over CANbus,

Programming

The Unistream series controllers are programmed in the award-winning and free UniLogic environment. In one environment:

we will program the PLC logic,
we will design the HMI visualization,
we will parameterise and diagnose inverters and servo drives,
add local modules and remote islands,
we will perform program and drive diagnostics,
we will configure the connection to UniCloud.

The software can be downloaded from the manufacturer's website: https://www.unitronicsplc.com/software-unilogic-for-programmable-controllers/

Maybe a different sized HMI?

The UniStream series integrated controllers always come in 3 different sizes:

Panel 5: US5-B5-B1 (here you are) or US5-B10-B1
Panel 7": US7-B5-B1 or US7-B10-B1
Panel 10,1": US10-B5-B1 or US10-B10-B1

Additionally, each controller supports VNC (client/server), so that to display visualization or control the machine you only need a computer or phone and the free VNC Viewer.

Cloud

The controllers, with MQTT support, can communicate with UniCloud. With it, you gain:

remote VPN and VNC access,
archiving and data analysis,
visualizations, charts, indicators,
email and SMS notifications in case of failure,
generation of reports in PDF,
real-time KPI monitoring.

Find out more here: https://tech.elmark.com.pl/uni/unicloud/O-Unicloud.html

Technical Specification

US5-B5-B1
Type of device	Controller PLC with integrated 5" HMI panel of the UniStream series

Built-in inputs and outputs
Digital inputs (isolated)	-
Speed/encoder inputs	-
Temperature inputs, RTD/TC	-
Analogue inputs	-
Transistor outputs	-
Fast outputs	-
Relay outputs	-
Analogue outputs	-
Maximum number of I/O	up to 2048 points
Additional input and output extensions
Tachable I/O modules	-
Local I/O modules	To add local I/O, use the UAG-CX I/O expansion adapters. These adapters provide a connection point for standard UniStream Uni-I/O™ modules. Up to 80 I/O modules can be connected to a single PLC using these adapters.
Remote islands	Yes, URB-TCP up to 63 modules or URB-TCP2 up to 6 modules Unitronics up to 8 IO-Link masters.

HMI display
Is it built-in?	Yes, 5 inch HMI screen
Touch screen	Resistive, analogue
Display area width x height (mm)	108 x 64.8
Mounting hole width x height (mm)	148.2 x 93.2
Resolution	800 x 480 (WVGA)
Colours	65536 (16bit)
Keyboard	Virtual

Power supply
Power supply voltage	12VDC or 24VDC
Power supply voltage range	10.2VDC to 28.8VDC
Max. Current consumption	0.7A@12VDC 0.4A@24VDC

Communication ports
Built-in	1 Ethernet port; 1 USB host port; 1 mini USB for programming
Additional	CANbus; RS485; RS232 Up to 3 modules, up to 2 serial ports
Ethernet port	10/100 Base-T (RJ45); Isolation voltage: 500 VAC for 1 minute CAT5e shielded cable, up to 100m
USB host	USB 2.0 (480Mbps), Type A, Cable length < 3m
CAN	-
Supported protocols
Built-in	Ethernet/IP Scanner/Adapter, Modbus TCP/IP Client/Server, own frame over TCP/IP or UDP, VNC Client/Server, SNMP v3, MQTT Client, OPC UA Server, BacnetIP Server, REST API Client, OCPP, FTP Client/Server, Unicloud support, email, SMS, SQL (B10 version), Webserver (B10 version),
Through an additional port	EtherCAT master, Modbus RTU master/slave, proprietary frame over RS232, proprietary frame over RS485, CANOpen master, proprietary frame over CANbus.

Memory
Built-in memory	RAM: 512MB ROM: System memory 3GB; Use memory 1GB
Tablet memory	1MB
External memory	MicroSD or microSDHC card Storage up to 32GB Speed up to 200Mbps
Battery	3V CR2032; 4 years at 25°C responsible for storing system data, variables and RTC
Environment
Degree of protection	Panel mount (front): IP66, NEMA 4X Rear: IP20, NEMA1
Operating temperature	-20°C to 55°C
Standards	UL, CE, UKCE, EAC
