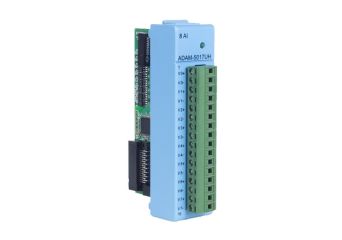

ADAM-5017UH
8-ch Ultra High Speed Analog Input Module
- Accuracy: ±0.1% or better
- Effective resolution: 12-bit
- Input range: ±10 V, +0 ~ +10 V, +0 ~ +20 mA, +4 ~ +20 mA
- Isolation voltage: 3000 VDC
- Sampling rate: 50K sample per sec (8 Channels)
- Fault and overvoltage protection: withstands overvoltage up to ±35 V
- lnput type: mV, V, mA
- Channels: 8 differential
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
ADAM-5017UH
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add4-slot Distributed DA&C System Based on RS-485Out of stock Warranty: €392.00€482.16Login to check your price 4-slot Distributed DA&C System Based on RS-485Availability: Out of stockNet price:€392.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8-slot Distributed DA&C System Based on EthernetIn stockWarranty: €507.00€623.61Login to check your price 8-slot Distributed DA&C System Based on EthernetAvailability:In stockNet price:€507.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add8-slot Distributed DA&C System Based on RS-485In stockWarranty: €534.00€656.82Login to check your price 8-slot Distributed DA&C System Based on RS-485Availability:In stockNet price:€534.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity Add4-Slot Ethernet-based Distributed DA&C SystemIn stockWarranty: €464.00€570.72Login to check your price 4-Slot Ethernet-based Distributed DA&C SystemAvailability:In stockNet price:€464.00
Description
The ADAM-5017UH is a 12-bit plus sign bit, 8-channel analog differential input module that provides programmable input ranges on each channel. It accepts millivolt inputs (± 500 mV, 0-500 mV), voltage.
- Accuracy: ±0.1% or better
- Effective resolution: 12-bit
- Input range: ±10 V, +0 ~ +10 V, +0 ~ +20 mA, +4 ~ +20 mA
- Isolation voltage: 3000 VDC
- Sampling rate: 50K sample per sec (8 Channels)
- Fault and overvoltage protection: withstands overvoltage up to ±35 V
- lnput type: mV, V, mA
- Channels: 8 differential
Download
