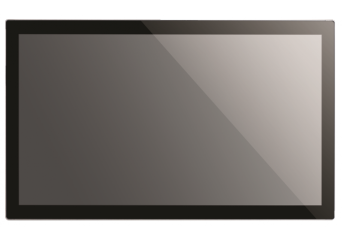

UTC-520D

21.5" Ubiquitous Touch Computer with Intel® Celeron J1900 Processor

Manufacturer: Advantech
Manufacturer: Advantech
  • Low power consumption and fanless design
  • Built-in Intel® Celeron® J1900 Processor
  • 21.5" monitor with 16:9 widescreen display
  • IP65-rated front panel for water and dust resistance
  • Aluminum frame with side groove design for flexible peripheral installation
  • Support both landscape and portrait screen orientation
  • Rich I/O and diverse peripheral options
  • VESA 100 mm standard mounting holes for varied mounting demands
  • Support Advantech WISE-PaaS/RMM
  • Support Windows, Android, and Linux operating systems
In delivery

Free shipping from €500

See 3 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    UTC-520D-GE
    21.5" Glass, with Intel Cele J1900, 4GB RAM
    Out of stock Warranty: 24 months
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    UTC-520D-PE
    21.5" PCT.T/S with Intel Cele J1900, 4GB RAM
    Out of stock Warranty: 24 months
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    UTC-520D-RE
    21.5" Res.T/S, Intel Cele J1900, 4GB RAM
    In delivery Warranty: 24 months

Accessories

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    Desktop Stand for UTC-520
    Out of stock Warranty: 24 months
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    Magnetic Stripe Card Reader for UTC-5XX (USB)
    Out of stock Warranty: 24 months
    €182.00
    €223.86
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    Smart Card Reader For UTC-5XX (USB connection)
    Out of stock Warranty: 24 months
    €127.00
    €156.21
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    UTC-Wall-Mount1e(UTC-520/515/510) Series
    Out of stock Warranty: 24 months
    €71.00
    €87.33
    Login to check your price

Description

UTC-520D features an all-in-one computing system equipped with wide format, touch based LCD panel. It is easy to integrate key peripherals and display systems for diversified self-service and interactive signage deploy in different application areas. The systems deliver updated information with well-designed interactive interfaces, fully ensure relevant content and targeted promotions are delivered. UTC series touch panel computers are the best investments to enhance user satisfaction, further brand equity, and maximize business profits.

  • Low power consumption and fanless design
  • Built-in Intel® Celeron® J1900 Processor
  • 21.5" monitor with 16:9 widescreen display
  • IP65-rated front panel for water and dust resistance
  • Aluminum frame with side groove design for flexible peripheral installation
  • Support both landscape and portrait screen orientation
  • Rich I/O and diverse peripheral options
  • VESA 100 mm standard mounting holes for varied mounting demands
  • Support Advantech WISE-PaaS/RMM
  • Support Windows, Android, and Linux operating systems

Technical Specification

CPU Intel Celeron J1900 2 GHz
4 core
Memory Up to 8 GB
Screen 21,5" TFT LCD, resolution 1920 x 1080
Optional Analog Resistive Touchscreen or Projected Capacitive Touch Panel
Front panel IP65
HDD 1 x 2,5" SATA
mSATA (shared with miniPCIe miniPCIe)
LAN 2 x Gigabit Ethernet
Ports 2 x RS-232
1 x USB 3.0
2 x USB 2.0
1 x VGA
1 x HDMI
Audio: Line-out, Mic-in
Stereo Speaker 2 x 3 W
Bus expansion 1 x miniPCIe / mSATA
Mounting VESA 100 mm
OS Support Windows 7/8
Embedded Linux
Power Supply 12 VDC, 5 A
Typical 40 W, Max. 50 W
Environmental Specifications Temperature 0 ~ 40°C
Humidity 10 ~ 95% @ 40°C non-condensing
