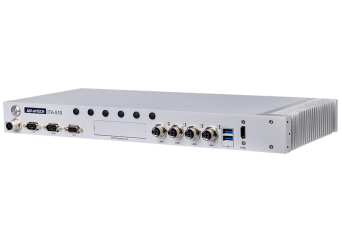

ITA-510

AI Inference System Powered by NVIDIA® Jetson Orin™ NX/ Orin™ Nano for Railway Applications

Manufacturer: Advantech
Manufacturer: Advantech
  • Computer for railway applications
  • Fanless design for AI inference
  • Built-in NVIDIA® Jetson Orin™ NX 16GB or Orin™ Nano 8GB
  • Compliant with railway standards EN 50155 OT1 and EN 50121-3-2 EMC
  • M12 connectors resistant to vibration and shock
  • Available ports: 4 x M12 GbLAN, HDMI, 2 x USB 3.0, 1 x CAN (DB9), 1 x RS-232/422/485, DIO (DB9)
  • 1 x Mini PCIe, 1 x M.2 (E-key), 1 x M.2 (M-key), and 1 x M.2 (B-key) for easy expansion
  • Pre-installed Linux Ubuntu 20.04 operating system
Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5

Description

The ITA-510 computer is a fanless industrial computer designed for AI analytics applications, particularly in intelligent transportation systems. It is equipped with an NVIDIA® Jetson Orin™ NX or Orin™ Nano module, offering advanced data processing capabilities. The system complies with railway standards EN 50155 OT1 and EN 50121-3-2 EMC, ensuring reliability in harsh industrial environments.

Example applications:

  • Behavioral analytics: detecting aggressive behavior, fall detection, suspicious movement.
  •  Vandalism detection.
  • Face recognition.
  • Object recognition (e.g., left luggage, firearms and knives, etc.).
  • People counting, analyzing train usage.
  • Smoke and fire detection.
  • Anomaly detection.



Technical Specification

Function Description
System
GPU NVIDIA® Ampere GPU
1024 NVIDIA CUDA cores and 32 Tensor cores
Up to 100 (Sparse) INT8 TOPs and 50 (Dense) INT8 TOPs
Up to 40 (Sparse) INT8 TOPs and 20 (Dense) INT8 TOPs
CPU NVIDIA® Jetson Orin™ NX: 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
NVIDIA® Jetson Orin™ Nano: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
DLA 20 TOPS each (Sparse INT8)
Memory Max. Capacity Orin NX: 16 GB 128-bit LPDDR5
Orin Nano: 8 GB 128-bit LPDDR5
External I/O
Display 1 x HDMI
CAN 1 x CAN, DB9
USB 2 x USB 3.0 type A
Serial Port 1 x RS-232/RS-422/RS-485, DB9
DI/O 1 x 8bit (4in/4out), DB9
Internal I/O (Pin Header)
OTG USB 1 x Micro USB
Serial Port 1 x RS-232/RS-422/RS-485, DB9 (optional)
Ethernet
Controller Intel® I210-IT
Interface 10/100/1000 Mbps
Connector 4 x M12 X-coded
Expansion
Mini PCIe 1 x Mini PCIe slot
M.2 1 x M.2 (B-key) 3052 for 5G/LTE
1 x M.2 (E-key) 2230 for Wi-Fi/Bluetooth
1 x M.2 (M-key) 2280 for storage
SIM 1 x Nano SIM card slot
Antenna 6
Power
Input Range 24/110VDC
Connector 1 x M12 (S-coded)
Environmental
Operating Temperature -25 ~ 55 °C / -13 ~ 131 °F
Storage Temperature -40 ~ 85 °C / -40 ~ 185 °F
Humidity 5% ~ 95% @ 40 °C / 104 °F (non-condensing)
Mechanical
Dimensions (W x H x D) 482.6 x 44 x 218.3 mm / 19 x 1.73 x 8.59 in
Mount Options 1U Rackmount
Certification
EMC CE, FCC, BSMI, CCC
Safety CE, FCC, BSMI, CCC
EN50155 Compliance Ambient Temperature -25 ~ 55 °C / -13 ~ 131 °F (EN 50155 OT1)
Shock and Vibration IEC 61373 body mount class B
Voltage Interruptions Class S2
Supply Change Over Class C1
EMC EN 50121-3-2
