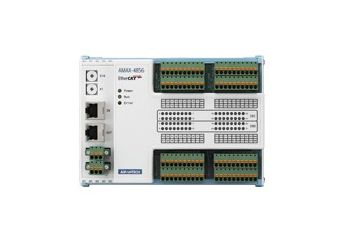

AMAX-4856
32-ch Isolated Digital Input and 32-ch Isolated Digital Output EtherCAT Remote I/O Module
Manufacturer: Advantech
Manufacturer: Advantech
- Suitable for EtherCAT networks
- 32-ch digital input and 32-ch digital output with 2,500 VDC isolation
- Wide input voltage range (10 ~ 30 VDC)
- Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
- Quick removable European type connector
- LED indicators for I/O status
- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
- Two Rotary switches for up to 256 slave IDs
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
AMAX-4856
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAMAX-4856-B32-ch DI&32-ch DO EtherCAT Remote I/O ModuleOut of stock Warranty: €0.00-- AMAX-4856-B32-ch DI&32-ch DO EtherCAT Remote I/O ModuleAvailability: Out of stockNet price:--
Description
AMAX-4856 is an industrial EtherCAT slave module equipped with the EtherCAT protocol. Its compact size and DIN-rail mount kit can install easily in a cabinet. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation circuits.
- Suitable for EtherCAT networks
- 32-ch digital input and 32-ch digital output with 2,500 VDC isolation
- Wide input voltage range (10 ~ 30 VDC)
- Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
- Quick removable European type connector
- LED indicators for I/O status
- Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
- Two Rotary switches for up to 256 slave IDs
Download
