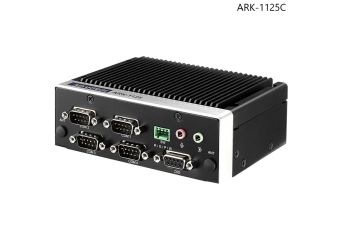

ARK-1125
Industrial mini PC with Intel Processor N-series N200 / Atom x7211E, up to 16G RAM
Manufacturer: Advantech
Manufacturer: Advantech
- Intel® Atom® x7211E SoC (1125C) or Intel® N-series N200 QC SoC (1125H)
- Up to 16G DDR5-4800 SO-DIMM RAM memory
- Foru serial ports (1125C)
- Dual HDMI independent display support 4K resolution (1125H)
- M.2 E Key, B Key i M Key (1125C) for storage and wireless module installation
- -30 ~ 60 °C extended operating temperature
- 12V lockable DC jack power input
- Advantech DeviceOn support
Price from €611.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-1125H-S0A1Intel N200 QC 1.0GHz w/HDMIx2 LAN x2 USB x4In stockWarranty: €674.00€829.02Login to check your price ARK-1125H-S0A1Intel N200 QC 1.0GHz w/HDMIx2 LAN x2 USB x4Availability:In stockNet price:€674.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-1125C-S0A1Intel Atom x7211E w/ COM x4 USB x4 HDMI LAN x1In stockWarranty: €611.00€751.53Login to check your price ARK-1125C-S0A1Intel Atom x7211E w/ COM x4 USB x4 HDMI LAN x1Availability:In stockNet price:€611.00
Description
Technical Specification
| ARK-1125C | ARK-1125H | |
| Processor | Atom x7211E, Dual core | N-series N200, Quad core |
| RAM | up to 16 GB DDR5 | up to 16 GB DDR5 |
| VGA (DSub) | - | - |
| HDMI | 1 | 2 |
| Audio | Line in, Line out | Line in, Line out |
| Gigabit Ethernet | 1 | 2 |
| 2,5" HDD | - | - |
| mSATA | - | - |
| M.2 | 1x M.2 2230 E key (PCIe x1), 1x M.2 2280 B key (SATA, PCIe x1), 1x M.2 2242 M key (SATA, PCIe x1) |
1x M.2 2230 E key (PCIe x1) 1x M.2 2280 B key (SATA, PCIe x1) |
| USB 3.2 | 2 | 2 |
| USB 2.0 | 2 | 2 |
| RS-232/422/485 | 4 | 2 |
| GPIO | 8-bit Programmable DIO | 8-bit Programmable DIO |
| CANBus | - | 2 |
| Slot miniPCIe | - |
- |
| TPM | on-board SLB9672XU2.0 FW15.22 | on-board SLB9672XU2.0 FW15.22 |
| Operating temp. | -30°C ~ +60°C | -30°C ~ +60°C |
Download
