DLT-V72 facelift

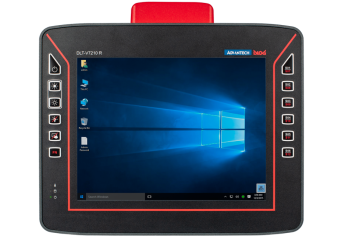

Rugged X86-Based Vehicle-Mounted Terminal 10.4“ / 12.1“ LCD / IP66 / Windows or Android

Manufacturer: Advantech
Manufacturer: Advantech
  • Intel® Atom™ E3845 quad-core, 1.91 GHz, with 4 GB RAM
  • 10.4/12.1" color TFT display, selection of projective capacitive (PCT) or resistive touch screen
  • Support latest 4G/LTE, BT 5.0, and WLAN standard and superior WiFi roaming capabilities
  • Full IP66 rating for water and dust resistance, and 5M3 certification for shock and vibration tolerance
  • Rugged and durable touchscreen with IK08-certified impact protection
  • Wide operating temperature range (-30 ~ 50 °C/-22 ~ 122 °F) to withstand extreme environments
  • Optional uninterruptible power supply via backup battery (supports up to 20 minutes operation)
  • Optional screen defroster, ideal for cold chain and cold storage applications
  • Certified with SOTI, Navis N4.3.6
  • Made in Germany

Product out of stock

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    DLT-V7210F-BTO
    Fully rugged Vehicle-Mounted Terminal
    Out of stock Warranty:
    €0.00
    -
    -
    DLT-V7210F-BTO
    Fully rugged Vehicle-Mounted Terminal
    Availability: Out of stock
    Net price:
    -
    -

Description

DLT-V72 Facelift series is a rugged vehicle-mounted terminal designed for logistics applications and to provide maximum system uptime. Powered by an Intel® Atom™ E3845 quad-core, 1.91 GHz, processor with 4 GB RAM, DLT-V72 Facelift series supports a wide operating temperature range (-30 ~ 50 °C/-22 ~ 122 °F) to withstand operation in extreme industrial environments (from hot and humid, to dry freezer environments). The Advantech low-profile antenna offers excellent transmission capabilities in a compact form factor. Meanwhile the touchscreen with flexible touch control ensures easy input and even supports gloved operation.



Technical Specification



Touchscreen in 2 variants

Resistive touchscreen with 12 front keys, available with defroster option

Projective capacitive multi touch (PCT) with 12 front keys

Display

10.4" XGA color TFT with 1024 x 768 resolution and 400 cd/m² brightness

DLT-V7212 12.1" XGA color TFT with 1024 x 768 resolution and 500 cd/m² brightness

Communication

WLAN IEEE 802.11 ac; optional with integrated diversity antenna or external antenna

WWAN (LTE, UMTS, HSPA+, GSM, GPRS, EDGE) (optional)

Bluetooth 5.0; optional

Power supply (internal)

12/24/48 VDC, nominal

Uninterruptable power supply (UPS), typ. 20 min power bridging; optional

Environment

IP protection class: IP66

Shock resistance of front: IK08 regarding IEC 62262

Relative humidity: 10 to 90 % at 40 °C, non-condensing

Vibration/ shock:
Class 5M3 regarding DIN EN 60721-3-5
MIL-STD 810G (US Highway Truck)

Operating temperature: -30 to +50 °C (-22 to +122 °F)

CPU

Intel® ATOM™ E3845 quad-core, 1.91 GHz, 4 GB RAM

Operating system

MS® Win 10 IoT, WE8S, WE 8.1 Ind Pro, WES 7, Win 7 Prof, Linux, IGEL Linux, Android

Certifications

Certification marks *
We offer you an individual certification service.
* Most common national approvals are available
