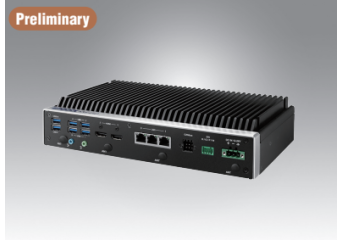

ARK-2251
Modular Fanless Box PC i3/i5i/7 13th gen., CANBus, iDoor
- Intel 13th Gen Intel® Core™ U-series 10 cores (2 P-cores and 8 E-cores) SoC
- 3x Intel GbE, 6x USB 3.1, 6x RS-232/422/485, 2x HDMI and 2x CANBus
- Dual Channel DDR5-4800 memory up to 64GB
- Support NVMe storage devices with PCIe x4
- 12-24V DC wide range power input
- -20-60°C wide operating temperature
- Internal expansions with mPCIe, M.2 E and M key, and USB 2.0
- Optional iDoor modules for IO expansion, TPM module and PoE module
- WISE-DeviceOn supported for quick AI deployment at scale
Price from €1,295.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-2251-S2A1Intel Rapter Lake i3 1315UE 1.2G +3GbE+6USB+6COMIn stockWarranty: €1,295.00€1,592.85Login to check your price ARK-2251-S2A1Intel Rapter Lake i3 1315UE 1.2G +3GbE+6USB+6COMAvailability:In stockNet price:€1,295.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-2251-S3A1Intel Rapter Lake i5 1335UE 1.3G +3GbE+6USB+6COMIn stockWarranty: €1,512.00€1,859.76Login to check your price ARK-2251-S3A1Intel Rapter Lake i5 1335UE 1.3G +3GbE+6USB+6COMAvailability:In stockNet price:€1,512.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddARK-2251-S7A1Intel Rapter Lake i7 1365UE 1.7G +3GbE+6USB+6COMIn stockWarranty: €2,063.00€2,537.49Login to check your price ARK-2251-S7A1Intel Rapter Lake i7 1365UE 1.7G +3GbE+6USB+6COMAvailability:In stockNet price:€2,063.00
Technical Specification
| ARK-2251 | ||
| Processor |
Core i3/i5/i7 13 gen. |
|
| RAM |
Max. 64 GB DDR5 4800 MHz |
|
| HDMI | 2 | |
| Gigabit Ethernet | 3 | |
| TPM | TPM 2.0 (Optional by AMO-I029) | |
| USB | 6x USB3.1, 1 x internal USB2.0 | |
| GPIO | 8-bit Programmable DIO | |
| CANBus | 2 | |
| Serial ports | 6x RS-232/422/485 | |
| M.2 | 2 (1x E key and 1x M key) | |
| Mini PCIe | 1x Full-size Mini PCIe | |
| mSATA | shared with mPCIe | |
| NVME | 1x M.2 M Key supporting NVME | |
| Power input | 12-24 VDC | |
| Working temp. | -20 ~ 60° C | |
