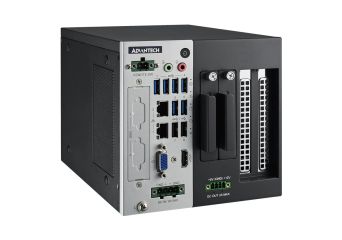

IPC-220

Compact Industrial Computer System with 10th Gen Intel® Core™ i CPU Socket (LGA 1200)

Manufacturer: Advantech
Manufacturer: Advantech
  • Intel® 10th Gen Core™ i CPU socket-type (LGA1200) with Intel® Q470E/ H420E chipset
  • 3 x independent displays (third display output (DP) via optional cable)
  • 2 x GigaLan and 6 x USB3.2
  • 2 x RS-232/422/485 and 2 x RS232 serial ports
  • 1 x NVMe M.2 (Q470E Only), 2 x 2.5" HDD/SSD, and 1 x mSATA
  • 19 ~ 24 VDC input power range
  • Support Power Out 12V/5V - 2A
  • Supports Advantech i-Door
  • Versatile LED for system status and alarm
Product out of stock

Free shipping from €500

Promocja cenowa na model HDR-15-5

Description

Compact Industrial Computer System with 10th Gen Intel® Core™ i CPU Socket (LGA 1200)

Technical Specification

Part Number IPC-220-20A1 PCE-2032-00A1 PCE-2132-00A1
Front I /O Interface
USB 2.0 - 2 2
USB 3.0 - 6 6
Serial Port  - 2xRS-232/422/485 2xRS-232/422/485
Environment
Operating Shock  10G (with 11ms duration ,half sine wave ) - -
Operating Vibration  1Grms(with HDD ),3Grms(with SSD ) - -
Graphics
Graphic Interface  - HDMI +VGA  HDMI +VGA
Chipset Integrated  - Integrated Intel HD Graphics  Integrated Intel HD Graphics
Miscellaneous  - - -
Control  Power Switch  Power Switch  Power Switch
Physical Characteristics
Dimensions (W x H x D ) 180x 230x 150mm  - -
Weight  3.1kg (6.82lb ) - -
Power
Power Input  19-24VDC - -
Power Type  ATX /AT  - -
Storage
CFast  - - -
HDD  2x 2.5"SSD /HDD Easy -Swap Bay  2x 2.5"SSD /HDD Easy -Swap Bay  2x 2.5"SSD /HDD Easy -Swap Bay
WatchDog Timer
Interval  Programmable 1~255sec  Programmable 1-255sec  Programmable 1~255sec
Output  System Reset  System Reset  System Reset
Ethernet
Controller  - LAN1 :Intel I219V ,LAN2 :Intel I210AT  LAN1 :Intel I219LM ,LAN2 :Intel I210AT
Memory
Max .Capacity  - up to 64GB (32GB per slot ) up to 64GB (32GB per slot )
Socket  - 2x 260-pin SO -DIMM  2x 260-pin SO -DIMM
Technology  - DDR4 2666MHz  DDR4 2666MHz
Processor System
CPU  - Intel Core i3 /i5 /i7  Intel Core i3 /i5 /i7
Chipset  - - -
Core Number  - 4/6/8/10 4/6/8/10
BIOS  - AMI SPI 256Mbit  AMI SPI 256Mbit
Frequency  - Based on Intel CPU spec  Based on Intel CPU spec
L3 Cache  - 8MB /6MB /4MB /3MB / 8MB /6MB /4MB /3MB /
Cooling
Air Filter  Yes  Yes  Yes
Expansion Interface
PCI Express x 16 1 1 -
PCI Express x 4 1 - -
PCI  - - -
