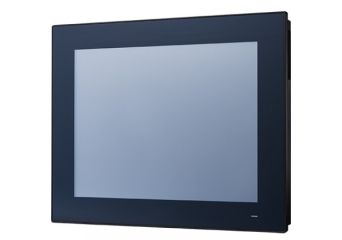

PPC-3150

The PPC-3150 is a 15” fanless panel PC that doesn’t only deliver high performance with an Intel quad-core Atom processor but also supports a wide operating temp.(-20~60°C) and wide range of power input (9~32VDC). It consolidates performance and reliability in one system. With multiple I/Os such as 4 x COM, 1 x USB3.0, 1x isolated RS-422/485 and dual Intel Gigabit Ethernet make it easier to connect to devices and be integrated into machine building industry. The PCI/PCIe expansion is allowed to add on field bus or proprietary card makes more application possibility.

• 15” TFT XGA LCD with resistive touchscreen
• Embedded Intel Atom Quad-Core E3845 1.91G
• Wide operating temp. range from -20~60°C
• Built-in one PCI or one PCIe x1 expansion slot
• Wide range power input for 9~32VDC
• Supports one internal 2.5” SATA HDD, one mSATA socket
• One isolated RS-422/485 with Autoflow, Dual Intel GbE
• One optional GPIO (8 channels, TTL level)
• No RED Certification
