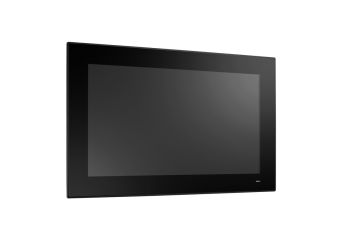

PPC-321W TGL

System

CPU

i3-1115G4E

i5-1145G7E

i7-1185G7E

Cores

Dual Core

Quad Core

Quad Core

Frequency

2,2 GHz; 3,90 GHz with turbo

2,6 GHz; 4,1 GHz with turbo

2,8 GHz; 4,4 GHz with turbo

Cache

6 MB

8 MB

12 MB

TDP

15

15

15

RAM

2 x SO-DIMM DDR4 3200 MHz (maks. 32 GB x 2)

Storage

1 x 2.5" SATA bay
1 x M.2 2280 M-Key bay (Co-lay SATA, for storage only)

LAN

1 x Intel I219LM controller; Speed: 10M / 100M / 1000M
1 x Intel I225LM controller; Speed: 10M / 100M / 1000M / 2500M

I/O

2 X Porty szeregowe: 1 X RS-232,

1 X RS-232/422/485 (Adjustable through BIOS)

3 X USB 3.2, 1 X USB 2.0, 2 X USB 2.0 (internal), 1 X Typ C (only USB)

1 X HDMI1.4

1 X TPM 2.0

Speaker

2 X 1 W

Expansion

1 x M.2 2230 E-key for wireless card

Watchdog Timer

255 timer levels, set up by software

Physical

Dimensions

558.4 x 349.8 x 62.2 mm (21.9 x 13.7 x 2.4 in)

Characteristics

Weight

6.6 kg (14.6 lb)

OS Support

OS Support

Microsoft Windows 10 (64-bit), Windows 10 IOT LTSC, Linux

Power Consumption

Input Voltage

12 - 30 VDC

Power Consumption

56W (Burn-in test in Windows 10 64-bit)

LCD

Display Type

21,5" FHD LCD (LED backlight)

Resolution

1920 X 1080

Viewing Angle

89 (left), 89 (right), 89 (up), 89 (down)

Luminance(cd/m2)

250

Contrast Ratio

100

Backlight Lifetime

50 000 h (min.)

Touchscreen

Touch Type

10-point multi-touch projected capacitive

Light Transmission

90% + 3%

Controller

USB interface

Environment

Operating Temperature

-10 - 50 °C (14~122 °F)

Storage Temperature

-20 - 60 °C (-4 - 140 °F)

Relative Humidity

10 - 95% @ 40 °C (non-condensing)

Shock

Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27

Vibration

Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64

EMC

CE, FCC klasa B, BSMI, VCCI, UKCA

Certyfikacje

CB, UL, CCC, BSMI, UKCA

Front Panel Protection

IP66 compliant
