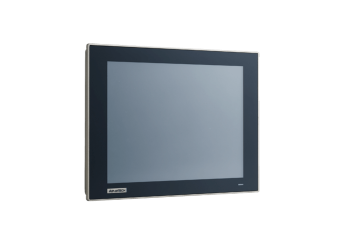

TPC-312

12.1" touch panel computer, XGA TFT LED LCD, Intel Core i3/ i5/ i7 , built-in 8GB DDR4 RAM

Manufacturer: Advantech
Manufacturer: Advantech
  • Industrial-grade 12.1 XGA TFT LCD with 50K lifetime and LED backlight
  • 8th Gen. Intel Core i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
  • Dual channel memory slots support up to 64G in total
  • Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
  • True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
  • Support expansion via Full-size Mini PCIe and two M.2 slots (NVMe, 5G)
  • Diverse system I/O and isolated digital I/O via iDoor technology
  • Support fieldbus protocols/GPS/GPRS/Wi-Fi capabilities via iDoor technology
  • Support TPM2.0 hardware security
Price from €1,852.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €500

See 3 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    TPC-312-R833A
    12" XGA Touch Panel PC with Core i3 CPU, 8G RAM
    Out of stock Warranty: 24 months
    €1,852.00
    €2,277.96
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    TPC-312-R853A
    12" XGA Touch Panel PC with Core i5 CPU, 8G RAM
    Out of stock Warranty: 24 months
    €2,154.00
    €2,649.42
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    TPC-312-R873A
    12" XGA Touch Panel PC with Core i7 CPU, 8G RAM
    Out of stock Warranty: 24 months
    €2,456.00
    €3,020.88
    Login to check your price

Technical Specification

TPC-315 (EN) TPC-315-R833A TPC-315-R853A TPC-315-R873A TPC-315-R833A
Environment
Ingress Protection  Front Panel IP66 Front Panel IP66 Front Panel IP66 Front Panel IP66
Operating Temperature -10~55 °C (14~131 °F) -10~55 °C (14~131 °F) -10~55 °C (14~131 °F) -10~55 °C (14~131 °F)
Storage Temperature -20~70 °C (-4~158 °F) -20~70 °C (-4~158 °F) -20~70 °C (-4~158 °F) -20~70 °C (-4~158 °F)
Vibration protection 1 Grms, random 1 Grms, random 1 Grms, random 1 Grms, random
Ethernet
Speed 10/100/1,000 Mbps 10/100/1,000 Mbps 10/100/1,000 Mbps 10/100/1,000 Mbps
General
Humidity (Operating) 10~95% RH (non-condensing) 10~95% RH (non-condensing) 10~95% RH (non-condensing) 10~95% RH (non-condensing)
Hardware
BIOS AMI UEFI AMI UEFI AMI UEFI AMI UEFI
Certification  CB, UL, CE, FCC Class A, CCC, BSMI CB, UL, CE, FCC Class A, CCC, BSMI CB, UL, CE, FCC Class A, CCC, BSMI CB, UL, CE, FCC Class A, CCC, BSMI
CPU 8th Gen. Intel Core i3-8145UE 2.20GHz Dual-Core 8th Gen. Intel Core i5-8365UE 1.60GHz Quad-Core 8th Gen. Intel Core i7-8665UE 1.70GHz Quad-Core 8th Gen. Intel Core i3-8145UE 2.20GHz Dual-Core
I/O 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot
LAN 2 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps
Memory 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot
OS Support Microsoft Windows 10 LTSC, Linux, Android Microsoft Windows 10 LTSC, Linux, Android Microsoft Windows 10 LTSC, Linux, Android Microsoft Windows 10 LTSC, Linux, Android
Power Consumption 41.06 W @ 24 VDC 41.06 W @ 24 VDC 41.06 W @ 24 VDC 41.06 W @ 24 VDC
Storage 1 x SATA M.2 SSD slot (2280 M-Key);
1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B k
1 x SATA M.2 SSD slot (2280 M-Key);
1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B k
1 x SATA M.2 SSD slot (2280 M-Key);
1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B k
1 x SATA M.2 SSD slot (2280 M-Key);
1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B k
Watchdog Timer 15~255 s 15~255 s 15~255 s 15~255 s
I/O Interface
Audio Line-Out, Microphone Line-Out, Microphone Line-Out, Microphone -
Displays 1 x DP 1 x DP 1 x DP 1 x DP
Expansion 1 x Full-size mPCIe Slot, 1 x SIM card Slot 1 x Full-size mPCIe Slot, 1 x SIM card Slot 1 x Full-size mPCIe Slot, 1 x SIM card Slot 1 x Full-size mPCIe Slot, 1 x SIM card Slot
Serial Ports 2 x RS-232/422/485 2 x RS-232/422/485 2 x RS-232/422/485 2 x RS-232/422/485
LCD Display
Backlight Life (hrs) 50000 50000 50000 50000
Display Size  12.1" 12.1" 12.1" 12.1"
Luminance (cd/m2) 300 300 300 300
Max. Resolution 1024 x 768 1024 x 768 1024 x 768 1024 x 768
Viewing Angle (H/V°) 178/178 178/178 178/178 178/178
Mechanical
Dimension (W x H x D) 311.8 x 238 x 67 mm 311.8 x 238 x 67 mm 311.8 x 238 x 67 mm 311.8 x 238 x 67 mm
Enclosure Die-cast aluminum alloy Die-cast aluminum alloy Die-cast aluminum alloy Die-cast aluminum alloy
Mounting Stand, Wall, VESA, Panel Stand, Wall, VESA, Panel Stand, Wall, VESA, Panel Stand, Wall, VESA, Panel
Weight (Net) 4.1 kg (9.04 lb) 4.1 kg (9.04 lb) 4.1 kg (9.04 lb) 4.1 kg (9.04 lb)
Touchscreen
Touch type 5-wire resistive 5-wire resistive 5-wire resistive 5-wire resistive
