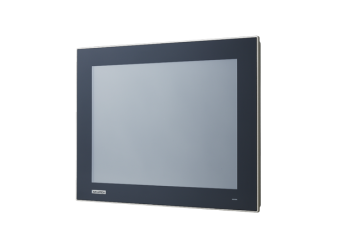

TPC-315
Panel computer 15", touchpad XGA TFT LED LCD, Intel Core i3/ i5/ i7 , built-in 8GB DDR4 RAM
- Industrial-grade 15" XGA TFT LCD with 70K lifetime and LED backlight
- Embedded 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor
- Built-in 8 GB DDR4 SO-DIMM
- Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Supports expansion via Full-size Mini PCIe and NVMe
- Diverse system I/O and isolated digital I/O via iDoor technology
- Supports fieldbus protocols via iDoor technology
- No power supply, disk and operating system
Price from €2,094.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTPC-315-R833B15" XGA Touch Panel PC with Core i3 CPU, 8G RAMIn stockWarranty: €2,094.00€2,575.62Login to check your price TPC-315-R833B15" XGA Touch Panel PC with Core i3 CPU, 8G RAMAvailability:In stockNet price:€2,094.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddTPC-315-R853B15" XGA Touch Panel PC with Core i5 CPU, 8G RAMOut of stock Warranty: €2,222.00€2,733.06Login to check your price TPC-315-R853B15" XGA Touch Panel PC with Core i5 CPU, 8G RAMAvailability: Out of stockNet price:€2,222.00
Technical Specification
| TPC-315 (EN) | TPC-315-R833A | TPC-315-R853A | TPC-315-R873A | TPC-315-R853AO |
| Environment | ||||
| Ingress Protection | Front Panel IP66 | Front Panel IP66 | Front Panel IP66 | Front Panel IP66 |
| Operating Temperature | -10~55 °C (14~131 °F) | -10~55 °C (14~131 °F) | -10~55 °C (14~131 °F) | -10~55 °C (14~131 °F) |
| Storage Temperature | -20~70 °C (-4~158 °F) | -20~70 °C (-4~158 °F) | -20~70 °C (-4~158 °F) | -20~70 °C (-4~158 °F) |
| Vibration protection | 1 Grms, random | 1 Grms, random | 1 Grms, random | 1 Grms, random |
| Ethernet | ||||
| Speed | 10/100/1,000 Mbps | 10/100/1,000 Mbps | 10/100/1,000 Mbps | 10/100/1,000 Mbps |
| General | ||||
| Humidity (Operating) | 10~95% RH (non-condensing) | 10~95% RH (non-condensing) | 10~95% RH (non-condensing) | 10~95% RH (non-condensing) |
| Hardware | ||||
| BIOS | AMI UEFI | AMI UEFI | AMI UEFI | AMI UEFI |
| Certification | CB, UL, CE, FCC Class A, CCC, BSMI | CB, UL, CE, FCC Class A, CCC, BSMI | CB, UL, CE, FCC Class A, CCC, BSMI | CB, UL, CE, FCC Class A, CCC, BSMI |
| CPU | 8th Gen. Intel Core i3-8145UE 2.20GHz Dual-Core | 8th Gen. Intel Core i5-8365UE 1.60GHz Quad-Core | 8th Gen. Intel Core i7-8665UE 1.70GHz Quad-Core | 8th Gen. Intel Core i5-8365UE 1.60GHz Quad-Core |
| I/O | 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot | 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot | 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot | 1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot |
| LAN | 2 x 10/100/1000 Mbps | 2 x 10/100/1000 Mbps | 2 x 10/100/1000 Mbps | 2 x 10/100/1000 Mbps |
| Memory | 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot | 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot | 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot | 1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot |
| OS Support | Microsoft Windows 10 LTSC, Linux, Android | Microsoft Windows 10 LTSC, Linux, Android | Microsoft Windows 10 LTSC, Linux, Android | Microsoft Windows 10 LTSC, Linux, Android |
| Power Consumption | 36.79 W @ 24 VDC | 36.79 W @ 24 VDC | 36.79 W @ 24 VDC | 36.79 W @ 24 VDC |
| Storage | 1 x SATA M.2 SSD slot (2280 M-Key); 1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key |
1 x SATA M.2 SSD slot (2280 M-Key); 1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key |
1 x SATA M.2 SSD slot (2280 M-Key); 1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key |
1 x SATA M.2 SSD slot (2280 M-Key); 1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key |
| Watchdog Timer | 15~255 s | 15~255 s | 15~255 s | 15~255 s |
| I/O Interface | ||||
| Audio | Line-Out, Microphone | Line-Out, Microphone | Line-Out, Microphone | - |
| Displays | 1 x DP | 1 x DP | 1 x DP | 1 x DP |
| Expansion | 1 x Full-size mPCIe Slot, 1 x SIM card Slot | 1 x Full-size mPCIe Slot, 1 x SIM card Slot | 1 x Full-size mPCIe Slot, 1 x SIM card Slot | 1 x Full-size mPCIe Slot, 1 x SIM card Slot |
| Serial Ports | 2 x RS-232/422/485 | 2 x RS-232/422/485 | 2 x RS-232/422/485 | 2 x RS-232/422/485 |
| LCD Display | ||||
| Backlight Life (hrs) | 70000 | 70000 | 70000 | 70000 |
| Display Size | 15" | 15" | 15" | 15" |
| Luminance (cd/m2) | 300 | 300 | 300 | 300 |
| Max. Resolution | 1024 x 768 | 1024 x 768 | 1024 x 768 | 1024 x 768 |
| Viewing Angle (H/V°) | 176/176 | 176/176 | 176/176 | 176/176 |
| Mechanical | ||||
| Dimension (W x H x D) | 383.2 x 307.3 x 66.5 mm | 383.2 x 307.3 x 66.5 mm | 383.2 x 307.3 x 66.5 mm | 383.2 x 307.3 x 66.5 mm |
| Enclosure | Die-cast aluminum alloy | Die-cast aluminum alloy | Die-cast aluminum alloy | Die-cast aluminum alloy |
| Mounting | Stand, Wall, VESA, Panel | Stand, Wall, VESA, Panel | Stand, Wall, VESA, Panel | Stand, Wall, VESA, Panel |
| Weight (Net) | 5.8 kg (12.79 lb) | 5.8 kg (12.79 lb) | 5.8 kg (12.79 lb) | 5.8 kg (12.79 lb) |
| Touchscreen | ||||
| Touch type | 5-wire resistive | 5-wire resistive | 5-wire resistive | 5-wire resistive |
