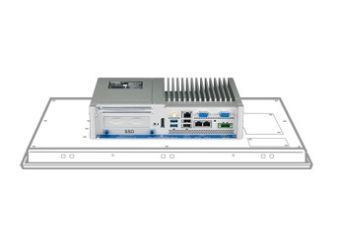

TPC-B500 (TPC-5000)

Computing Box Module with 6th Gen. Intel® Core™ /Celeron® Processor

Embedded Intel® Core™ i3-6100U/ i5-6300U/ i7-6600U processor
Built-in 4/8 GB SODIMM (depends on chosen model)
Supports two independent video interfaces with picture-in-picture function and up to 100m long signal transmission distance (iLINK technology)(iLINK technology)
Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" w/ robust 5-wire resistive touch)
PCIe, mini PCIe, M.2 and SSD expansion
No power supply, disk and operating system included

Price from €1,558.00 Net price

High price? Log in and buy cheaper

Product out of stock

Free shipping from €300

See 3 models

Promocja cenowa na model HDR-15-5

Product intended for professional use only

Models
Accessories
Description
Technical Specification
Download
Recommended Products

TPC-B500 (TPC-5000)

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TPC-B500-633BE Control Box Module, Intel i3-6100U, 8GB, iDoor	Out of stock	Warranty:		€1,558.00 €1,916.34 Login to check your price	Login to check your price	pcs.

TPC-B500-633BE

Control Box Module, Intel i3-6100U, 8GB, iDoor

Availability: Out of stock

Net price:

€1,558.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TPC-B500-653BE Control Box Module, Intel i5-6300U, 8GB, iDoor	Out of stock	Warranty:		€1,812.00 €2,228.76 Login to check your price	Login to check your price	pcs.

TPC-B500-653BE

Control Box Module, Intel i5-6300U, 8GB, iDoor

Availability: Out of stock

Net price:

€1,812.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TPC-B500-673BE Control Box Module, Intel i7-6600U, 8GB, iDoor	Out of stock	Warranty:		€2,150.00 €2,644.50 Login to check your price	Login to check your price	pcs.

TPC-B500-673BE

Control Box Module, Intel i7-6600U, 8GB, iDoor

Availability: Out of stock

Net price:

€2,150.00

Accessories

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
TPC-5000T-VMKE TPC Series VESA mount kit for FPM-D Series	Out of stock	Warranty:		€59.00 €72.57 Login to check your price	Login to check your price	pcs.

TPC-5000T-VMKE

TPC Series VESA mount kit for FPM-D Series

Availability: Out of stock

Net price:

€59.00

Description

TPC computing box modules are powered by 6th Gen Intel® Core™/Celeron® processors combined with an industrial-grade LED LCD module, providing compact and fanless control panel solutions that support high-performance computing. With a flexible modular design, they allow users to interchange video interfaces such as industrial monitors which can be used as an interface of two controllers simultaneously via the PiP (Picture-in-Picture) feature or expand the signal transmission distance to 100m via iLINK technology.

Intel® Core™ i3-6100U/ i5-6300U/ i7-6600U processor with 4/8 GB SODIMM
Supports two independent video interfaces with picture-in-picture function and up to 100m long signal transmission distance (iLINK technology)(iLINK technology)
Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" w/ robust 5-wire resistive touch)
PCIe, mini PCIe, M.2 and SSD expansion

Technical Specification

Series	TPC-5000
Module	TPC-B500-6C2AE	TPC-B500-633AE	TPC-B500-653AE	TPC-B500-673AE
CPU	Celeron 3955U 2,00 GHz	Core i3-6100U 2,30 GHz	Core i5-6300U 2,40 GHz	Core i7-6600U 2,60 GHz
Memory	4 GB (max. 8 GB)	8 GB (max. 32 GB)
HDD	1 x M.2 (2280) 1 x 2,5" SATA optional 1 x CFast (iDoor module required)
LAN	2 x Gigabit LAN (2 x Intel I210, 1 x Intel I219)
Expansion Slots	1 x PCIe half-size (max. 167,65 x 64,41 mm) 2 x miniPCIe full-size
I/O	1 x RS-232/422/485 1 x RS-232 2 x USB 3.0 2 x USB 2.0 1 x Audio line-out 1 x Display Port 1.2
Power	24 V_DC ±20%
Working temperature	0~60°C
Compatibility	Windows 10, Windows 7
