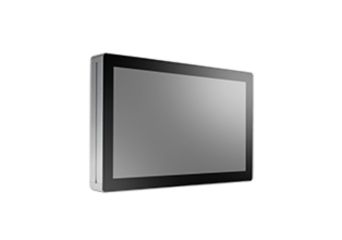

UTC-515J

15.6" Ubiquitous Touch Computer with Intel® Celeron® J6412

Manufacturer: Advantech
Manufacturer: Advantech
  • Low-power, fanless system design
  • Embedded Intel® Celeron® J6412 (515J)
  • Built-in 4 GB RAM
  • 15.6" monitor with 16:9 widescreen display
  • IP65-rated front panel for water and dust resistance
  • All-in-one aluminum extrusion design
  • Supports both landscape and portrait screen orientations
  • VESA 100 mm standard mounting holes for varied mounting demands
  • Side groove design for integrating peripherals
  • Support DeviceOn/iService software for remote device management
  • Power supply included
  • No disk and operating system included
Product out of stock

Free shipping from €300

Promocja cenowa na model HDR-15-5

Description

UTC-515 is an all-in-one computer with an Intel® Celeron® J6412 processor, widescreen LCD touch panel, and side grove design for integrating optional peripherals.

Technical Specification



UTC-515J

System

CPU

Intel® Celeron® J6412

RAM

DDR4-3200 up to 32GB

HDD

1 x 2.5 internal SATA HDD bay

Network (LAN)

2 x RJ-45; LAN1: Realtek RTL8111H, LAN2: Realtek RTL8111H

I/O

4 x USB3.2 Gen2 (10Gbps)

2 x GbE, LAN1: Intel i219LM, LAN2: Intel i210AT/IT

1 x HDMI / 1 x DP

1 x Audio Line-out 1 x Mic-in

2 x RS-232 COM (RS-422/485)

Expansion

1x E-Key for wireless module (Type: 2230) optional B-Key for LTE module

1x M-Key support SATA M.2 2242 module

Operating System

Operating System

Windows 10

Power Supply

Input Voltage

12-24VDC

LCD

Resolution

1366 x 768 (FHD 1920 x 1080 Optional)

Brightness (cd/m²)

400 cd/m²

Touchscreen

Type

Projected capacitive, Single point Analog Resistive 5-wires touch

Controller

USB interface

Environment

Operating Temperature

0 - 40°C

Relative Humidity

10 - 95% @ 40 °C (non-condensing)

Shock

Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27

Vibration

0,5 G

Front Panel Protection

IP65 rated/NEMA4 compliant
