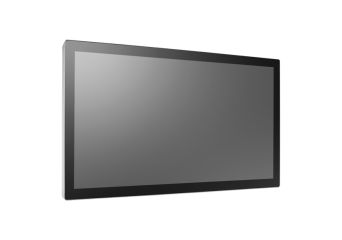

UTC-520I

21.5" All-in-One Touch Computer with Intel® Core™ i5-1145G7E Processor

Manufacturer: Advantech

Low-power, fanless system design
Embedded Intel® Core™ i5-1145G7E (UTC-520I)
Built-in 8 GB RAM
21.5" monitor with 16:9 widescreen display
IP65-rated front panel for water and dust resistance
All-in-one aluminum extrusion design
Supports both landscape and portrait screen orientations
VESA 100 mm standard mounting holes for varied mounting demands
Side groove design for integrating peripherals
Optional 400-nit LCD panel
Power supply included
No disk and operating system included

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5

Models
Description
Technical Specification
Download
Recommended Products

UTC-520I

Models

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
UTC-520IP-ATB0E 21.5" PCT.T/S with core i5-1145G7E, 8GB RAM	In stock	Warranty:		€2,407.00 €2,960.61 Login to check your price	Login to check your price	pcs.

UTC-520IP-ATB0E

21.5" PCT.T/S with core i5-1145G7E, 8GB RAM

Availability:

In stock

Net price:

€2,407.00

Model	Availability	Warranty	Wishlist	Your Price	Your Price	Items Quantity Add
UTC-520IR-ATB0E 21.5" Res.T/S with core i5-1145G7E, 8GB RAM	Out of stock	Warranty:		€2,470.00 €3,038.10 Login to check your price	Login to check your price	pcs.

UTC-520IR-ATB0E

21.5" Res.T/S with core i5-1145G7E, 8GB RAM

Availability: Out of stock

Net price:

€2,470.00

Description

UTC-520 is an all-in-one computer with an Intel® Core™ i5-1145G7E processor, widescreen LCD touch panel, and side grove design for integrating optional peripherals. Designedfor diverse self-service, content broadcasting, and interactive signage applications, UTC-520 systems can be deployed in a wide range of usage scenarios for enhancing enhancecustomer satisfaction, furthering brand equity, and maximizing business profits. Advantech’s DeviceOn/iServiceis a next-generation unified device management solution based on theWISE-DeviceOnplatform. Moreover, Advantech DeviceOn/iService Software is a next-generation unified device management unified device management solution based on theWISE-DeviceOn platform. With support for batch operations and multi-device control, DeviceOn/iService enables easy device configuration and deployment for convenient remotedevice management

Technical Specification

	UTC-520I-PE	UTC-520IP-ATB0E	UTC-520IR-ATB0E
System
CPU	Intel® Core™ i5-1145G7E
RAM	8G DDR4, max do 64GB
HDD	1 x 2.5 internal SATA HDD bay
Network (LAN)	2 x Gigabit Ethernet (Supports Wake on LAN)
I/O	2 x COM (RS-232) 4 x USB 3.2, 1 x USB Type C 1 x HDMI / 1 x DP 1 x Line-out 2 x 3W Speaker
Expansion	1 x M.2 E-Key 2230, 1 x M.2 B-Key 3042, 1 x M.2 M-Key 2280 (optional SATA)
OS Support
OS Support	Win 10 IoT Enterprise / Linux Ubuntu 20.04
Power Consumption
Input Voltage	12 ~ 24V, 7 A (84W ITE adapter)
LCD
Resolution	1920 x 1080
Brightness (cd/m²)	250 cd/m2 (optional 400 cd/m2)
Touchscreen
Type	Projected Capacitive Multi-touch	Projected Capacitive Multi-touch	5-wire resistive
Controller	USB interface
Environment
Operating Temperature	0 - 40°C
Relative Humidity	10 - 95% @ 40 °C (non-condensing)
Shock	Operating 10G peak acceleration (11ms duration), follow IEC 60068-2-27
Vibration	0,5 G
EMC/Safety	CB, UL, CCC, BSMI
Certificates	CE (RED Compliance), FCC, CB, UL, CCC,BSMI
