AB7308

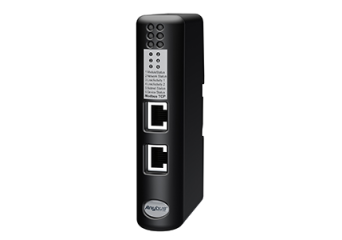

Anybus X-gateway CANopen Master Ethernet Modbus TCP 2 Port Slave
- Fast copying of cyclic I/O data between a CANopen and Modbus TCP network (5 ms)
- Full CANopen Master/Manager functionality, eliminates the need for an PLC controller on the CANopen network
- Connects up to 126 CANopen slave devices
- Proven and tested with all PLC manufacturers
- Easy CANopen configuration via the included Anybus Configuration Manager software. No programming required
- Possibility to build web pages displaying and controlling a factory floor process with data from the other connected network
- Fast, dynamic transfer of fieldbus data to e.g. SCADA/HMI/Enterprise level systems based on Microsoft Windows, via the included Anybus OPC server
- Robust stand-alone housing for use in harsh industrial environments
- Global free technical support and consultancy
Price from €1,221.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use onlyModels
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddAB7308CANopen Master - Modbus TCP SlaveOut of stock Warranty: €1,221.00€1,501.83Login to check your price AB7308CANopen Master - Modbus TCP SlaveAvailability: Out of stockNet price:€1,221.00
Description
The Anybus X-gateway CANopen provides a seamless connection between a Modbus TCP network and a secondary CANopen sub-network. This makes it possible to integrate CANopen devices into a Modbus TCP PLC system.
FAST COPYING OF I/O DATA
The X-gateway's primary function is fast transfer of cyclic I/O data between the two networks. I/O data from the Modbus TCP network is written into CANopen objects that can be mapped into CANopen PDOs and vice versa. The gateway acts as a full Master/Manager on the CANopen network and as a Server/Slave on the Modbus TCP network. The data transmission between the two networks is completely transparent with a maximum data capacity of 510 bytes in each direction.
EASY CONFIGURATION - NO PROGRAMMING REQUIRED!
CANopen configuration can easily be made through the included Anybus Configuration Manager CANopen software, or with any other standard CANopen configuration tool. No programming skills are needed.
Technical Specification
|
Dimensions |
120 mm x 75 mm x 27 mm |
| Weight |
150g |
| Operating temperature |
od -25 do 55°C |
| Power supply |
24 DC |
| Current consumption |
typical150 mA |
| Configuration port | USB (USB to CAN cable not included) |
| Configuration Switches | On-board for CANopen node address and baud rate setting |
| CANopen connector | D-sub 9 Male (Included) |
| Galvanic isolation | On both CAN and BUS/Ethernet side |
| Mechanical rating | IP20, NEMA rating 1 |
| Mounting | DIN-rail (EN 50022 standard) |
| CANopen baudrate | 20 kbit/s - 1 Mbit/s |
|
Order Code |
AB7305 |
