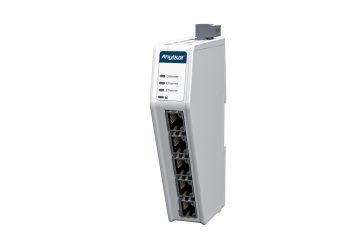

ABC4017 PROFINET IO-Device - Modbus TCP server
Price from €948.00 Net price
If placed an order by 3 p.m., the package will be shipped the same day In stock
Description
The Anybus Communicator Modbus TCP Client to Common Ethernet enables you to connect any device or equipment to PROFINET, EtherCAT, EtherNet/IP control systems. Anybus Communicators ensure reliable, secure, and high-speed data transfers. The intuitive user interface makes them incredibly easy to use.
High performance
Powered by the award-winning NP40 network processor, it enables instant transfer of up to 1500 bytes (network dependent) between networks, totaling 3000 bytes.
Instant data transfer
Instant data transfer lets you take advantage of high-speed industrial networks.
Endian conversion
The Communicator provides hardware-accelerated endian conversion (byte swap), saving processing time on the PLC.
Intuitive user interface
Use the intuitive web-based user interface to easily configure the Communicator via the drag-and-drop functionality or to analyze live data and generate support packages.
Cybersecurity
Despite advanced security, human error often causes breaches. Our Communicator’s physical security switch can lock configurations and block web interface access, enhancing security.
Optimized hardware design
The Communicator has forward-facing ports and is designed for IP20 and DIN-rail mounting, enabling you to install it with ease, close to connected devices, thereby reducing wiring requirements.
Diagnostics
The user interface displays real-time connection status and I/O data mapping for easy troubleshooting. Easily generate a support file containing all the necessary information.
5-year warranty
Thanks to carefully selected industrial components the Communicator operates reliably in harsh environments, ensuring uptime and longevity. Our confidence in quality is reflected in a 5-year warranty.
Life cycle management
HMS maintains every part of the Communicator, including network updates, throughout the product’s lifecycle.
Modbus TCP Client (master)
-
Transfer up to 1 500 bytes to and from Modbus TCP Client (3000 bytes total)
-
Connect up to 64 Modbus TCP Servers (slaves)
-
10 ms Modbus TCP Client cycle time
-
Visual I/O configuration for data mapping (drag and drop)
-
Transfer data cyclically or on data change
-
Monitor and control Modbus TCP transactions from control system with Live list and Data exchange control
-
Control how data transfer is initiated with network start-up options
-
Handle control system (PLC) offline situations with freeze, pause and safe value options
-
Ability to import Anybus legacy configuration file (from Anybus AB9xxx series gateways)
-
Dual RJ45 Ethernet ports with 10/100 Mbit full duplex
-
Daisy chaining with integrated switch
COMMON ETHERNET
-
Common Ethernet
-
Cover multiple protocols with a single gateway and reduce storage costs
-
Supports EtherNet/IP adapter, EtherCAT SubDevice
-
Transfer 1 448 bytes with EtherNet/IP, 1 486 bytes with EtherCAT SubDevice and 1 024 bytes with PROFINET to an
-
Download your protocol firmware from the product support page (free)
-
Load your protocol firmware via the gateway web-configuration interface
-
Dual RJ45 Ethernet ports with 10/100 Mbit full duplex
-
Daisy chaining with integrated switch
Technical Specification
GENERAL
| Dimensions (L x W x H) with serial and power connector | 98 x 27 x 144 mm 3.85 x 1.06 x 5,67 in |
| Weight | 150 grams, 0.33 lb |
| Buttons and switches | Reset button and security switch |
| LEDs | Gateway, Network 1 & Network 2 |
| IP rating | IP20 |
| Housing material | PC ABS, UL 94 VO |
| Mounting | DIN rail (35 * 7,5/15) |
ENVIRONMENT
| Operating temperature | -25 to 70° C, -13 to 158° F |
| Storage temperature | -40 to 85° C, -40 to 185° F |
| Relative humidity | 0-95% non condensing |
| Installation altitude | Up to 2 000 m |
POWER
| Input voltage | 12 - 30 VDC |
| Current consumption | Typical: 90 mA @ 24V (2.2 W) |
| Power connector | 3-pin plug with screw terminal |
| Protection | Reverse voltage protection and short circuit protection |
ETHERNET PORTS
| Ports | 2 x Ethernet ports per Ethernet protocol |
| Isolation | Galvanic isolation |
| Bitrate | 10/100 Mbit full duplex |
| Connector | RJ45 |
| Switch. | Dual port cut-through switch |
MODBUS TCP CLIENT
| Mode | Modbus TCP Client (Master) |
| Input data size | 1500 bytes |
| Output data size | 1500 bytes |
| Functions supported | Read Coils, Read Discrete Inputs, Read Holding Registers, Read Input Registers, Write Single Coil, Write Single Register, Write Multiple Coils, Write Multiple Registers, Read/Write Multiple Registers |
| Max numbers of transactions | 152 |
| Minimum cycle time | 10 ms |
| Max number of connections | 64 |
| Network start-up modes | Directly, Wait for data |
| Offline options | Freeze, pause or safe value |
| Live list | Monitor up to 152 transactions from control system (PLC) |
| Data exchange control | Control up to 152 transactions from control system (PLC) |
PROFINET
| Mode | PROFINET IO-Device (slave) |
| Class | A, B |
| Communication channels | Real Time Channel (RT) |
| Input data size | 1 024 bytes |
| Output data size | 1 024 bytes |
| Minimum cycle time | 1 ms |
| Max number of connections | 1 IO Controller Application Relationship + 2 Device Access Application Relationships |
| Netload class | Class III |
| I&M records | Manufacturer data (I&M0), Tag information (I&M1), Date/Time (I&M2), Description (I&M3) |
| SNMP | Available |
| GSDML File | Available |
| Certification | PI Certified |
ETHERNET/IP
| Mode | Adapter (slave) |
| Messages | Implicit and explicit |
| Max no of scanner connections | 1 input/output (exclusive owner) 3 listen only or input only |
| Input data size | 1 448 bytes (with large forward open) |
| Output data size | 1 448 bytes (with large forward open) |
| Network redundancy | Device Level Ring (DLR), beacon-based |
| Quick connect | Class B |
| Certification | ODVA Certified |
| Minimum cycle time | 1 ms for class 1 connections, 100 ms for class 3 connections |
| EDS File | Available |
ETHERCAT
| Mode | EtherCAT slave according to IEC 61158 Type 12 (ETG.1000) |
| Addressing modes | Logical, node, and position |
| Synchronization modes | Free run |
| Input data size | 1 486 bytes |
| Output data size | 1 486 bytes |
| Minimum cycle time | 100 μs |
| Features | Supports CANopen over EtherCAT (CoE) |
| ESI File | Available |
CERTIFICATIONS AND STANDARDS
| ATEX Zone 2 | II 3 G Ex ec IIC T4 Gc, UL 23 ATEX 3094X |
| UL hazardous location Class 1 Div 2 | IND.CONT.EQ FOR HAZ.LOC CLASS I, DIV 2 GP A,B,C,D T4, E203225 |
| CE | 2014/30/EU |
| KC |
R-R-ABJ-Communicator (Pending for EtherCAT MainDevice) |
| EMC |
EN 61000-6-2
|
CONFIGURATION
| Configuration software | Web based configuration |
| Configuration ports | Dedicated 10/100 Mbit RJ45 Ethernet configuration port and Ethernet ports |
SECURITY
| Secure boot | Ensures software authenticity |
| Security switch | Physical switch that enable/disable access to the web based configuration interface |
PRODUCT PACKAGING
| Content | Gateway, power connector, start-up guide, compliance information sheet |
| Box material | Cardboard |
MEAN TIME BETWEEN FAILURE
| MTBF | > 1 500 000 h, Telcordia Method I Case 3 at 30° C |
