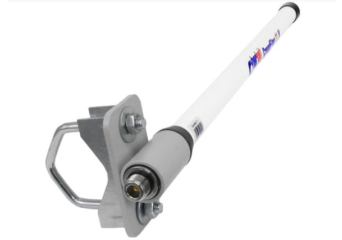

GrandEter 11 V
Professional omnidirectional antenna designed to build 5GHz base stations operating in vertical polarization, 11 dBi gain.
Manufacturer: Cyberbajt
Manufacturer: Cyberbajt
- Omnidirectional antenna
- Frequency range: 5,1 - 5,8 GHz
- Gain: 11 dBi
- Vertical polarization
- Connector: N/Female
- Mounting: to mast
Price from €33.00 Net price
High price? Log in and buy cheaper
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
GrandEter 11 V
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddGrandEter 11 V (2145)omnidirectional 5GHz 11dbi, N femaleOut of stock Warranty: €33.00€40.59Login to check your price GrandEter 11 V (2145)omnidirectional 5GHz 11dbi, N femaleAvailability: Out of stockNet price:€33.00
Description
The 5GHz Omni Directional antenna systems are constructed of UV-stable fiberglass. The antenna comes with an integral N Female connector and is designed to be pole mount only. The material used for a construction make it lightweight and resistant for outdoor conditions.
The antenna provides with 360 degrees at the beam width in the horizontal plane, it's cost effective base station antenna. OD 56-11V comes with N Female connector in standard, it's equipped with the stainless mast mount bracket.
Technical Specification
| Typ anteny | dookólna |
| Zakres częstotliwości | 5,1 - 5,8 GHz |
| Zysk energetyczny | 11 dBi |
| Polaryzacja | pionowa |
| Promieniowanie wsteczne | n/a dB |
| Kąt promieniowania w płaszczyźnie pionowej | 8 ° dla -3dB |
| Kąt promieniowania w płaszczyźnie poziomej | 360 ° dla -3dB |
| VSWR | 1 : 1,7 |
| Impedancja | 50 Ohm |
| Złącze | N/Żeńskie |
| Odporność na wiatr | 56 m/s |
| Montaż | do masztu |
| Średnica masztu/uchwytu | 38 - 51 mm |
| Wymiary | 22 x 480 mm |
| Wymiar opakowania | 55/10/5 cm |
| Waga całkowita | 500 g |
| Waga z uchwytem | 400 g |
| Waga bez uchwytów | 300 g |
| Gwarancja | 36 m-cy |
