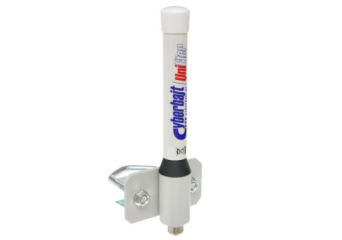

UniEter

Two-band omnidirectional antenna for work in both 2.4GHz and 5GHz bands

Manufacturer: Cyberbajt
Manufacturer: Cyberbajt
  • Omnidirectional
  • Frequency range: 2,4–2,5 GHz; 5,15–5,90 GHz
  • Vertical polarization
  • Gain: 5 dBi
  • Connector: N/Female
  • Mounting: to the mast
Price from €29.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 1 model

Promocja cenowa na model HDR-15-5

Models

Description

Omnidirectional antenna designed for use in 2.4 and 5 GHz bands. Offers 5 dBi gain in both 2.4 GHz and 5 GHz bands.

It has very good electrical parameters and modern, lightweight and resistant construction. The use of the highest quality low-loss teflon laminate , based on the same material which the radiant heater is made, provides an ideal match for both 2.4 and 5 GHz frequency bands.

With a modest gain, the antenna allows you to build high-performance mid-range base stations, avoiding / minimizing distractions in locations with a large number of other wireless networks.

The array of radiators was additionally varnished and placed under the cover of a very durable and low-damping plastic. This protects the antenna against the effects of weather conditions and ensures durability and stability of parameters during operation.

The solid handling attached to the antenna provide stability and high wind resistance.

Technical Specification

Typ anteny dookólna
Zakres częstotliwości 2,4–2,5 GHz;
5,15–5,90 GHz
Zysk energetyczny 2,4 GHz: 5 dBi;
5 GHz: 5 dBi
Polaryzacja pionowa
Promieniowanie wsteczne n/a dB
Kąt promieniowania w płaszczyźnie pionowej 2,4 GHz: 55 °
5 GHz: 45 °
Kąt promieniowania w płaszczyźnie poziomej 360 °
VSWR 1 : 2
Impedancja 50 Ohm
Złącze N/Żeńskie
Odporność na wiatr 56 m/s
Montaż do masztu
Średnica masztu/uchwytu 38 - 51 mm
Wymiary 22 x 220 mm
Waga całkowita 400 g
Waga z uchwytem 300 g
Waga bez uchwytów 200 g
Gwarancja 36 m-cy
