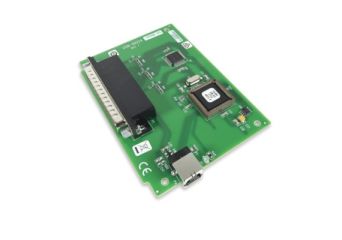

Seria USB-DIO24

USB digital I/O devices with 24 channels, 5.5 V input voltage, up to 64 mA sink and 15 mA source, and one 32-bit event counter.

Manufacturer: Digilent
Manufacturer: Digilent
  • The 37-pin connector provides 24 digital I/O, one counter, six ground, and two power connections.
  • The digital I/O port is configured as two 8-bit and two 4-bit ports based on an 82C55 mode 0 emulation. You can configure each port independently for input (default) or output.
  • The CTR signal is the input to the 32-bit external event counter.
  • USB-DIO24/37 digital type: 82C55
  • USB-DIO24H/37 digital type: 74FCT244 (output), 74ACT373 (input)
  • USB-DIO24/37 sink / source: 2.5mA
  • USB-DIO24/37 sink / source: 64 mA / 15 mA
  • 5.5 V max inout voltage
Price from €158.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 2 models

Promocja cenowa na model HDR-15-5



The USB-DIO24 Series of digital devices provide logic-level, bidirectional digital I/O and counter operation. Both devices feature 24 bits of digital I/O and one 32-bit external event counter. The devices are powered by the +5 volt USB supply. All I/O connections are made to a 37-pin connector. Software support includes DAQami, an out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW, Linux®, and Python.
