ELMATIC DELTA 321W EHL
Fanless 21.5” Panel PC, Intel Celeron J6412, 8GB RAM, 256GB SSD, Windows 11 IoT
- Compact , fanless design with solid aluminum alloy enclosure
- Projected Capacitive Touchscreen
- IP66-rated front panel
- 2x 2.5 GbE LAN
- 1x RS-232, 1x RS-232/422/485
- 2x USB 2.0, 2x USB 3.1
- 1x HDMI
- No power supply by default (see accessories)
Price from €2,071.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
ELMATIC DELTA 321W EHL
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddELMATIC DELTA 321W EHLPanelPC, 21,5" FHD, J6412, 8GB, 256GB, Win11IoT, PCTIn stockWarranty: €2,071.00€2,547.33Login to check your price ELMATIC DELTA 321W EHLPanelPC, 21,5" FHD, J6412, 8GB, 256GB, Win11IoT, PCTAvailability:In stockNet price:€2,071.00
Accessories
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddFSP096-AHAN3Desktop PSU 96W, 12 VDC, 2.5/5.5 plugIn stockWarranty: €27.00€33.21Login to check your price FSP096-AHAN3Desktop PSU 96W, 12 VDC, 2.5/5.5 plugAvailability:In stockNet price:€27.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddWall mount kit A800B for PPCIn stockWarranty: €64.00€78.72Login to check your price Wall mount kit A800B for PPCAvailability:In stockNet price:€64.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddPPC ARM VESA Standard (A-CLEVER)Out of stock Warranty: €159.00€195.57Login to check your price PPC ARM VESA Standard (A-CLEVER)Availability: Out of stockNet price:€159.00 -
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddStand For PPC SeriesIn stockWarranty: €146.00€179.58Login to check your price Stand For PPC SeriesAvailability:In stockNet price:€146.00
Description

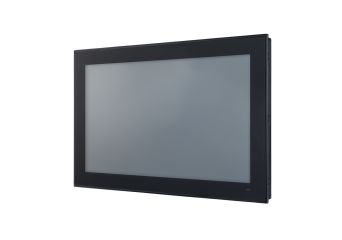

The ELMATIC DELTA 321W EHL is a fanless panel computer featuring a 21.5-inch touchscreen display with Full HD resolution (1920x1080 pixels), housed in a compact die-cast aluminum enclosure. The front panel is rated at IP66, ensuring protection against dust and water. The device is powered by a quad-core Intel Celeron J6412 processor, supported by 8 GB of RAM and a 256 GB SSD, providing high performance and reliability for industrial applications.
The computer offers extensive connectivity options, including two 2.5 GbE LAN ports, one RS-232 port, one RS-232/422/485 port, two USB 2.0 ports, two USB 3.1 ports, and one HDMI output. Its fanless design minimizes the risk of mechanical failures, while the Windows 11 IoT operating system ensures compatibility with modern applications.
Technical Specification
| Model | |||
| Model | ELMATIC DELTA 321W EHL | ||
| CPU | |||
| CPU | Intel Celeron J6412 | ||
| Memory | |||
| Memory | Built-in 8 GB SODDR4 | ||
| Storage | |||
| Slot 2,5" HDD | - | ||
| M.2 | Built-in 256GB M.2 2280 | ||
| Slot mSATA | - | ||
| Expansions | |||
| Slot M.2 | 1 x M.2 2230 E-key for wireless card | ||
| Slot miniPCIe | - | ||
| I/O | |||
| DisplayPort | - | ||
| HDMI | 1 | ||
| Audio | - | ||
| Gigabit Ethernet | 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226-LM) | ||
| USB 3.1 | 2 | ||
| USB 2.0 | 2 | ||
| Serial Ports | 1 x RS-232 1 x RS-232/422/485 (Adjustable through BIOS) |
||
| GPIO | - | ||
| CANbus | - | ||
| TPM | TPM 2.0 | ||
| Operating System | |||
| Operating System | Windows 11 IoT LTSC included | ||
| Environment | |||
| Working temperature | -10 ~ 50°C | ||
| LCD | |||
| Display Type | 21.5" TFT LCD (LED backlight) | ||
| Resolution | 1920 x 1080 | ||
| Luminance (cd/m2) | 250 | ||
| Contrast Ratio | 1000 | ||
| Touchscreen | |||
| Touch Type | ELO Projected Capacitive Multi-touch | ||
| Controller | USB interface | ||
