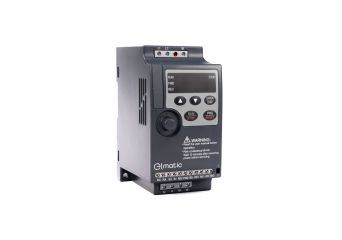

Scalar Control Inverter | 0.4kW-2.2kW 1X230VAC

EL1000

Manufacturer: Elmatic
Manufacturer: Elmatic

U/f scalar inverter with single-phase power supply 1 x 230V AC

  • Small size, low price
  • U/f control
  • RS485 port, Modbus RTU, ASCII protocols
  • 4 digital inputs,1 relay output, 1 analog input 0-10V, 0/4-20mA
  • Built-in PID controller
  • Multispeed function - up to 15 speed settings
  • Built-in LED display with potentiometer
  • Fly start
Price from €71.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €500

See 4 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    EL1000-00R4G2
    VFD EPD: 0,4kW,230VAC,1PH,V/F
    In stock
    Warranty: 24 months
    €71.00
    €87.33
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    EL1000-00R7G2
    VFD EPD: 0,75kW,230VAC,1PH,V/F
    In stock
    Warranty: 24 months
    €73.00
    €89.79
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    EL1000-01R5G2
    VFD EPD: 1,5kW,230VAC,1PH,V/F
    In stock
    Warranty: 24 months
    €75.00
    €92.25
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    EL1000-02R2G2
    VFD EPD: 2,2kW,230VAC,1PH,V/F
    In stock
    Warranty: 24 months
    €101.00
    €124.23
    Login to check your price

Description

Elmatic's inverters are three series of inverters designed for different applications and environments:

Many advanced features have been trimmed to reduce the price of the device. This makes all series suitable for low- and medium-level applications or machines. However, this does not affect the quality of daily operation, parameterization or performance of the drive. There are some interesting features that are sometimes only available in inverters twice as expensive. In simple EL1000 inverters with 230VAC single-phase power supply, these will include:

  • RS485 port; Modbus RTU, ASCII protocols - this gives the ability to control and diagnose through most automation devices, mainly PLCs;
  • Built-in PID controller;
  • Simple PLC;
  • Multispeed function - up to 15 speed settings;
  • Built-in LED display with potentiometer;
  • Fly start;
  • Free configuration software.

The EL1000 series inverter is:

  • Small size, low price;
  • U/f scalar control;
  • 4 programmable digital inputs;
  • 1 relay output;
  • 1 analog input 0-10V, 0/4-20mA;
  • Built-in potentiometer.

>> See EL1000 model with three-phase power supply 3x400VAC

Technical Specification

Power Input Voltage 170-240VAC, Single Phase
330-440VAC, Three Phase
Input Frequency 50/60 Hz
Supported Motors Asynchronous Induction Motors, Three Phase Input
0.1-400Hz
Overload Capacity 150%, 60 seconds
Control Control Method V/F control
Control Setting MODBUS, Analog, Digital, PID, Multispeed (15 speeds)
Communication MODBUS RTU RS-485
Input Analog Inputs  1 input 0-10V or 0-20mA
Digital Inputs 4 inputs
Output Analog Outputs -
Digital Outputs -
Relay Outputs 1 Programmable Multi-functional Output
Features 3-wire control
Connection of the braking resistor X
Built-in potentiometer
General Operating Temperature (-10)°C/14°F – 50°C/122°F (de-rated by 1% for every 1°C/2°F above 40°C/104°F)
Altitude < 1000m
Enclosure Rating IP20
Mounting Options Wall and Rail (<5.5kW)
Wall  (≥5.5kW)
Cooling Forced Air-cooling
