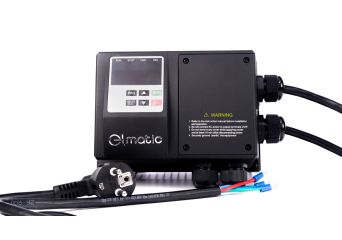

Scalar Control Inverter | IP65 | 0.75kW-2.2kW 1X230VAC

EDS

Manufacturer: Elmatic
Manufacturer: Elmatic

U/f scalar inverter with single phase power supply 1 x 230V AC and IP65

  • Dedicated to pump or fan applications
  • Direct mounting on motor or wall mounted
  • U/f scalar control
  • Counter input
  • Simple PLC function
  • RS485 port, Modbus RTU, ASCII protocols
  • 4 digital inputs, 2 relay outputs, 1 analog input 0-10V, 0/4-20mA
  • 'Energy saving' function
  • Built-in PID controller
  • Multispeed function - up to 15 speed settings
  • Built-in LED display
  • Reinforced housing, IP65
Price from €146.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €300

See 3 models

Promocja cenowa na model HDR-15-5

Scalar Control Inverter | IP65 | 0.75kW-2.2kW 1X230VAC

Scalar Control Inverter | IP65 | 0.75kW-2.2kW 1X230VAC

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    EDS0007T2B-C
    Falownik EPD: 0,75kW,230VAC,1PH,F&P,EMC
    In stock
    Warranty:
    €146.00
    €179.58
    Login to check your price
    EDS0007T2B-C
    Falownik EPD: 0,75kW,230VAC,1PH,F&P,EMC
    Availability:
    In stock
    Net price:
    €146.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    EDS0015T2B
    Falownik EPD: 1,5kW,230VAC,1PH,F&P
    Out of stock Warranty:
    €158.00
    €194.34
    Login to check your price
    EDS0015T2B
    Falownik EPD: 1,5kW,230VAC,1PH,F&P
    Availability: Out of stock
    Net price:
    €158.00
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    EDS0022T2B
    Falownik EPD: 2,2kW,230VAC,1PH,F&P
    Out of stock Warranty:
    €172.00
    €211.56
    Login to check your price
    EDS0022T2B
    Falownik EPD: 2,2kW,230VAC,1PH,F&P
    Availability: Out of stock
    Net price:
    €172.00

Description

Elmatic's inverters are three series of inverters designed for different applications and environments:

Many advanced features have been trimmed to reduce the price of the device. This makes all series suitable for low- and medium-level applications or machines. However, this does not affect the quality of daily operation, parameterization or performance of the drive. There are some interesting features that are sometimes only available in inverters twice as expensive. In enhanced EDS inverters with 230VAC single-phase power supply, these will include:

  • RS485 port, Modbus RTU, ASCII protocols - this gives the ability to control and diagnose through most automation devices, mainly PLCs;
  • Built-in PID controller;
  • Simple PLC;
  • Multispeed function - up to 15 speed settings;
  • Volatile start;
  • 'Energy saving' function;
  • Free configuration software.

The EDS series inverter is:

  • Direct motor mounting or wall mounting;
  • U/f scalar control;
  • 4 programmable digital inputs (from 3.7kW 6 inputs);
  • 2 relay outputs;
  • 1 analog input 0-10V, 0/4-20mA;
  • Reinforced housing, IP65.

>> See EDS model with three-phase power supply 3x400VAC

Technical Specification

Power Input Voltage 170-240VAC, Single Phase
330-440VAC, Three Phase
Input Frequency 50/60 Hz
Supported Motors Asynchronous Induction Motors, Three Phase Input
0.1-400Hz
Overload Capacity 150%, 60 seconds
Control Control Method V/F control, Space vector control
Control Setting MODBUS, Analog, Digital, PID, Multispeed (15 speeds)
Communication MODBUS RTU RS-485
Input Analog Inputs  1 input 0-10V or 0-20mA
Digital Inputs Up to 6:
4 inputs ≤2.2kW,
6 inputs available from >2.2kW
Output Analog Outputs -
Digital Outputs -
Relay Outputs Up to 2:
2 Programmable Multi-functional Output Normaly Open
1 output (normaly open and normaly close) available from >5.5kW
Features 3-wire control X
Connection of the braking resistor X
Built-in potentiometer X
General Operating Temperature (-10)°C/14°F – 50°C/122°F (de-rated by 1% for every 1°C/2°F above 40°C/104°F)
Altitude < 1000m
Enclosure Rating IP65
Mounting Options Wall
Engine cover
Cooling Forced Air-cooling
