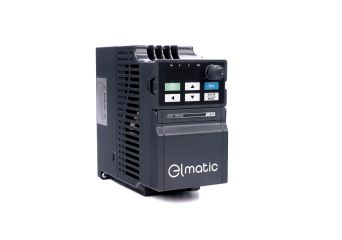

Vector Control Inverter | 0.4kW-3.7kW 1X230VAC

ED2200

Manufacturer: Elmatic
Manufacturer: Elmatic

Vector inverter with single-phase power supply 1 x 230V AC

  • Compact design, simple operation;
  • Sensorless vector control and U/f control;
  • Simple PLC function;
  • RS485 port, Modbus RTU protocol;
  • Wall mounting;
  • 6 digital inputs, 2 relay outputs, 1 analog input 0-10V, 0/4-20mA;
  • Built-in PID controller;
  • Multispeed function - up to 15 speed settings;
  • Built-in LED display
Price from €102.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €500

See 6 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2200-00R4G
    VFD EPD: 0,4kW,230VAC,1PH,Vector
    In stock
    Warranty: 24 months
    €102.00
    €125.46
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2200-0R75G
    VFD EPD: 0,75kW,230VAC,1PH,Vector
    In stock
    Warranty: 24 months
    €107.00
    €131.61
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2200-01R1G
    VFD EPD: 1,1kW,230VAC,1PH,Vector
    In stock
    Warranty: 24 months
    €109.00
    €134.07
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2200-01R5G
    VFD EPD: 1,5kW,230VAC,1PH,Vector
    In stock
    Warranty: 24 months
    €112.00
    €137.76
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2200-02R2G
    VFD EPD: 2,2kW,230VAC,1PH,Vector
    In stock
    Warranty: 24 months
    €140.00
    €172.20
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2200-03R7G
    VFD EPD: 3,7kW,230VAC,1PH,Vector
    In stock
    Warranty: 24 months
    €152.00
    €186.96
    Login to check your price

Description

Elmatic's inverters are three series of inverters designed for different applications and environments:

Many advanced features have been trimmed to reduce the price of the device. This makes all series suitable for low- and medium-level applications or machines. However, this does not affect the quality of daily operation, parameterization or performance of the drive. There are some interesting features that are sometimes only available in inverters twice as expensive. In advanced ED2000 inverters with 230VAC single-phase power supply, these will include:

  • RS485 port, Modbus RTU, ASCII protocols - this gives the ability to control and diagnose through most automation devices, mainly PLCs;
  • Built-in PID controller;
  • Simple PLC;
  • Multispeed function - up to 15 speed settings;
  • 'Energy saving' function;
  • Free configuration program.

The ED2000 series inverter is:

  • Sensorless vector control or U/f scalar control;
  • Compact housing, simple operation;
  • 6 programmable digital inputs;
  • 2 relay outputs;
  • 1 analog input 0-10V, 0/4-20mA;
  • Built-in LCD display and potentiometer;
  • Wall mounting.

>> See ED2000 model with three-phase power supply 3x400VAC

Technical Specification

Power Input Voltage 170-240VAC, Single Phase
330-440VAC, Three Phase
Input Frequency 50/60 Hz
Supported Motors Asynchronous Induction Motors, Three Phase Input
0.1-320Hz
Overload Capacity HD: 150% by 60s; 180% by 3s
ND: 120% by 60s; 150% by 3s
Control Control Method Sensorless flux vector control (SFVC) ;
V/F control
Control Setting MODBUS, Analog, Digital, PID, Multispeed (15 speeds)
Communication MODBUS RTU RS-485
Input Analog Inputs  1 input 0-10V or 0-20mA
Digital Inputs 6 inputs (including 1 HDI 100kHz)
Output Analog Outputs 1 output 0-10V 0-20mA
Digital Outputs 1 Multi-function output terminal 48VDC/50mA
Relay Outputs 1 Programmable Multi-functional Output
Features 3-wire control
Connection of the braking resistor
Built-in potentiometer
General Operating Temperature (-10)°C/14°F – 50°C/122°F (de-rated by 1% for every 1°C/2°F above 40°C/104°F)
Altitude < 1000m
Enclosure Rating IP20
  Wall
Cooling Forced Air-cooling
