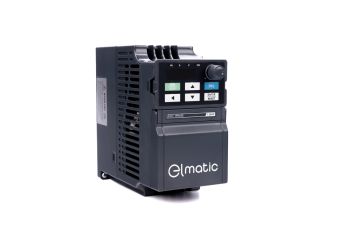

Vector Control Inverter | 0.4kW-90kW 3X400VAC

ED2400

Manufacturer: Elmatic
Manufacturer: Elmatic
  • Power range: from 0.4kW to 90kW
  • Input voltage: 3 x 400V AC
  • Output voltage: 3 x 400V AC
  • Short circuit, overload, phase failure protection
  • Control methods: Sensorless vector control, scalar U/f
Price from €122.00 Net price

High price? Log in and buy cheaper

In stock

Place the order by 12:00, the package will be shipped on the same day

Free shipping from €500

See 18 models

Promocja cenowa na model HDR-15-5

Models

  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-0R4G
    VFD EPD: 0,4kW,400VAC,3PH,Vector
    In stock
    Warranty: 24 months
    €122.00
    €150.06
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-0R75G
    VFD EPD: 0,75kW,400VAC,3PH,Vector
    Out of stock Warranty: 24 months
    €122.00
    €150.06
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-01R5G
    VFD EPD: 1,5kW,400VAC,3PH,Vector
    In stock
    Warranty: 24 months
    €127.00
    €156.21
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-02R2G
    VFD EPD: 2,2kW,400VAC,3PH,Vector
    Out of stock Warranty: 24 months
    €140.00
    €172.20
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-03R7G/5R5P
    VFD EPD: 3,7kW,400VAC,3PH,Vector
    In stock
    Warranty: 24 months
    €165.00
    €202.95
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-05R5G
    VFD EPD: 5,5kW,400VAC,3PH,Vector
    In stock
    Warranty: 24 months
    €190.00
    €233.70
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-07R5G/11P
    VFD EPD: 7,5kW,400VAC,3PH,Vector
    In stock
    Warranty: 24 months
    €249.00
    €306.27
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-11G/15P
    VFD EPD: 11kW,400VAC,3PH,Vector
    In stock
    Warranty: 24 months
    €300.00
    €369.00
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-15G18.5P
    VFD EPD: 15kW,400VAC,3PH,Vector
    In stock
    Warranty: 24 months
    €394.00
    €484.62
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-18.5G22P
    VFD EPD: 18,5kW,400VAC,3PH,Vector
    In stock
    Warranty: 24 months
    €457.00
    €562.11
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-22G30P
    VFD EPD: 22kW,400VAC,3PH,Vector
    Out of stock Warranty: 24 months
    €522.00
    €642.06
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-30G37P
    VFD EPD: 30kW,400VAC,3PH,Vector
    Out of stock Warranty: 24 months
    €685.00
    €842.55
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-37G45P
    VFD EPD: 37kW,400VAC,3PH,Vector
    Out of stock Warranty: 24 months
    €814.00
    €1,001.22
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-45G55P
    VFD EPD: 45kW,400VAC,3PH,Vector
    Out of stock Warranty: 24 months
    €1,144.00
    €1,407.12
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-55G
    VFD EPD: 55kW,400VAC,3PH,Vector
    Out of stock Warranty: 24 months
    €1,220.00
    €1,500.60
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-75G90P
    VFD EPD: 75kW,400VAC,3PH,Vector
    Out of stock Warranty: 24 months
    €1,652.00
    €2,031.96
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    ED2400-90G110P
    VFD EPD: 90kW,400VAC,3PH,Vector
    Out of stock Warranty: 24 months
    €2,032.00
    €2,499.36
    Login to check your price
  • ModelAvailabilityWarrantyWishlist
    Your Price
    Your Price
    EDE0004T4B
    VFD EPD: 0,4kW,400VAC,3PH,F&P
    In stock
    Warranty: 24 months
    €122.00
    €150.06
    Login to check your price

Description

Elmatic's inverters are three series of inverters designed for different applications and environments:

Many advanced features have been trimmed to reduce the price of the device. This makes all series suitable for low- and medium-level applications or machines. However, this does not affect the quality of daily operation, parameterization or performance of the drive. There are some interesting features that are sometimes only available in inverters twice as expensive. In advanced ED2000 inverters with 3x400VAC three-phase power supply, this will include:

  • RS485 port, Modbus RTU, ASCII protocols - this gives the ability to control and diagnose through most automation devices, mainly PLCs;
  • Built-in PID controller;
  • Simple PLC;
  • Multispeed function - up to 15 speed settings;
  • 'Energy saving' function;
  • Free configuration program.

The ED2000 series inverter is:

  • Sensorless vector control or U/f scalar control;
  • Compact housing, simple operation;
  • 6 programmable digital inputs;
  • 2 relay outputs;
  • 1 analog input 0-10V, 0/4-20mA;
  • Built-in LCD display and potentiometer;
  • Wall mounting.

>> See ED2000 model with 1x230VAC single-phase power supply

Technical Specification

Power Input Voltage 170-240VAC, Single Phase
330-440VAC, Three Phase
Input Frequency 50/60 Hz
Supported Motors Asynchronous Induction Motors, Three Phase Input
0.1-320Hz
Overload Capacity HD: 150% by 60s; 180% by 3s
ND: 120% by 60s; 150% by 3s
Control Control Method Sensorless flux vector control (SFVC) ;
V/F control
Control Setting MODBUS, Analog, Digital, PID, Multispeed (15 speeds)
Communication MODBUS RTU RS-485
Input Analog Inputs  1 input 0-10V or 0-20mA
Digital Inputs 6 inputs (including 1 HDI 100kHz)
Output Analog Outputs 1 output 0-10V 0-20mA
Digital Outputs 1 Multi-function output terminal 48VDC/50mA
Relay Outputs 1 Programmable Multi-functional Output
Features 3-wire control
Connection of the braking resistor
Built-in potentiometer
General Operating Temperature (-10)°C/14°F – 50°C/122°F (de-rated by 1% for every 1°C/2°F above 40°C/104°F)
Altitude < 1000m
Enclosure Rating IP20
  Wall
Cooling Forced Air-cooling
