Manufacturer: Elmatic
- Baudrate up to 115200 bps
- Dual SIM
- 4G LTE/3G/GPRS
- Wi-Fi module - AP/client mode
- Input voltage range from 9 to 36 VDC
- Dimensions: 82,8 mm x 90 mm x 28,8 mm
- Installation on DIN rail
- Aluminium housing
- IP30 protection
Price from €157.00 Net price
High price? Log in and buy cheaper
In stock
Place the order by 12:00, the package will be shipped on the same day
Free shipping from €300
Promocja cenowa na model HDR-15-5
Sparrow NW20
Models
-
Model Availability Warranty Wishlist Your PriceYour Price Items Quantity AddElmatic SPARROW NW20Industrial Cellular Router, LTE, 2xSIM, Ethernet, WiFi, serial interface 1 x RS-232 (3 PIN) + 1 x RS-485, DIN rail mounting, AC adapter and antennas includedRecommended
In stockWarranty: €157.00€193.11Login to check your price Elmatic SPARROW NW20Industrial Cellular Router, LTE, 2xSIM, Ethernet, WiFi, serial interface 1 x RS-232 (3 PIN) + 1 x RS-485, DIN rail mounting, AC adapter and antennas includedRecommended
Availability:In stockNet price:€157.00
Description

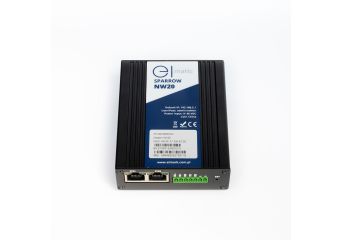

Sparrow NW20 is an industrial LTE router with Wi-Fi and VPN support at a smart price. As for interfaces, it has Ethernet, RS-232, RS-485, 2 SIM card slots and 2 antenna connectors.
Sparrow NW20 offers a lot of features known from more expensive models, like "Connection Manager" that controls connection status, VLANs, ACLs, Port Forwarding (NAT), DMZ, static routing, IP Passtrought, DDNS, SMS control, scheduled restart, GRE, and OpenVPN.
The aluminum design and simple construction make the Sparrow NW20 a robust and reliable device for industrial environments.
Applications for Elmatic Sparrow NW20 LTE Router
The functionality of the Sparrow NW20 router can be enhanced with dedicated extensions (applications). Below is the list of available ones:
AT over COM - An application that allows you to send AT commands to the router via the serial port.
AT over IP - Application sends AT commands to router via TCP/IP protocol.
AT over telnet - Allows you to send AT commands to the router via Telnet protocol.
DMVPN - Adds support for Dynamic Multipoint VPN (Cisco)
Dynamic Routing - Adds support for RIP, OSPF and BGP routing protocols.
IPsec - Adds IPsec technology for creating virtual private networks (VPNs)
L2TP - Adds support for L2TP protocol, or OSI Layer 2 tunneling.
PPTP - Adds support for PPTP protocol, a technology for creating virtual private networks.
SMS Gateway - Adds the ability to send SMS via predefined commands sent to the router's serial port.
VRRP - Adds support for Virtual Router Redundancy Protocol (VRRP).
The above applications can be downloaded at the bottom of this page, in the "Downloads" section.
Technical Specification
- Mobile interface
| Supported bands |
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28/B28A |
| SIM | 2 x socket SIM 1,8V / 3V |
| APN | Automatic completion APN |
| SIM failover | Conditions for automatic changeover: low signal, limited data transfer, network access denied, SMS |
| Controlling the amount of transferred data | Set up custom data limits for both cards SIM |
| Antennas aamount | 2 (MAIN + AUX) |
| Connector | SMA female |
- Ethernet
| Ports number | 1 x WAN, 1 x LAN or 2 x LAN |
| Port type | Auto 10/100 Mbps auto MDI / MDIX |
| Magnetic insulation | 1,5 kV |
- Wi-Fi
| Mode | IEEE 802.11b/g/n, Access Point(AP), Client |
| Transmission speed | 150 Mbps |
| Security | WPA, WPA2, WEP, CCMP, TKIP |
| Frequency band | 2.412 - 2.484 GHz (2.4 GHz ISM band) |
| Antennas | 1 x RP-SMA for Wi-Fi antenna |
- Serial ports
| Ports number | 1 x RS-232 (3-PIN) + 1 x RS-485 |
| Connector | Terminals |
| ESD Protection | ± 15 KV |
| Baudrate | 300 bps do 115200 bps |
- Network
| Routing | Static routing |
| Dynamic Routing (optional) | RIPv1 / v2 OSPF BGP |
| Network protocols | TCP, UDP, IPv4, ICMP, NTP, DNS, HTTP, HTTPS, ARP, PPP, DHCP, IP Passthrough |
| Connection manager | Ping, Timer Reboot ICMP |
| DHCP | Static and dynamic IP address allocation |
| DDNS | Some service providers supported, others can be configured manually |
| Firewall | Flexible access control to the router based on packet data: TCP UDP ICMP MAC address filtration |
| SMS | Configuration SMS, SMS gate, SMS notification |
- VPN
| OpenVPN | OpenVPN client support up to 5 OpenVPN tunnels |
| GRE | Layer 2 and layer3, support up to 5 GRE VPN tunnels |
| IPsec (optional) | IKEv1 IKEv2 support up to 5 IPsec VPN tunnels |
| DMVPN (optional) | Dynamic multi-point virtual private networks DMVPN |
| PPTP / L2TP (optional) | PPTP or Point to Point Tunneling Protocol and L2TP or layer 2 Tunneling Protocol (L2TP) |
- Monitoring and management
| Web GUI | Firmware update HTTP / HTTPS |
| Command line interface | SSHv2 and TELNET |
| Management platform | Central management platform |
- Power
| Connector | 7-pins female socket 3,5 mm |
| Input voltage range | 9 to 36 VDC |
| Energy consumption | Idle: 50 mA@12 V Data link: 200 mA (peak) @12 V |
- Physical Specification
| Watchdog | Integreted watchdog |
| LEDs | SYS NET USR RSSI x 3 (signal power) |
| Reset button | Reset button / factory reset |
| IP protection level | IP30 |
| Housing and weight | Aluminium, 220 g |
| Dimensions | 103.8 mm x 82.8 mm x 28.8 mm |
| Installation | DIN rail |
| Working temperature | -40°C to 75°C |
| Working humidity | 5% to 95% no condensation |
- Standards and certificates
| EMI | EN 55032:2012 class B |
| EMS |
IEC 61000-4-2 ESD: level 4 |
| Vibration | EN50155 |
