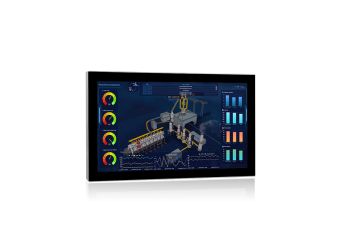

ELMATIC PIKE 21W PRO
Fanless 21.5" PC, Intel Core i5-1235U, 16GB RAM, 512GB RAM
- Full device IP69K
- Aluminum Alloy Shell
- Stand/Wall/VESA Mounting
- 1x HDMI
- 2x LAN (SP13 Waterproof RJ45 Connector)
- 2x USB 2.0 (SP13 Waterproof Connector)
- 1x COM (SP13 Waterproof Connector)
- 60W Power supply
- No operating system included (see accessories)
Product out of stock
Free shipping from €300
Promocja cenowa na model HDR-15-5
Product intended for professional use only
ELMATIC PIKE 21W PRO
Technical Specification
| Model | |||
| Model | ELMATIC PIKE 21W PRO | ||
| CPU | |||
| CPU | Intel Core i5-1235U | ||
| Memory | |||
| Memory | Built-in 16 GB SODDR4 | ||
| Storage | |||
| Slot 2,5" HDD | - | ||
| M.2 | Built-in 512GB M.2 2280 SSD | ||
| Slot mSATA | - | ||
| Expansions | |||
| Slot M.2 | 1 x M.2 ( Key-E, 2230, PCIe+USB, Wifi+BT) 1 x M.2 ( Key-B, 3042/3052, PCIe/ USB 3.0+USB2.0, 4G/5G ) 1 x M.2 ( Key-M, 2280, NVMe/ SATA, SSD) |
||
| SIM Socket | 1 | ||
| Slot miniPCIe | - | ||
| I/O | |||
| DisplayPort | - | ||
| HDMI | 1 | ||
| Audio | - | ||
| Gigabit Ethernet | 2 (SP13 Waterproof Giga LAN RJ45 Connector) | ||
| USB 3.1 | - | ||
| USB 2.0 | 2 (SP13 Waterproof Connector) | ||
| Serial Ports | 1x RS-232/422/485 ( SP13 Waterproof Connector) | ||
| GPIO | - | ||
| CANbus | - | ||
| Operating System | |||
| Operating System | Windows 11 IoT LTSC, Windows 10 IoT LTSC, Windows 11 PRO OEM (Optional) | ||
| Environment | |||
| Working temperature | -20 ~ 70°C | ||
| LCD | |||
| Display Type | 21.5" (16:9) | ||
| Resolution | 1920 x 1080 (FHD) | ||
| Luminance (cd/m2) | 400 | ||
| Contrast Ratio | 1000 | ||
| Touchscreen | |||
| Touch Type | 10 point PCAP | ||
